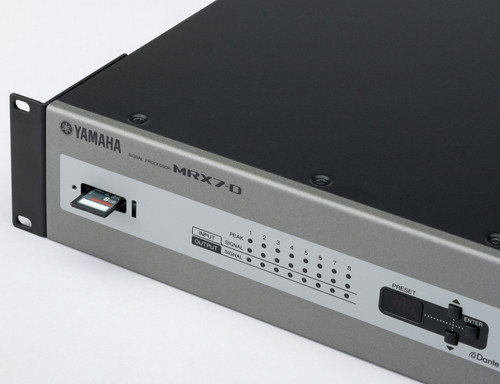

The Yamaha MRX7-D is a programmable Matrix Mixer/DSP. This builds on the MTX5-D, adding more processing horsepower and increasing the Dante Interface capacity. The MRX7-D also includes Dan Dugan automating with simple room-combining triggers and acoustic echo cancellation processors. It is perfect for sound system requirements for corporate conference rooms, educational facilities, shopping malls, and a variety of other environments are becoming increasingly large and complex. The MRX7-D offers outstanding control efficiency and flexibility for a broad spectrum of audio installations.
The MRX7-D features AEC (Acoustic Echo Canceller) for remote conferencing systems, automatic mixing for multiple microphone inputs, a speech privacy function that can mask conversations in hospital or corporate systems where confidential information must be protected, and more. The MRX7-D offers a comprehensive range of components that offer effective solutions for a variety of issues faced in today’s audio installations. Built-in Dante digital audio networking capability makes it easy to set up systems of just about any scale while significantly reducing cabling cost and labor. Dante capable devices can be added to the system at any time, allowing flexible reconfiguration and expansion as needed.
As the scale and control requirements of an audio system grow, the number of devices required and overall complexity increase correspondingly. With the MRX7-D and dedicated MTX-MRX Editor software, input and output devices can be quickly arranged via a software wizard and internal MRX7-D processing components can be combined as needed. One simple software application provides everything needed for comprehensive system design and management.
| Sampling frequency rate - Internal | 48kHz/44.1kHz |
|---|---|
| Signal delay | 1.9 msec (AD-DA @48kHz) |
| Total harmonic distortion | “0.05% (+4dBu, Gain:-6dB, 48kHz) 0.1% (+4dBu, Gain: +66dB, 48kHz)” |
| Frequency response | 20Hz to 20kHz: max:+0.5dB, min:-1.5dB |
| Dynamic range | 107dB (typ. Gain:-6dB) |
| Crosstalk | -100dB (@1kHz) |
| Heat dissipation | 55.9kcal/h max |
| Power requirements | AC100V-240V 50Hz/60Hz |
| Power consumption | 65W |
| Accessories | Included items = Power cord, Euroblock plugs x16, Euroblock plugs x2, Cable Ties, Manual |
| Others | Memory bank = PRESET: 50, Phantom Power = +48V |
| Dimensions (W x H x D) | 3.46" (88 mm) x 18.9" (480 mm) x 14.4" (366 mm) |
| Net Weight | 14.3 lbs (6.5 kg) |
