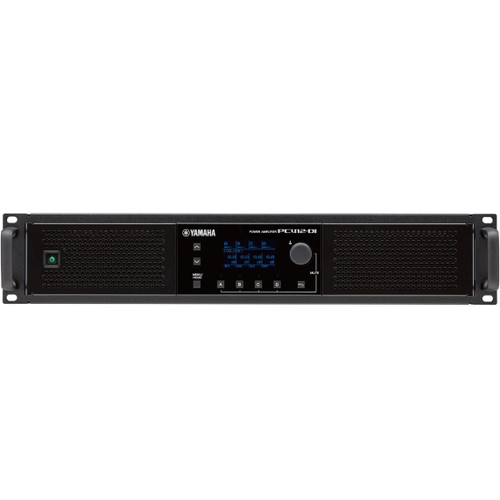

The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 1200W x 4 at 8Ω. Switchable for low and high impedance speaker systems.
| Output Power (1kHz, Non-clip, 20msec Burst, All channels driven) | 16Ω - 600W x 4 8Ω - 1200W x 4 4Ω - 1900W x 4 2Ω - 2500W x 4 8Ω (BRIDGE mode) - 3800W x 2 4Ω (BRIDGE mode) - 5000W x 2 |
|---|---|
| Amplifier Class | Class D, Single ended output |
| Total Harmonic Distortion | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven) |
| Frequency Response | +0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz) |
| Crosstalk | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) |
| S/N Ratio | 112dB (8Ω, Gain setting = 32dB, A-weighted) |
| Maximum Input Voltage | +28dBu |
| Input Impedance | 20kΩ (balanced) |
| Sampling Frequency Rate | 96kHz |
| Dimensions (H x W x D) | 3.46" (88 mm) x 18.90" (480 mm) x 20.79" (528 mm) |
| Weight | 35.3 lbs (16 kg) |
