Yamaha Restaurant Sound System with 4 VXS5 Wall Mount Speakers and MA2030a Mixer Amplifier
In this application the area is divided into two zones: the main seating area is zone 1, and the entrance, washrooms, and kitchen are zone 2. Volume can be individually adjusted for each zone, so Zone 1 can be adjusted according to the number of customers present while the Zone 2 volume remains constant.

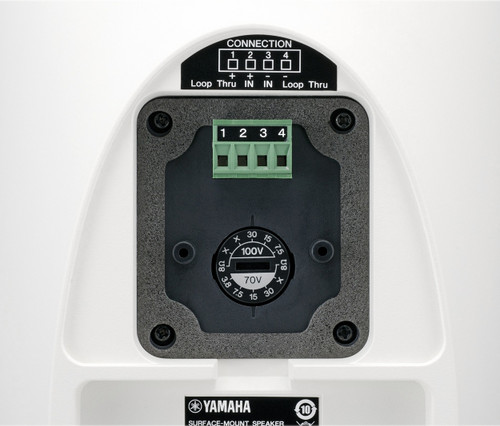

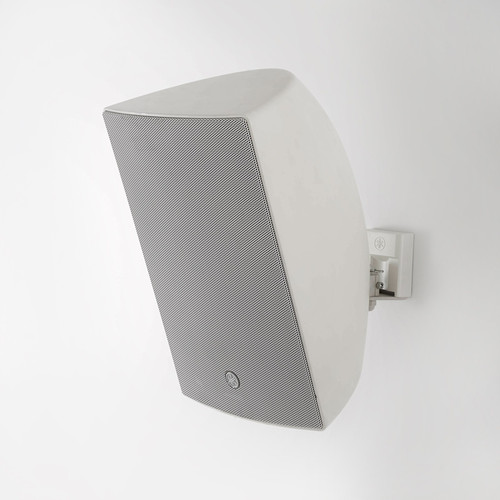

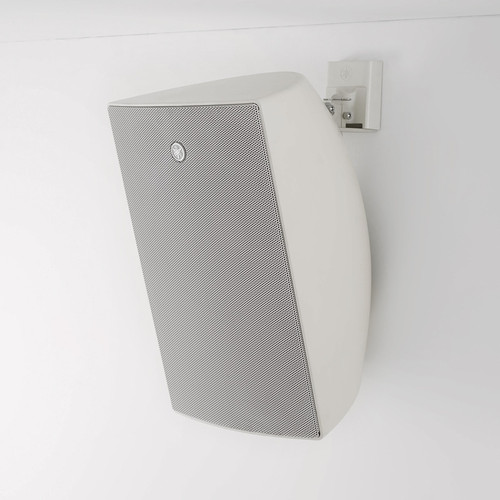

The Yamaha VXS5 5.25" full-range speaker is equipped with an internal transformer allowing it to operate at both high or low impedance simply by changing the tap on the rear of the speaker. The VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets. The speaker cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end. Several aspects of the speakers' design reflects a strong emphasis on functionality as well as the aesthetic features of the construction effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.

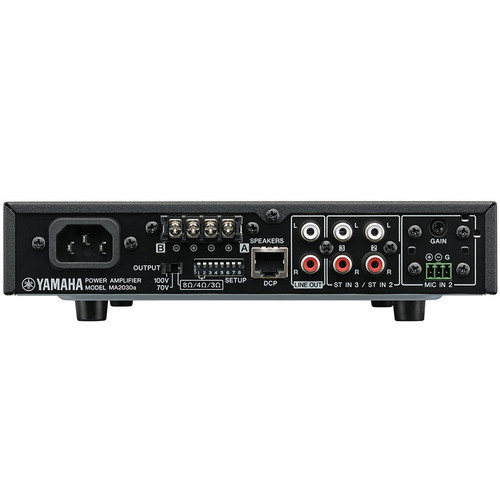

With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's MA2030a compact mixer power amplifier. This model combines a familiar, unassuming construction with efficient, flexible performance and offers 2-channel mixing capabilities with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha's state-of-the-art DSP technologies featured in their top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030a provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.
The Yamaha DCP1V4S Digital Control Panel connects to the Yamaha MA2030 Mixer Amplifier for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback. The DCP1V4S is available in either US or EU standardized sizes, built to meet the specifications of most regions around the globe.
Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
