Yamaha Rio3224-D Dante-compatible I/O Rack (Discontinued)

By Yamaha

Yamaha Rio3224-D Dante-compatible I/O Rack (Discontinued)

Write a Review

Part #:

RIO3224-D

Model #:

Rio3224-D

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

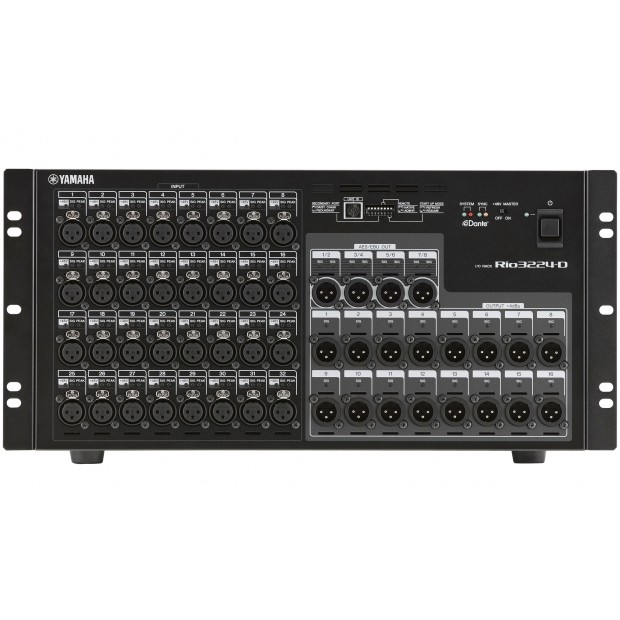

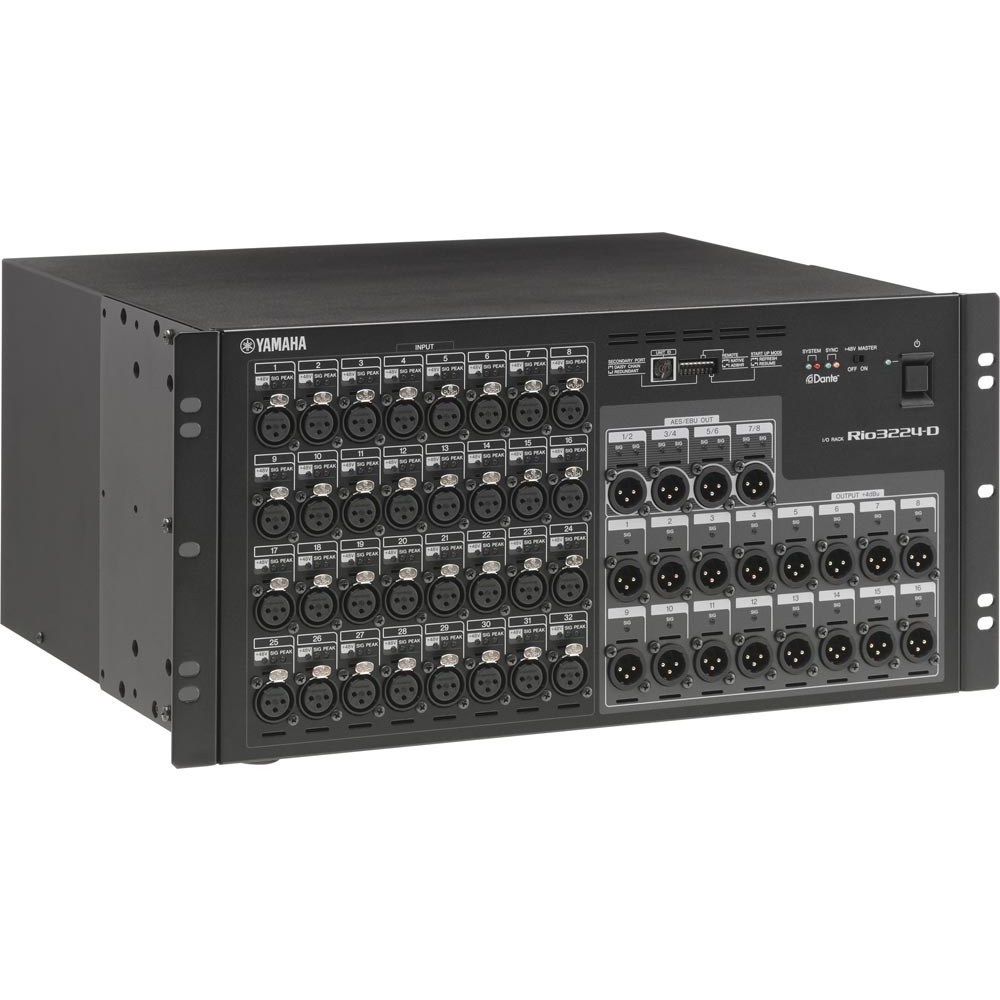

The Yamaha Rio3224-D is a Dante-compatible I/O rack, featuring 32 analog inputs, 16 analog outputs, and 8 AES/EBU outputs.

Description

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Features

A creative console for expressive engineering
Efficient, enjoyable operation
Scalable, versatile network capabilities
Long-distance Dante Network Capability
Remotely Controllable Internal Head Amplifiers
Gain Compensation Function
Digital Outputs

Specifications

Signal Delay	3ms INPUT to OUTPUT, connect with CL5 Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total Harmonic Distortion	LessLess than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs= 44.1kHz, 48kHz Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs= 88.2kHz, 96kHz INPUT to OUTPUT, Input Gain= Min. than 0.05% 20Hz-20kHz@+4dBu into 600Ω
Frequency Response	+0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 44.1kHz, 48kHz +0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 88.2kHz, 96kHz
Dynamic Range	108dB typ., INPUT to OUTPUT, Input Gain = Min
Crosstalk	-100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min
Power Requirements	Other: 110-240V 50/60Hz
Power Consumption	120W
Others	Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
Dimensions (H x W x D)	9.13" (232 mm) x 18.9" (480 mm) x 14.2" (361.5 mm)
Net Weight	27.3 lbs (12.4 kg)
