The Yamaha RX-A1040 AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation.

Description

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonizing traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio, Pandora, Rhapsody, Spotify, SiriusXM Internet Radio and operate your system via WebBrowser Control. The AV Controller App (from iTunes or Google Play) lets you control various functions from your iPod, iPhone, iPad or Android phones/tablets.

All models have a fully discrete power amplifier that helps to minimize distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

Features

  • Symmetrical power amp layout and rigid chassis with additional bottom frames
  • Professional quality digital audio by ESS Technology ES9006 SABRE Premier Audio DAC
  • 110 W x 7-channel powerful surround sound
  • AirPlay, HTC Connect, Pandora, Spotify, SiriusXM Internet Radio, Rhapsody
  • FLAC, WAV 192 kHz/24-bit, Apple Lossless 96 kHz/24-bit playback and gapless playback compatibility
  • 4K Ultra HD video up conversion using Yamaha video processing
  • Support for HDMI 2.0 specification (4K Ultra HD 50/60p compatible)
  • YPAO - R.S.C. with multipoint measurement
  • HDMI zone switching allows different HD audio/video sources playback in different rooms

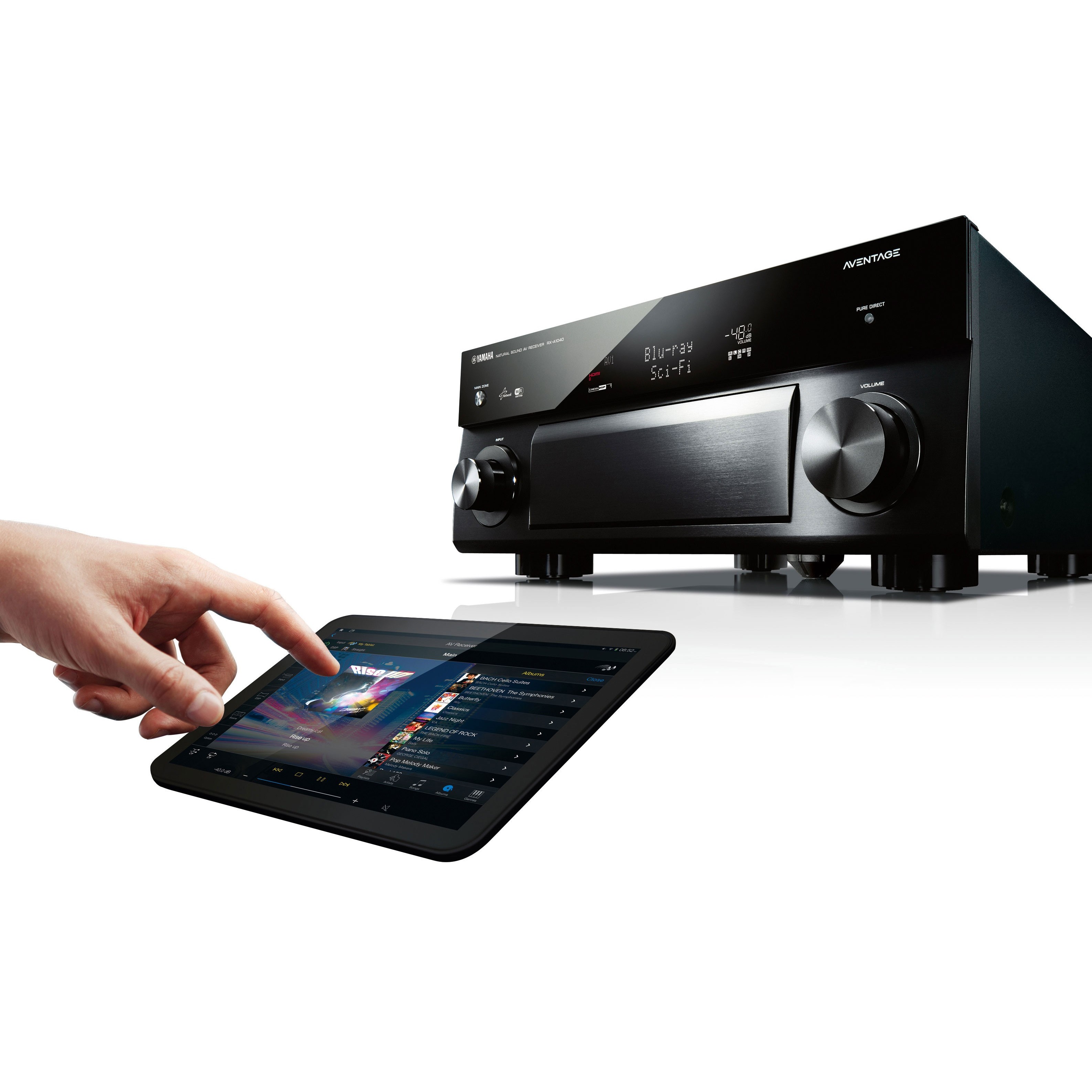

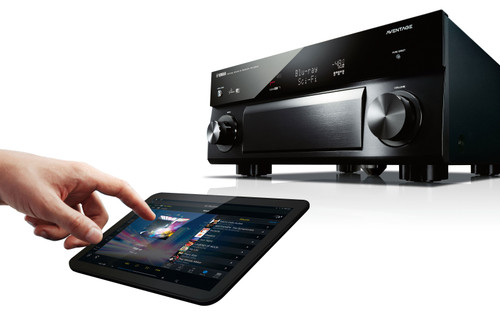

  • Easy control with Yamaha AV Controller App

Specifications

Channel 7.2
Rated Output Power (1kHz, 2ch driven) 120 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 110 W (8 ohms, 0.06% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 135 / 165 / 210 / 280 W
HDMI Input/Output 8 (1 front) / 2 (assignable for zone)
HDMI CEC Yes (SCENE, device control)
Network Port Yes (AirPlay, HTC Connect, Pandora, Spotify, Rhapsody, SiriusXM Internet Radio
USB Input iPod / iPhone / iPad, USB memory, portable audio player

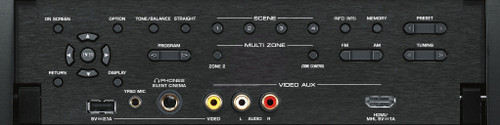

Front AV Input HDMI (MHL support), USB, analog audio, optical, composite
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 10 (1 front) / 1
Phono Input Yes
Component Video Input/Output 3 / 1
Composite Video Input/Output 5 (1 front) / 2
Multi-Channel Input 8-ch
Preout 7.2-ch
Headphone Output Yes
FM/AM Tuner Yes
HD Radio Compatibility Yes
On-screen display Graphical user interface
SCENE SCENE PLUS (12 sets)
App Control Yes (iPhone / iPad, Android phone / tablet, Kindle Fire)
Web Browser Control Yes
Remote Control Unit Yes
Zone 2 Audio Output Line output / HDMI
Powered Zone Zone 2
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (HDMI zone switching)
Zone B Video Output HDMI
RS-232C Interface Yes
+12V Trigger Output Yes (2)
Remote (IR) Input/Output 1 / 1
Party Mode Yes
Dimensions (H x W x D) 17.13" (432.1 mm) x 7.13" (180.1 mm) x 17" (431.8 mm)
Weight 32.8 lbs (14.88 kg)
