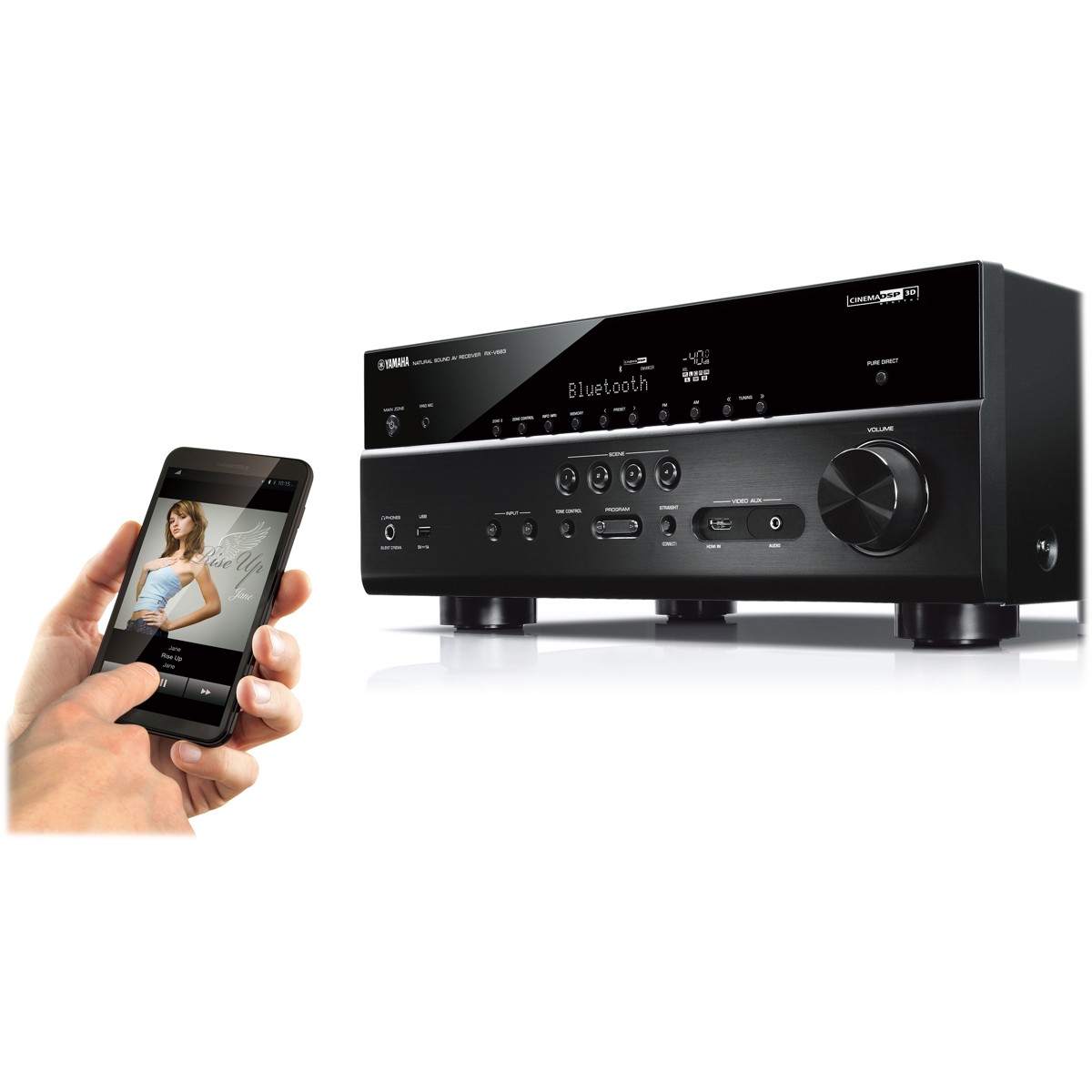

Yamaha RX-V683 7.2-Channel 4K Ultra HD Network Receiver with Wi-Fi (Discontinued)

This 7.2-channel 4K Ultra HD network AV receiver features Dolby Atmos and DTS:X object based surround sound. Add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices. Wi-Fi, Bluetooth and AirPlay wireless connectivity, a phono input for vinyl playback and Zone 2 audio provide added system versatility. In addition, Dolby Vision and Hybrid Log-Gamma compatibility provide incredible contrast, smooth tone and rich, bright colors.

• MusicCast: Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi network
• Dolby Atmos and DTS:X: These sound technologies transport you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth
• Dolby Atmos Speaker Pattern: Multiple placement patterns are available for presence speakers that support Dolby Atmos, creating a sound field that’s ideal for your setup
• Bluetooth: Bluetooth functionality lets you enjoy easy wireless music playback from smartphones and other devices
• Full 4K Ultra HD Support: This AV receiver completely supports with latest HDMI standards
• Wi-Fi Compatible: Built-in Wi-Fi allows for a connection with your wireless router, greatly simplifying system connections for enjoying networked audio (PC/NAS) and music streaming services
• Network Functions: A variety of network functions that enable you to access more sources and also enhance operation
• AV Controller App: Use the Yamaha AV Controller App that is downloadable from iTunes, Google Play or the Amazon Appstore to control the power, volume, input selections, DSP modes and much, much more from an iPhone or Android device
• DSP Adjustment: Equipped with a variety of sound programs that utilize original DSP technologies from Yamaha
• AirPlay: Supports AirPlay, which means it can accept wireless music streaming from iPod, iPhone, iPad, as well as from iTunes on a Mac or PC
• Spotify Connect: Stream those songs to your networked Yamaha AV receiver by using Spotify Connect
• Codec Support: Compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio
• Gapless Playback: Gapless playback ensures that there are no pauses between audio files
• Phono: Enjoy music from your vinyl collection through the phono input terminals
• YPAO™-R.S.C. (Reflected Sound Control): YPAO - Reflected Sound Control analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound
• Rich Bass Reproduction: This exclusive low-range enhancement technology delivers richer bass than you would expect from smaller sized speakers while maintaining good localization and sound balance even with compact front speakers
• Total Purity: High drive amp technology, high purity preamplification, anti-vibration technology and independent pure power supplies
• Discrete Amp Configuration: Employs a discrete amp configuration and a low-jitter PLL circuit, which contribute to its excellent audio performance
• SCENE for One-Touch Start: Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode
• Virtual Presence Speaker: CINEMA DSP 3D provides a wide, high and dense sound field
• Virtual CINEMA FRONT: Reproduces virtual 7-channel surround sound filled with realism, from only two front speakers
• Virtual Presence Speaker and Virtual Surround Back Speaker: With the power of CINEMA DSP 3D, the Virtual Presence Speaker function makes full use of center and surround speakers to create audible information from where presence (height) speakers are normally installed
• YPAO Volume: YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes
• Subwoofer Trim: Enhances the low frequencies by avoiding overlap with the front speaker output
• Intelligent Amp Assign: Automatically assigns amplifier channels to certain speakers, depending on what speaker layout is selected
• Advanced Graphical User Interface: Multilingual user interface with a high-resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format
• Zone 2 Extra Bass: Use the Extra Bass feature to amplify bass tones, not just in your main room but also on systems in Zone 2
• Zone 2 Volume Equalizer: Automatically adjusts bass and treble balance to match the volume on systems in Zone 2
• ECO Mode: When ECO mode is turned on it can reduce power consumption by about 20 percent
• Selectable Standby: Sleep mode. Auto Power Standby lets you save energy by selecting to turn off the power after 20 minutes, 2, 4, 8 or 12 hours

Owner's Manual

Quick Start Guide

• (1) RX-V683 Network Receiver
• (1) AM Antenna
• (1) FM Antenna
• (1) YPAO Microphone
• (1) Remote Control
• (2) Sets of Batteries (AAA, R03, UM-4)
• (1) CD-ROM Owner's Manual
• (1) Quick Start Guide
