Yamaha SM12V 12 inch 2 way Monitor (Discontinued)

Part #:
SM12V
Model #:
SM12V
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Yamaha SM12V 12" club concert series floor monitor features refinements aimed at permanent installations.

Description

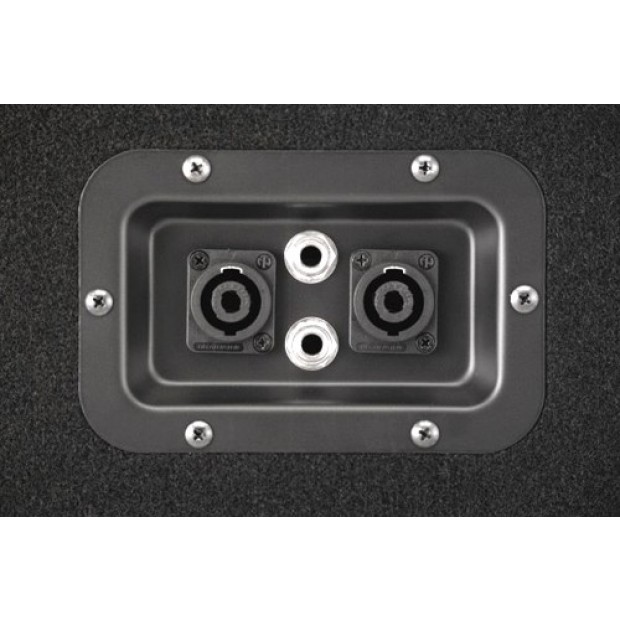

The Club Series V loudspeakers with the S prefix have rugged carpet covering and steel corner protectors to hold up to the rigors of transport. Heavy arced steel grilles offer protection for the woofer. Models are available for any application from small speech reinforcement to very high output dance requirements. Gigging bands, mobile DJs and houses of worship have helped make the first four generations of Yamaha Club Series Speakers incredibly popular. The refinements of generation V continue this success story: larger enclosures for improved low-frequency performance, improved drivers for higher power handling, redesigned crossovers, stronger grilles, and dual Speakon® and ¼" connectors.Once again, with professional features, excellent sonic performance and great value, Club Series loudspeakers deliver premium quality night after night. Cabinets are constructed of high-quality particleboard, chosen for its high strength and elasticity, consistent void free makeup and light weight. Another great benefit of this material is its environmental friendliness. Made from southern yellow pine, this material is both abundant and quickly renewable. Accurate CNC routing machines are used to cut every part, assuring consistency with tolerances of one ten thousandth of an inch. Skilled technicians assemble each cabinet by hand, rejecting any defects. Whether covered in durable carpet or the elastomeric spray coating, heavy steel handles and sturdy pole sockets make moving and positioning easy. Connections on these loudspeakers are dual Neutrik Speakon® ¼ jacks for the highest possible strength and current capacity. Two of each connector makes it easy to "daisy chain," or add speakers.

Features

  • 12" 2-way floor monitor
  • Low profile design
  • Can easily be used as a main speaker
  • Awesome vocal monitor
  • Carpeted finish

Specifications

Frequency Response 60Hz - 16kHz
Nominal Coverage H: 40 x V: 90
Components LF 12" cone
Components HF Horn, 2" voice coil driver
Power Handling NOISE: 175W; PGM: 350W; PEAK: 700W
Nominal Impedance 8 Ohms
Sensitivity 97dB SPL
Maximum SPL 125dB
Finish Carpeted finish
Dimensions (H x W x D) 24.88" (632 mm) x 16.25" (414 mm) x 13.88" (351 mm)
Weight 47.2 lbs (12.4 kg)
