Yamaha STAGEPAS 1K MKII 1100W Slim Line Array Portable PA System with 5-Channel Digital Mixer, Priority Ducking and Bluetooth

Part #:
STAGEPAS 1K MKII
Model #:
STAGEPAS 1K MKII
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yamaha STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering 1100W, 125 dB SPL peak at 1m, this portable PA system with Bluetooth features a 5-channel digital mixer, 10 1.5" line array speakers, 12" subwoofer, SPX digital reverbs, Priority Ducker and 1-knob EQ and multi band comp for master output.

Description

Yamaha STAGEPAS 1K MKII 1100W Line Array Portable PA System
with 5-Channel Digital Mixer, Priority Ducking, and Bluetooth

More Practical. More Professional. More Powerful.

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing our unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple Setup and Control Allow You To Focus On Your Performance

The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like "Speech" or "Music" to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance.

Best-in-Class Compact Power

A 1100W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Features

  • 1100W power output
  • Biggest in the class 12-inch subwoofer for low frequency
  • 1.5-inch x10 slim line array speaker for high frequency

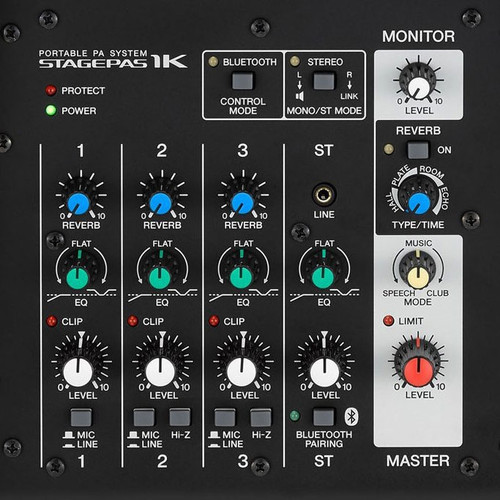

  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi band comp "MODE" for master output
  • 1-knob EQ per channel
  • High resolution SPX digital reverb (4 types, parameter control)
  • Priority Ducker for stereo channel
  • 4 band PEQ per channel via remote control APP "STAGEPAS Controller"
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out

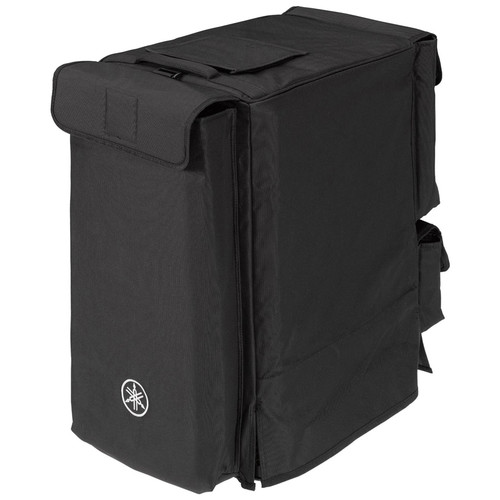

  • Dedicated cover included
  • Optional reverb foot switch (FC5)

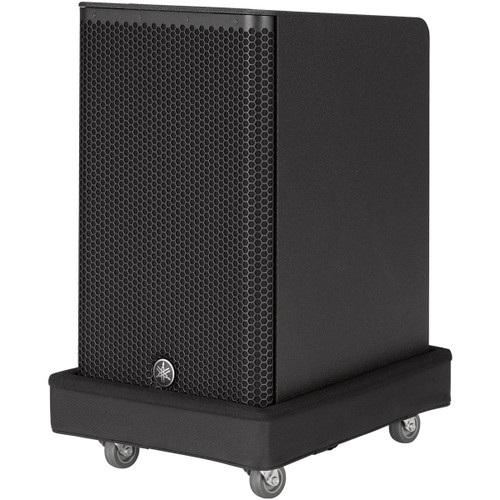

  • Optional dolly (DL-SP1K) for more portability

Specifications

Speaker Type Powered subwoofer with a line array speaker
Bluetooth Bluetooth Ver. 5.0, A2DP (SBC, AAC)
Frequency Range (-10 dB) 37 Hz - 20 kHz
Coverage Area H 170° x V 30°
Crossover 240 Hz
Maximum Output Level (1m; on axis) 125 dB SPL
Components Line array speaker: HF (10) 1.5" (3.8 cm) Cones
Powered subwoofer: LF 12" (30 cm) Cone
Power Rating 1100W Dynamic
Amplifier Class Class-D
Power Consumption 25W (Idle), 91W (1/8 power)
Power Requirements Depending on area of purchase: 100V 50 Hz/60 Hz, 110-120V 60 Hz, 220V-240V 50 Hz/60 Hz
Processors SPX digital reverb (4 program, parameter control)
I/O Connectors Inputs: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs: Link out x1, Monitior out x1
Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
Handle Top of powered subwoofer x1
Accessories Power cord x1, Cover x1
Dimensions (H x W x D) System: 78.74" (2000 mm) x 13.15" (334 mm) x 16.46" (418 mm) (maximum)
Line array speaker: 22.91" (582 mm) x 2.64" (67 mm) x 3.39" (86 mm)
Powered subwoofer: 21.65" (550 mm) x 13.15" (334 mm) x 16.46" (418 mm)
Spacer: 21.85" (555 mm) x 2.64" (67 mm) x 3.39" (86 mm) (each)
Weight System: 50.71 lbs (23 kg) (maximum)
Line array speaker: 3.97 lbs (1.8 kg)
Powered subwoofer: 44.09 lbs (20 kg)
Spacer: 1.32 lbs (0.6 kg) (each)
