The STAGEPAS was designed to offer high quality sound, simply and quickly to let you do what you do best. Whether you're giving a speech or playing a gig, STAGEPAS is equipped with intelligent new features that provide simple, intuitive control of optimized settings, making it easy to dial in your perfect sound in a matter of seconds.

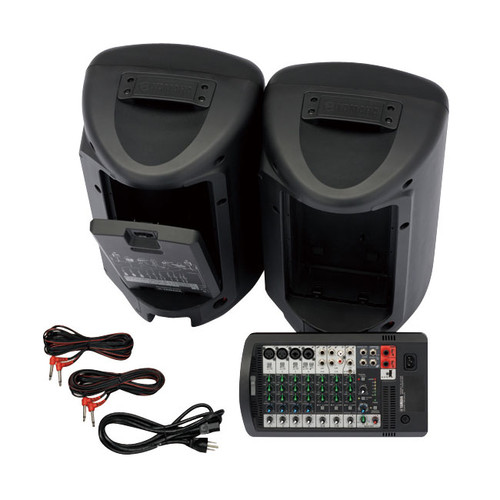

The new STAGEPAS features two sleek, lightweight speakers and a detachable powered mixer, along with one pair of speaker cables and a power cord, giving you a complete, extremely portable sound solution that can be set up quickly and easily in a variety of configurations and environments. By combining new high-efficiency amplifiers, newly designed speakers, and high performance DSP, the new STAGEPAS delivers a significant increase in power output as well as substantial improvements in sound quality and reliability. Complementing the boost in performance, the addition of iPod/ iPhone connectivity, SPX digital reverbs, an onboard feedback suppressor and more versatile EQ, has improved functionality and ease of use considerably, allowing STAGEPAS to meet the demands of a much wider range of applications and users.
Ultimate portability
Compact and light enough to carry by hand, STAGEPAS is an all-in-one PA system that you can take literally anywhere. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.
Fast and easy set-up
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.
| System | |
|---|---|
| Maximum SPL | 129dB SPL / speaker |
| Frequency Range (-10 dB) | 55Hz - 20kHz |
| Power Consumption | 35W (Idle), 100W (1/8 Power) |
| Power Requirements | 100V - 240V 50Hz/60Hz |

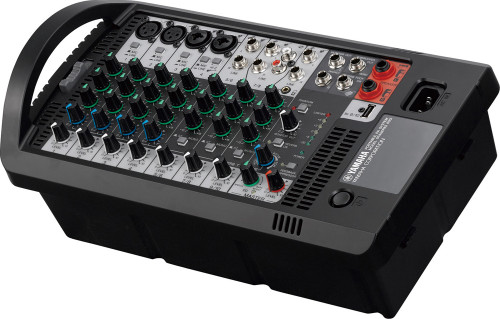

| Powered Mixer | |
| Mixing channels | 10 |
| Analog inputs | 4 mono mic/line + 6 mono / 3 stereo line |
| Digital inputs | USB Audio IN: iPod/iPhone exclusive |
| Channel EQ | 3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz) |
| Channel functions | Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 |
| Digital effects | SPX digital reverb (4 program, parameter control) |
| Output processing | Feedback suppressor, 1-Knob Master EQ™ |
| Phantom power | +30V (CH 1, 2) |
| Outputs | SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
| Control and others | Reverb foot switch |
| Built-in Amplifiers | |
| Power Rating (Dynamic) | 680W (340W + 340W) |
| Power Rating (Continuous) | 560W (280W + 280W) |

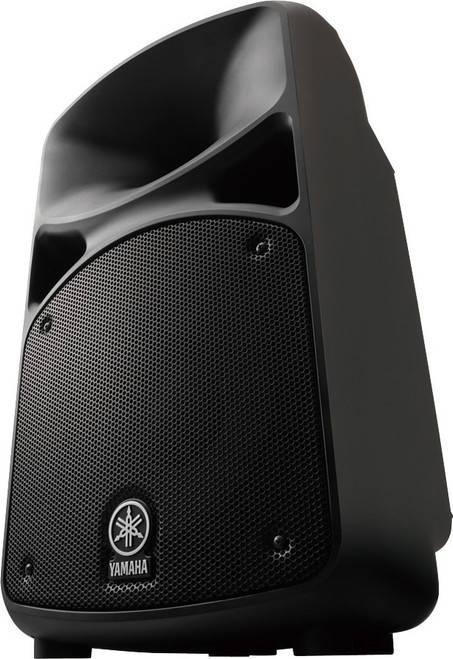

| Speakers | |
| Type | Two-way bass-relfex speakers |
| Transducers | LF: 10” (25cm) cone, HF: 1.4” (3.56cm) voice coil compression driver |
| Coverage Angle (Horizontal x Vertical) | 90° x 60° |
| Floor Monitor Angle | 50° |
| Handle | 1 x Top |
| Pole socket | 34.8-35.2mm pole socket with StageLok™ |
| Dimensions (H x W x D) | Speaker: 21.46" (545 mm) x 13.19" (335 mm) x 12.56" (319 mm) Mixer: 7.76" (197 mm) x 13.7" (348 mm) x 5.31" (135 mm) |
| Weight | 56 lbs (25.4 kg) |
