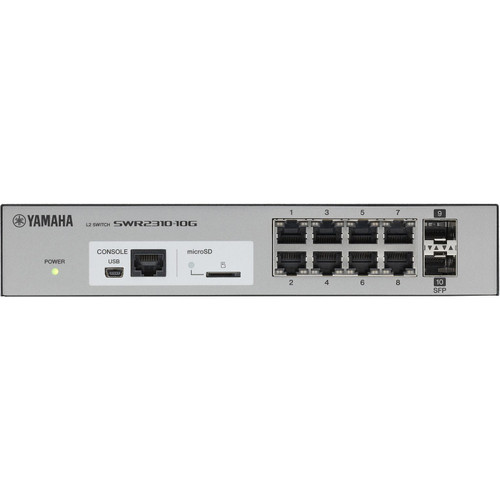

The SWR2310-10G is an intelligent, installation-grade L2 network switch designed to deliver secure, stable performance for professional audio, video, and control networks. Equipped with 8 RJ45 ports and 2 SFP slots for long-distance fiber uplinks, it ensures reliable backbone connectivity for Dante, NDI, AV control systems, and other bandwidth-intensive applications.
Built-in RADIUS authentication enhances network security, making the SWR2310-10G suitable for enterprise-level or mission-critical AV environments. The switch also supports VLANs, QoS, and IGMP Snooping, enabling optimized traffic management for audio and video data. With compatibility with Yamaha LAN Monitor software, integrators gain real-time visibility into device status, port activity, and network health-simplifying setup, troubleshooting, and system maintenance.
Designed for fixed installations, the SWR2310-10G offers robust reliability, flexible configuration, and powerful monitoring tools, making it an ideal choice for conference rooms, auditoriums, educational facilities, and large-scale AV networks requiring secure and stable operation.
| LAN Ports | Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) Number of Ports: 8 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight |
|---|---|
| SFP Ports | Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX) Number of Ports: 2 |
| Console Ports | Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 bit/s |
| Performance | Switching Bandwidth: 20 Gbit/s Forwarding Rate: 15 Mpps Flame Buffer: 1.5 MB |
| microSD Slot | Standard: microSD/microSDHC (microSDXC is not supported) File System: FAT/FAT32 |
| Indicators | POWER, microSD, LAN port (LINK/ACT, SPEED), SFP port (LINK/ACT, SPEED) |
| MAC Address | Indicated in product label on top panel of unit |
| Operating Environment | Ambient temperature: 0–50˚C, Ambient humidity 15–80% (non-condensing) |
| Storage Environment | Ambient temperature: -20–60˚C, Ambient humidity 10–90% (non-condensing) |
| Power Supply Voltage, Frequency | AC100–240V, 50/60 Hz |
| Maximum Power Consumption | 11.7W |
| Accessories | Owner's manual, power cord (3-prong), power cord clamp, legs |
| Dimensions (H x W x D) | 1.6" (40.5 mm) x 8.7" (220 mm) x 9.8" (250 mm) |
| Weight | 3.7 lbs (1.7 kg) |
