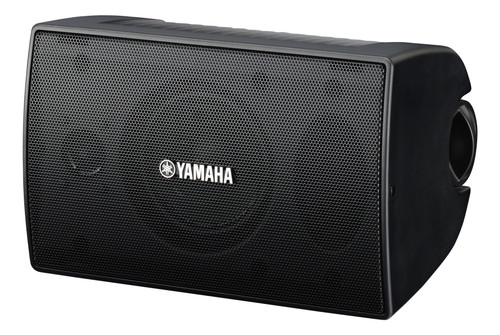

Yamaha VS4 4" Surface Mount Speakers
The Yamaha VS4 surface mount speaker comes with a 4" woofer to handle the bottom end and a 1" balanced dome tweeter for superb clarity at higher frequencies. With waterproof enclosures and transducers, the VS Series meets the industry standard IEC60529 IPX3 rating requirements, lending peace of mind with outdoor usage. Adding still more versatility, internally mounted transformers allow the VS Series speakers to operate in 70V or 100V distributed sound systems.
A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high-quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.

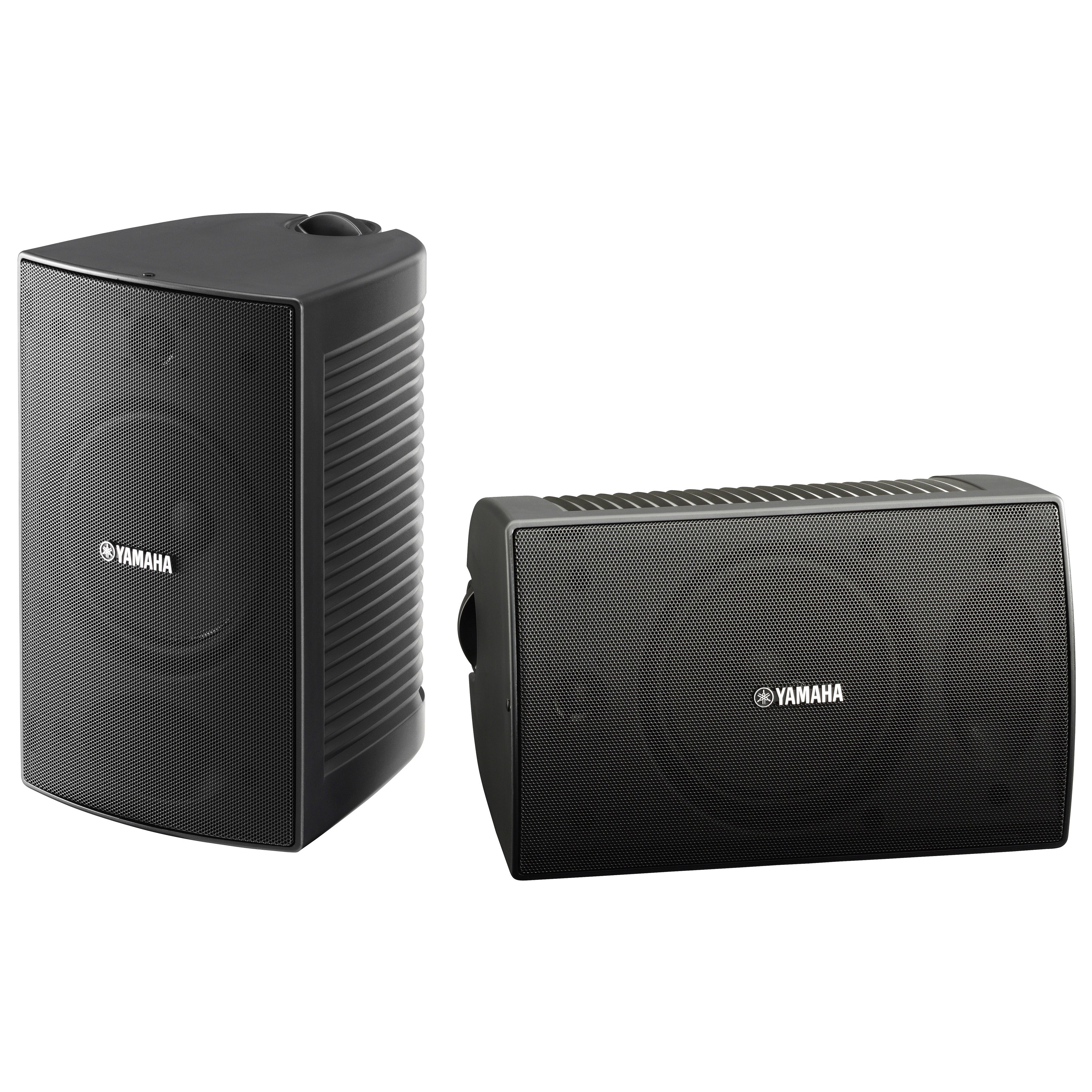

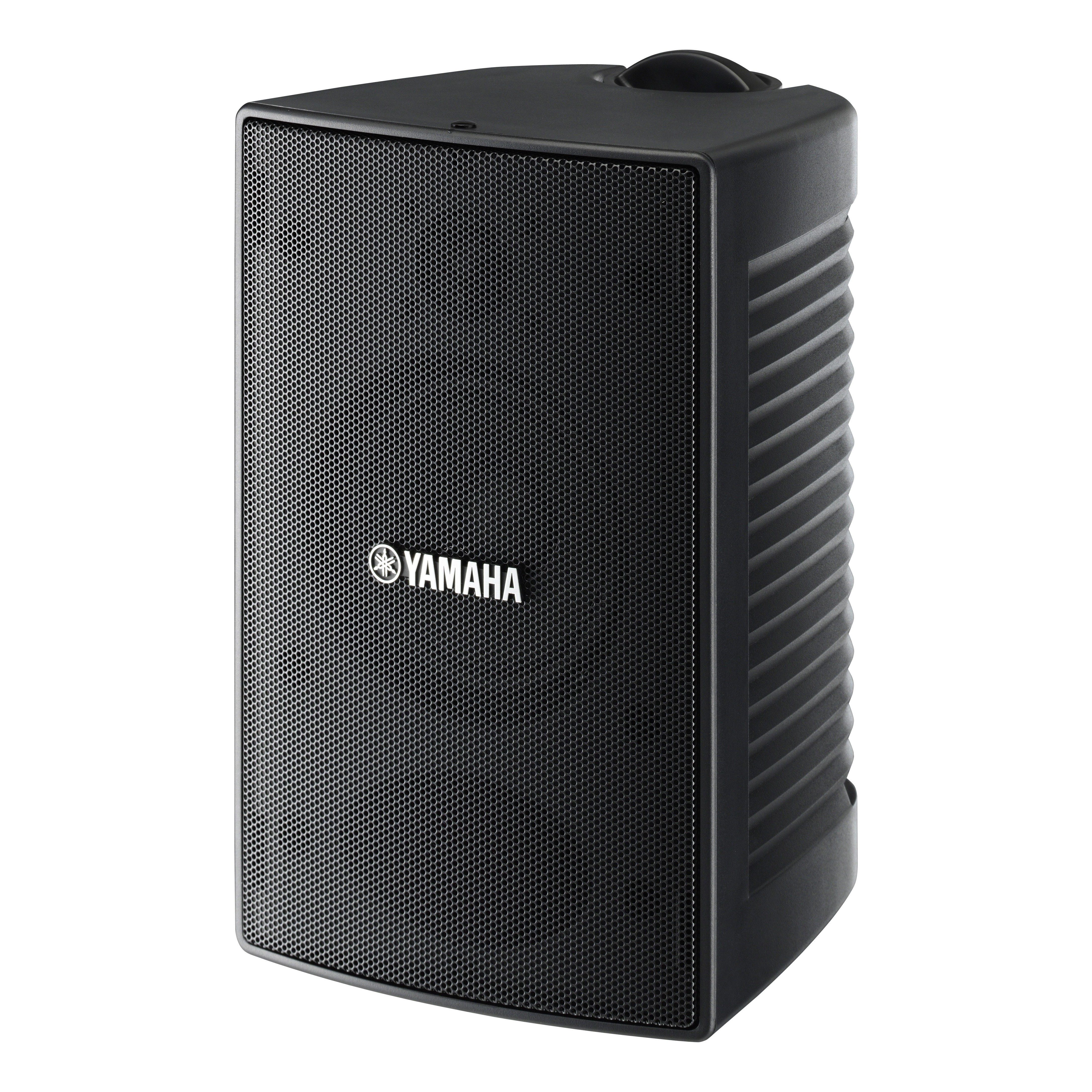

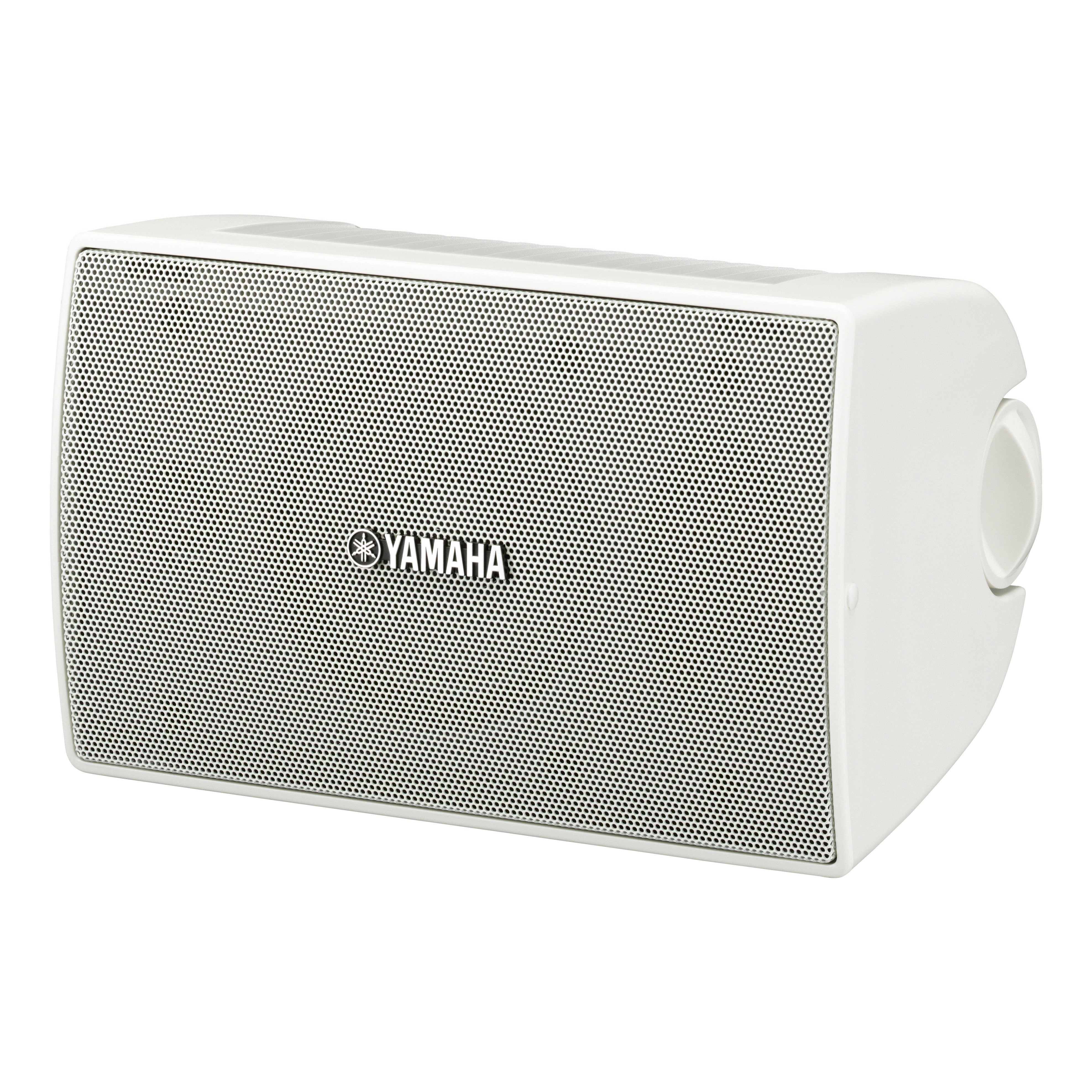

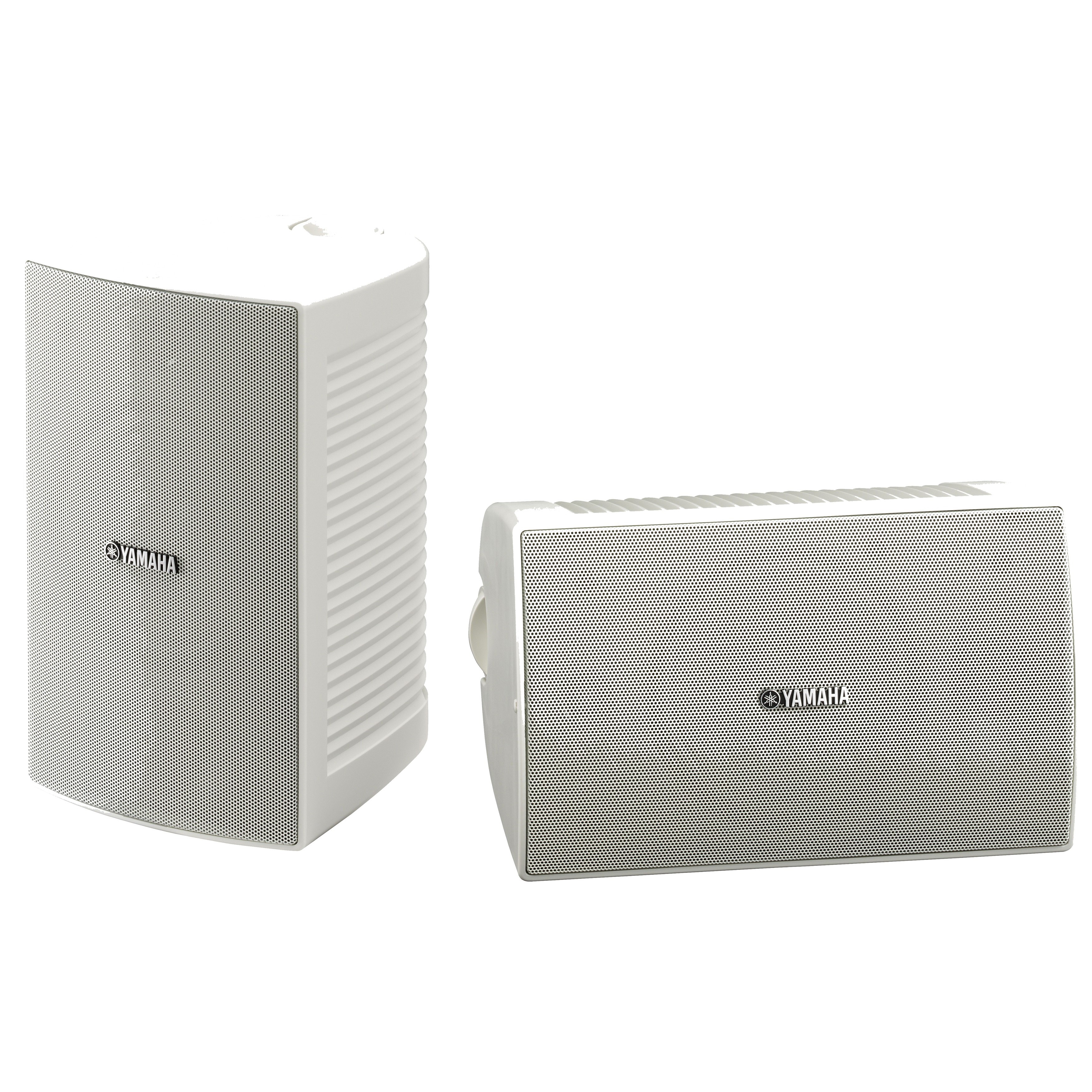

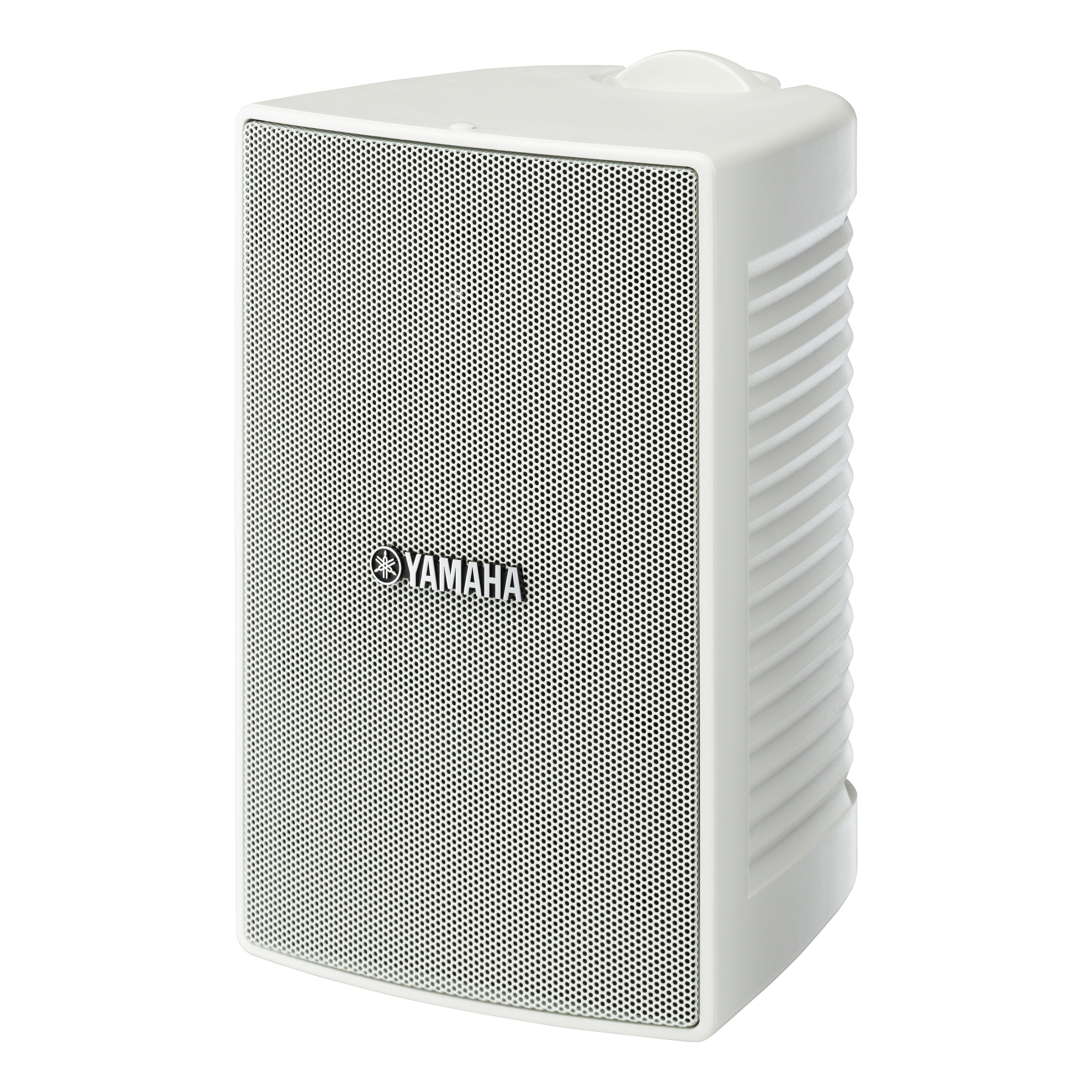

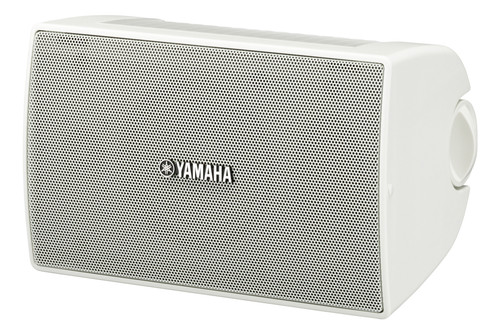

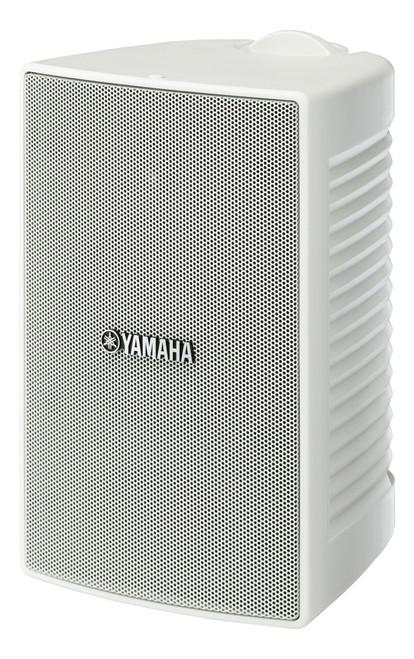

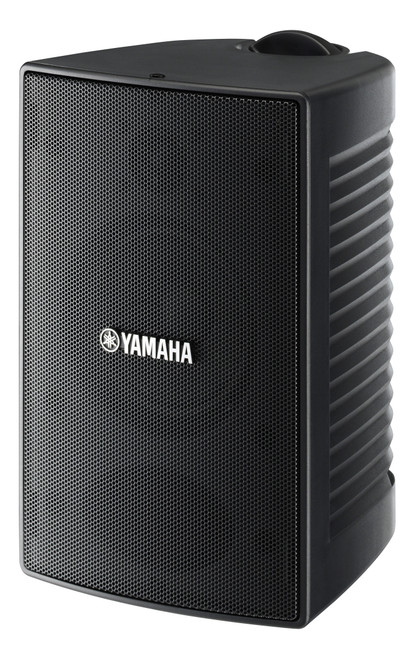

Available in black or white and may be installed horizontally or vertically using an enclosed dedicated, color-matched steel U-bracket. Sold in pairs.
| Frequency Range | 100Hz - 20kHz |
|---|---|
| Nominal Coverage | H: 110; V: 110 |
| Components | |
| LF | 4" (100mm) cone driver |
| HF | 1" (25mm) balanced dome tweeter |
| Crossover | 15kHz |
| Power Rating | |
| NOISE | 15W |
| PGM | 30W |
| PEAK | 60W |
| Nominal Impedance | 8Ω |
| Transformer Taps | |
| 100V | 15W, 7.5W, 3.8W |
| 70V | 15W, 7.5W, 3.8W, 1.9W |
| SPL | |
| Sensitivity (1W; 1m on axis) | 88dB SPL |
| Peak (Calculated) | 106dB SPL (60W) |
| I/O Connectors | 2 pairs of barrier strip (parallel-wired) |
| Shape | Rectangular |
| Cabinet Material | HIPS, 94-HB |
| Finish | VS4: Black, VS4W: White |
| Flying and Mounting Hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) |
| Waterproof | IEC60529 IPX3 splash proof rating |
| Packaging | Packaged in pairs |
| Dimensions (H x W x D) | 9.56" (243 mm) x 6" (152 mm) x 6.75" (172 mm) |
| Net Weight | 4.2 lbs (1.9 kg) |
Usually arrives in 5-9 business days.
