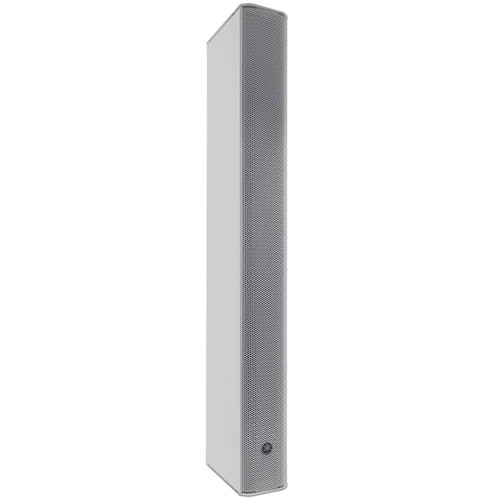

The VXL1-8 is a compact slim column array loudspeaker with 8 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions –anywhere high-quality audio and pattern control is needed. It's slim and sleek design with both black and white exterior options, blends seamlessly into the surrounding interior design.
It features a 40-degree coverage in a vertical plane and can be adjusted for flexible coverage. Multiple units can be connected vertically for deeper coverage, or connected next to each other to create a very tight horizontal dispersion array.
| Frequency Range (-10dB) | 70 Hz – 20 kHz 110 Hz - 20kHz 1 (w/ port cover) |
|---|---|
| Coverage Area | Horizontal: 170°, Vertical: 40°（+20° – -20°） |
| Drivers | (8) 1.5" (3.75 cm) cone |
| Power Rating | Noise: 40W PGM: 80W Peak: 160W |
| Nominal Impedance | 16Ω |
| I/O Connectors | Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) |
| IP-Rating | Dust and water resistant : IP35 |
| Dimensions (H x W x D) | 18.9" (480 mm) x 2.1" (54 mm) x 4.1" (104 mm) |
| Weight | 4.6 lbs (2.1 kg) |
