Naturally Extended Lows Bring the Music to Life

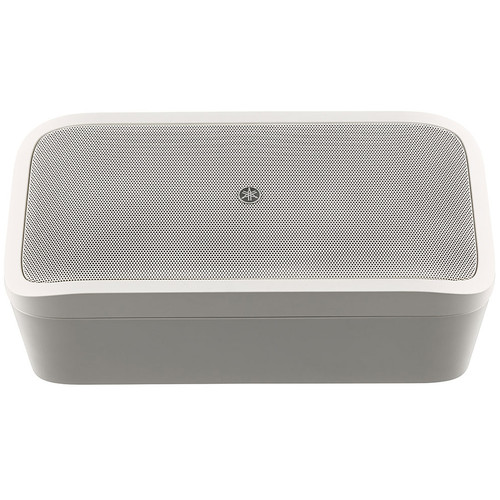

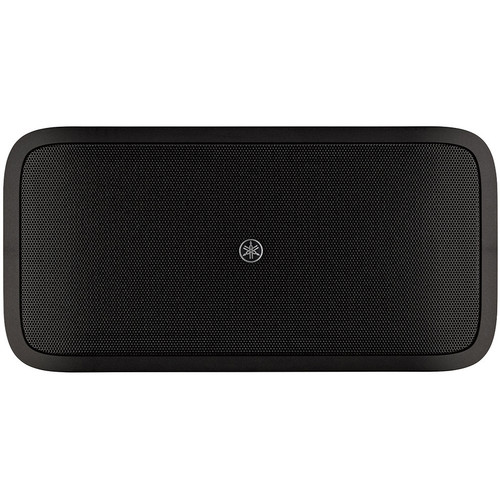

The VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
| Frequency Range (-10dB) | 65Hz - 180Hz |
|---|---|
| LF | 3.5" Cone |
| Power Rating | Noise: 20W PGM: 40W Peak: 80W |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70V: 15W, 7.5W, 3.8W, 1.9W 100V: 15W, 7.5W, 3.8W |

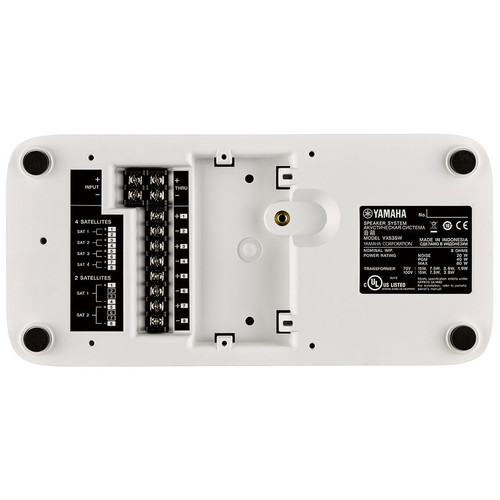

| I/O Connectors | TERMINAL BLOCKS (4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS (8pin) Satellite output:+/- (ST1～ST4) |
| Included Accessories | Mounting bracket, Safety wire, Spacers, Screws, Masking sheets |
| Dimensions (H x W x D) | 6.38" (162 mm) x 12.63" (322 mm) x 4.63" (118 mm) |
| Weight | 6 lbs (2.7 kg) |
