Yamaha XH200 Power Amplifier (Discontinued)

The Yamaha XH200 is a compact 2U size that will fit comfortably in just about any installation. This combination of high power output and small size has been realized through the use of an advanced switching power supply. The XH200 also features a monitor/remote connector that allows remote status monitoring and control from an external device.

The XH200 is a two-channel high-output power amp that can be switched between 70V and 100V line operation (200W x 2 channels into 24ohms-70V / 48ohms-100V). This high-impedance power amp is designed for installations in which multiple speakers are driven in parallel. A high-efficiency switching power supply means that the XH200 is significantly smaller and lighter than comparable amplifiers: it fits comfortably in a 2U rack space and weighs only 10 kg.

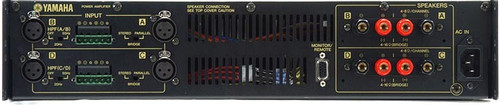

A rear-panel MONITOR/REMOTE connector allows the unit to be controlled or monitored from a remote location. The front panel provides dB-calibrated detented attenuators for each channel, and a comprehensive range of protection circuitry and indicators ensures operational stability and safety under the widest possible range of conditions.
