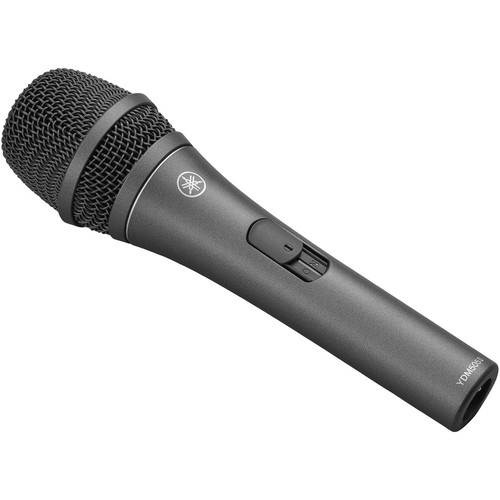

Yamaha YDM505S Handheld Dynamic Cardioid Microphone with Noise-Reducing Insulator and Switch - Black

Part # YDM505S
Model # YDM505S
The Yamaha YDM505S is a black handheld dynamic cardioid microphone featuring a custom capsule, noise-reducing insulator, ergonomic grip, and a locking on/off switch. Designed for creators and performers who need clear, low-noise sound and dependable control.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Description

Details

Yamaha YDM505S Handheld Cardioid Microphone with On/Off Switch

The YDM505S is a handheld dynamic microphone in sleek black, engineered for creators, performers, and vocalists who require clear, consistent audio with precise control. Its custom-designed cardioid capsule focuses on your voice while minimizing unwanted background noise, making it ideal for live performance, recording, streaming, and spoken-word applications.

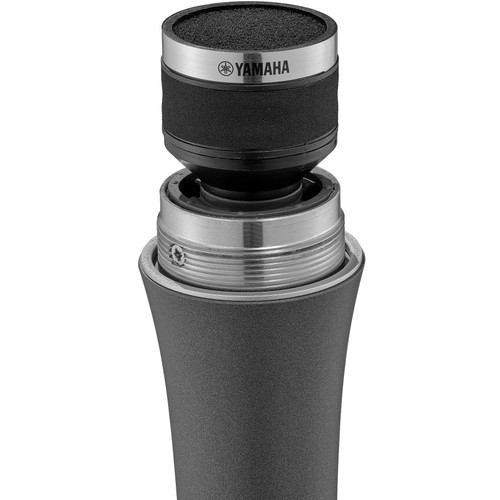

An advanced noise-reducing insulator, crafted from Yamaha's proprietary materials, minimizes vibrations, handling noise, and external interference so your sound remains clean and uninterrupted. The microphone's refined grip draws inspiration from Yamaha's musical instrument craftsmanship, offering smooth contours, a comfortable hold, and a premium feel. The YDM505S also features a locking on/off switch, giving performers secure control during live events or presentations.

The durable metal body is built for regular use, and the included microphone holder, 5/8" to 3/8" threaded adapter, and protective pouch make setup and transport simple. Replacement grilles are also available separately to keep your microphone looking like new. The YDM505S connects using a standard XLR cable (not included) to any mixer or interface with a balanced mic input, making it a versatile and reliable choice for any creator or live performer.

Features

Features

  • Handheld dynamic microphone in sleek black for creators and performers
  • Custom-designed cardioid capsule delivers clear, focused sound
  • Noise-reducing insulator minimizes handling vibrations and external noise
  • Durable metal body with a refined ergonomic grip inspired by Yamaha instruments
  • Locking on/off switch provides secure control during live performances
  • Includes microphone holder, 5/8" to 3/8" adapter, and protective pouch
  • Replacement grilles available for long-term durability
  • Ideal for live vocals, streaming, podcasting, and presentations
  • Connects using a standard XLR cable (not included)
Specification
Microphone TypeDynamic
Polar PatternCardioid
Frequency Response (at 60 cm)60 Hz - 15 kHz
Sensitivity2.5 mV/Pa (-52 dBV/Pa) 1 Pa = 94 dB SPL (at 1,000 Hz Open circuit voltage)
ImpedanceNominal Impedance: 600Ω (at 1,000 Hz)
Min. Terminating Impedance: 1,800Ω
ConnectorBalanced XLR 3pin chassis output connector
Connector Polarity1: Ground , 2: Hot (+), 3: Cold (−)
SwitchBuilt-in lockable on/off switch for secure control
ColorBlack
Dimensions (Dia x H)2" (51 mm) x 7.24" (184 mm)
Weight0.63 lbs (0.29 kg)
Documents

Documents

In The Box

In The Box

  • (1) YDM505s Black Cardioid Microphone with On/Off Switch
  • (1) Microphone Holder
  • (1) 5/8" to 3/8" Threaded Adapter
  • (1) Microphone Pouch
  • Owner's Manual
