Yorkville EF12P Elite Series 12" Active Loudspeaker with DSP and Bluetooth 1200 Watts (2400 Watts Peak)
Yorkville EF12P Elite Series 12" Active Loudspeaker with DSP and Bluetooth 1200 Watts (2400 Watts Peak)
Yorkville EF12P Elite Series 12" Active Loudspeaker with DSP and Bluetooth 1200 Watts (2400 Watts Peak)
By Yorkville

Yorkville EF12P Elite Series 12" Active Loudspeaker with DSP and Bluetooth 1200 Watts (2400 Watts Peak)

Write a Review
Part #:
EF12P
Model #:
EF12P
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Yorkville EF12P features a 12-inch neodymium woofer with a 3-inch titanium diaphragm compression driver for reduced distortion at high SPL.

Description

Yorkville Elite EF12P 12" Active Loudspeaker High Output, High Quality
and Extremely Durable Dedicated Front of House Box

In the 1980's, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.

Features
  • High output, high quality and extremely durable dedicated front of house box
  • Completely redesigned next generation elite cabinet
  • ABS coated birch plywood cabinet construction
  • Multiband DSP limiting with 4 preset playback performance modes
  • 3-inch titanium diaphragm compression driver for reduced distortion at high SPL
  • 12-inch neodymium woofer with 3-inch voice coil
  • iOS and Android app for added cabinet control (coming soon)

Specifications
System Type 2-Way
Active or Passive Active
Program Power (Watts) 1200 Watts (2400 Watts Peak)
Max SPL (dB) 131dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/- 3dB)
Crossover Frequency (Hz) 1100
Driver Configuration 12-inch, 3-inch Diaphragm
HF Driver(s) 3-inch Voice coil (Titanium Diaphragm)
HF Dispersion (°H x °V) 60 x 40
LF Driver(s) 12-inch Neo magnet w/3-inch Voice coil
HF Power Amplifier (Watts) 300
HF Amplifier Type 3-Tier High Headroom
LF Power Amplifier (Watts) 900
LF Amplifier Type Class-D
Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC
Current Draw 2A Typical, 3.2A Max
In / Out Connections 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput
Input Impedance (Bal/UnBal) 95KOhms / 90kOhms
Input Sensitivity (Vrms Sine) +4dBv / 1.23V

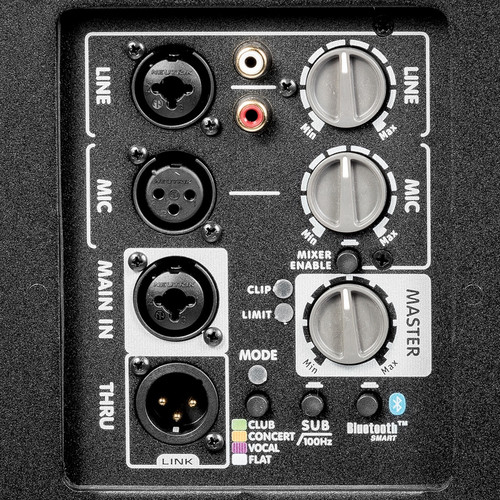

Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level
Bar Handles 2 x Side / 1 x Top
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
Pole Mount Adapter 1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials ABS Coated Baltic Birch Plywood
Dimensions (H x W x D) 28.2" (716.28 mm) x 18.6" (472.44 mm) x 14.5" (368.3 mm)
Weight 59 lbs (26.8 kg)

DOCUMENTS
