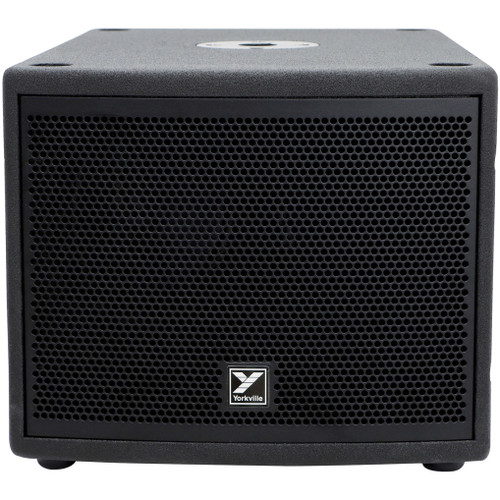

Yorkville EXM Mobile Sub Battery-Powered Subwoofer

The EXM Mobile Sub is the first lithium-ion battery-powered subwoofer in pro audio history, designed to bring club-quality bass anywhere. With 175 watts of peak power driving dual 8-inch woofers with 2-inch voice coils, it delivers clear, punchy low frequencies for mobile gigs, backyard parties, weddings, and small venues.

Weighing just 30 pounds, the EXM Mobile Sub is ultra-portable and easy to carry with one hand. Its bass-reflex design maximizes efficiency and low-end output, while integrated speaker-stand mounts and interlocking rubber feet provide secure setup options for both portable and fixed configurations.

The subwoofer is fully compatible with all products in the EXM Mobile series and features Bluetooth streaming for wireless audio playback. Dual combi-jack inputs, a stereo 1/8-inch input, and high-pass or full-range XLR outputs provide flexible connectivity, making it an ideal solution for mobile DJs, musicians, and compact PA setups requiring deep bass on the go.

Features

Features

175W battery-powered portable subwoofer with deep, punchy bass
Dual 8-inch LF woofers with 2-inch voice coil
Bluetooth streaming enabled for wireless audio playback
Stereo 1/8-inch input and 2 x combi-jack inputs for versatile connectivity
2x high-pass and 1x full-range XLR outputs
Bass reflex design for efficient low-frequency response
Integrated speaker stand mount and interlocking rubber feet
Minimum 5.5 hours of battery life per charge
Lightweight 30 lbs design for easy portability
Compatible with all EXM Mobile series products

Specification

System Type	Subwoofer
Powered or Passive	Battery Powered
Battery Life (Per Charge)	5.5 Hours
Program Power	175 watts peak, 100 watts program
Max SPL	116 dB continuous
Frequency Response	47 - 100k (Hz +/-3 dB)
Crossover Frequency	100 Hz lowpass
Power Consumption	32 Watts (While Charging)
LF Woofer	2x 8" (2" Voice Coil)
LF Amplifier Type	Class D
Cooling Scheme	Convection
Power Cable	Yes (Detachable IEC)
Level Controls	Sub Level
Inputs	2x (L&R) XLR/1/4" Combi-jack, Bluetooth, 3.5 mm Stereo
Outputs	2x XLR (L&R) High Pass Out, XLR Full Range Mix Out
LED Indicators	Power, Bluetooth, Battery Level, Charging Status, Limit

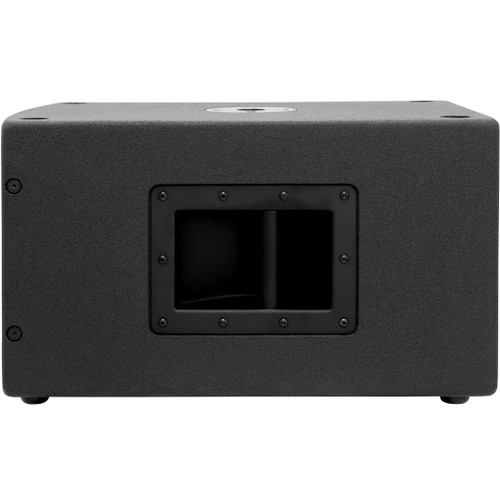

Bar Handles	1x Side
Pole Mount Adapter	1 Top (1 3/8-inch/3.5 cm)
Enclosure Materials	12 mm Birch Plywood
Grille	Powdered Coated Perforated Steel
Covering/Finish	Paint
Dimensions (H x W x D)	12.5" (317.5 mm) x 14.8" (375.92 mm) x 21.6" (548.64 mm)
Weight	30 lbs (13.6 kg)
