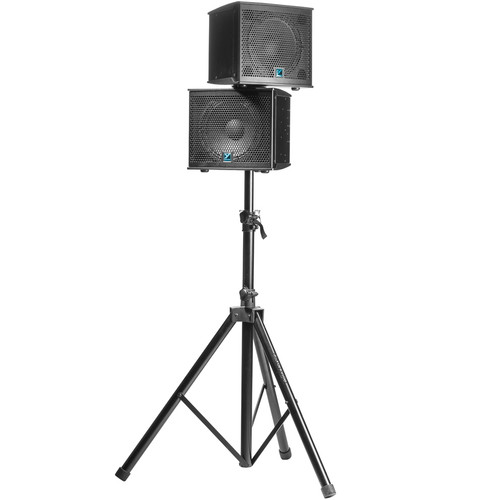

With its 12" profile and innovative "through hole" pole mount design, the Yorkville NX10C-2 is the most versatile and compact professional PA cabinet ever and allows multiple NX10C-2 cabinets to be mounted on a single standard speaker stand in a vertical array for very high volume applications.

Description

Yorkville NX10C-2 Compact 10" Active Loudspeaker

No need to bring separate stands for stage lighting and speakers when NX10C-2's can be mounted under the light bars, saving valuable stage space.

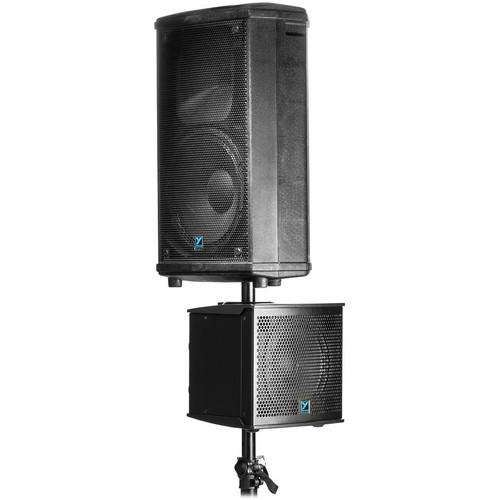

For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

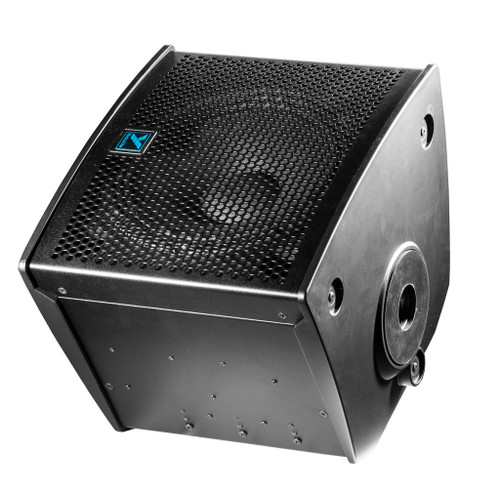

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet.

Versatile inputs for mic or line level sources as well as a 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source.

Features
  • No need to bring separate stands for stage lighting and speakers when NX10C-2's can be mounted under the light bars, saving valuable stage space
  • For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal
  • The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet
  • Versatile inputs for mic or line level sources as well as a 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source
  • Made in Canada

Specifications
Active or Passive Active
Program Power (Watts) 500 Watts (1200 Watts Peak)
Max SPL (dB) 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB) 80Hz - 20kHz
Crossover Frequency (Hz) 2500Hz
Driver Configuration Coaxial 10-inch/1-inch
HF Driver(s) 1.5 Inch Voicecoil (Titanium Diaphragm)
HF Dispersion (°H x °V) 60 x 60
LF Driver(s) 10-inch Ceramic Magnet with a 2.5" voice coil
HF Amplifier Type Class A/B
LF Amplifier Type 3 Tier Class- H
Power Cable Yes
Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4" inputs are parallel
Mixer Controls EQ (Playback/Bright)
Level Controls Line/Mic
Pole Mount Adapter (1 3/8 Pole Through
Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Dimensions (H x W x D) 12" (305 mm) x 13.5" (343 mm) x 13" (330 mm)
Weight 25 lbs (11.3 kg)
