Yorkville Sound's Paraline Series active full range loudspeaker system delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.

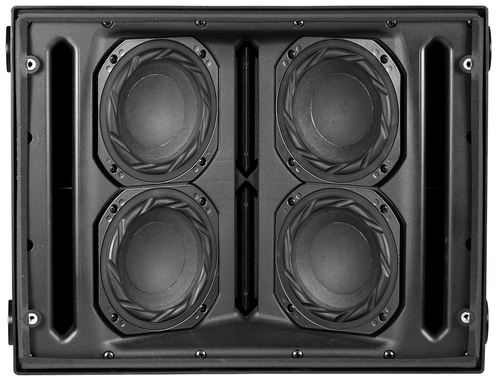

Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110 degree horizontal coverage. Four high quality 18 Sound 6-inch woofers provide a tight and ultra responsive low frequency program.
Rugged injection molded ABS cabinet and Neodymium magnet woofers minimize overall cabinet weight making a full system transport and set-up can easily be handled with a single operator. Designed to deliver maximum performance with minimum complication, the PSA1's integrated power amplifiers and internal DSP mean no external processing is required. Direct connect to mixer source and set system levels, and the system is ready for the show.

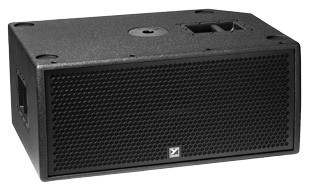

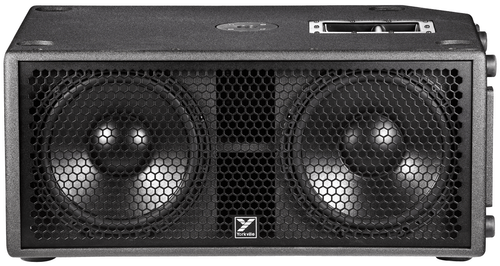

The 1400-watt dual 12-inch active PSA1S bass reflex subwoofer is the ideal companion sub for the PSA1 full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA1S the perfect platform for stacking PSA1 cabinets in a scalable array system. Compact design, heavy-duty wheels and handles ensure the PSA1S can easily be handled by a single operator for economical system set-up.
Efficient Class-D power amplifier design provides unmatched long-term reliability in the field. Cable of direct connection to any audio source (including speaker level input) the PSA1S can be easily integrated in to virtually any PA application, making it one of the most versatile active subwoofer solutions Yorkville Sound currently offers.- Features
Features
- Ultra High Performance Compact Active PA System
- Uses Patented Paraline Horn Lens Technology (from Yorkville Sound’s Flagship VTC Elevation Series Vertical Array Touring Systems)
- High quality Speaker Components (including 18 Sound 6-inch Woofers and BMS Compression Drivers)
- Focused 15° Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
- Wide 110° Horizontal Dispersion Pattern
- Manufactured Using Light-weight/Strong ABS Cabinet Material
- Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor (Maximum Two Cabinets per stand)
- Installation Hardware Available
- Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
- Specification

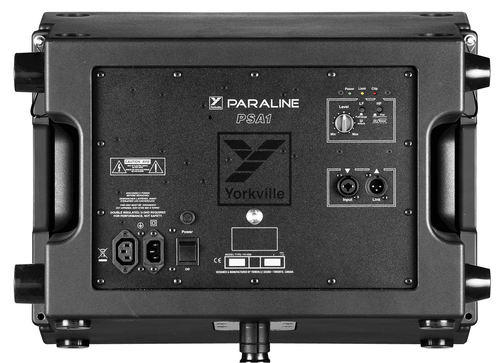

PSA1 Loudspeaker Active or Passive Active Program Power (Watts) 700 Program (1200 Watts Peak) Biampable Biamp Max SPL (dB) 128dB Peak (125dB Continuous) Frequency Response (Hz +/- 3db) 75Hz-20K Crossover Frequency (Hz) 1.2K Driver Configuration 2x1", 4x6" HF Driver(s) 2x1-inch Ceramic w/ 1.75-inch VoiceCoil HF Program Power (Watts) 75 Watts (200 Watts Peak) HF Dispersion (°H x °V) 110x15 HF Protection Peak and Average Limiting LF Driver(s) 4x6-inch neo with 45mm VC LF Program Power (Watts) 675 Watts Program (1000 Watts Peak) LF Impedance(Ohms) 2 Ohm Load LF Protection Excursion, RMS HF Power Amplifier (Watts) 75 W HF Amplifier Type 2-Tier Class H LF Power Amplifier (Watts) 625 W LF Amplifier Type Class D Cooling Scheme Convection Power Cable Removable Locking IEC Input and Loop Thru Output Power Consumption (typ/max) 135 VA / 225 VA Inputs 1 Combijack (XLR / 1/4-inch) Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max Level Controls Volume EQ Controls HF Boost switch, Fullrange/Sub switch Limiter Peak and Average limiting on horn and woofer LED Indicators Power, Limit, Clip Enclosure Materials Injection Molded ABS Baffle Material Injection Molded ABS Covering / Finish Paint Optional Covering / Finishes Optional Colours available Dimensions (H x W x D) 14.5" (36.8 cm) x 20.5" (52.1 cm) x 16" (40.6 cm) Weight 47 lbs (21.4 kg) PSA1S Subwoofer Active or Passive Active Program Power (Watts) 1400 Watts Program (2800 Watts Peak) Max SPL (dB) 135dB Peak (129dB Continuous) Frequency Response (Hz +/- 3dB) 37Hz-100Hz Crossover Frequency (Hz) fixed @ 100Hz Driver Configuration 2x12-inch (Bass Reflex Cabinet) LF Driver(s) 2x12-inch Ceramic with 3-inch VoiceCoil LF Impedance(Ohms) 2x4 Ohm Load LF Power Amplifier (Watts) Class D Power Consumption (typ/max) 210VA / 440 VA Enclosure/Baffle Materials 15mm Birch Covering / Finish Paint Dimensions (H x W x D) 32" (81.3 cm) x 14" (35.6 cm) x 22.75" (57.8 cm) Weight 75 lbs (34.2 kg) - Package Includes
Package Includes
- (1) Yorkville PSA1 Paraline Line Array Loudspeaker
- (1) Yorkville PSA1S Paraline 12" 2-Way Compact Subwoofer
- (1) Yorkville SW-TUBEHD Heavy Duty Steel Tube for Subwoofer/Speaker Mounting – 42" High
