The PSA28 Paraline line array powered loudspeaker is a high-output, compact solution designed for professional touring and fixed installations. Delivering 1400 watts of peak power, it features advanced audio technologies and rugged construction, making it ideal for demanding indoor and outdoor applications. The enclosure is IP54-rated for weather resistance and features integrated rigging hardware, supporting both flown and ground-stacked configurations, for versatile deployment options.
At the core of the PSA28's performance are Tom Danley’s patented Paraline Lens and Synergy Horn technologies. The Paraline Lens creates a precisely shaped wavefront that aligns with the horn's coverage pattern, enabling smooth cabinet-to-cabinet transitions in vertical arrays while virtually eliminating comb filtering. The Synergy Horn seamlessly blends the output of the high-frequency compression drivers and low-frequency neodymium drivers, maximizing efficiency and consistent directivity across the coverage area.
The PSA28 offers intuitive DSP controls to tailor the speakers' performance to any venue or setup. Key features include a switchable high-pass filter for subwoofer integration, a high-frequency boost for enhanced clarity, a Nearfield mode for close audience zones, and compensation for low-frequency buildup in large arrays. Onboard limiting helps protect the system during high-demand usage.

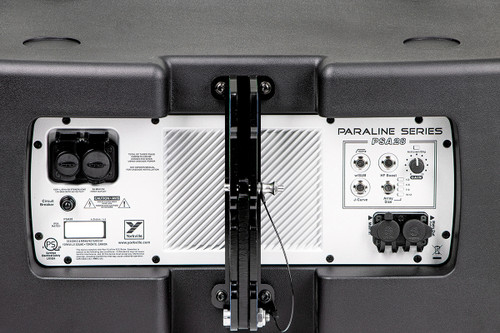

With XLR input and output, powerCON connectors for secure power in and pass-through, and a dual-angle 35 mm pole mount adapter, the PSA28 is built for quick setup and reliable operation. Whether used in a touring rig or as part of a permanent install, the PSA28 delivers clear, consistent, and powerful sound.
| Power Rating | 1200W Program (1400W Peak) |
|---|---|
| Max SPL (dB) | 140 dB |
| Frequency Response (+/- 3 dB) | 65 Hz - 20 kHz |
| LF Drivers | 2x 8" Neodymium |
| HF Drivers | 2x 1" Exit Neodymium |
| Input | 1x XLR |
| Output | 1x XLR |
| IP Rating | IP54 Rated for Outdoor Use |
| Dimensions (H x W x D) | 14" (356 mm) x 24.6" (625 mm) x 18.5" (470 mm) |
| Weight | 60 lbs (27.2 kg) |
