Yorkville SA221S 2x21" Synergy Array Active Powered Subwoofer

Description

Details

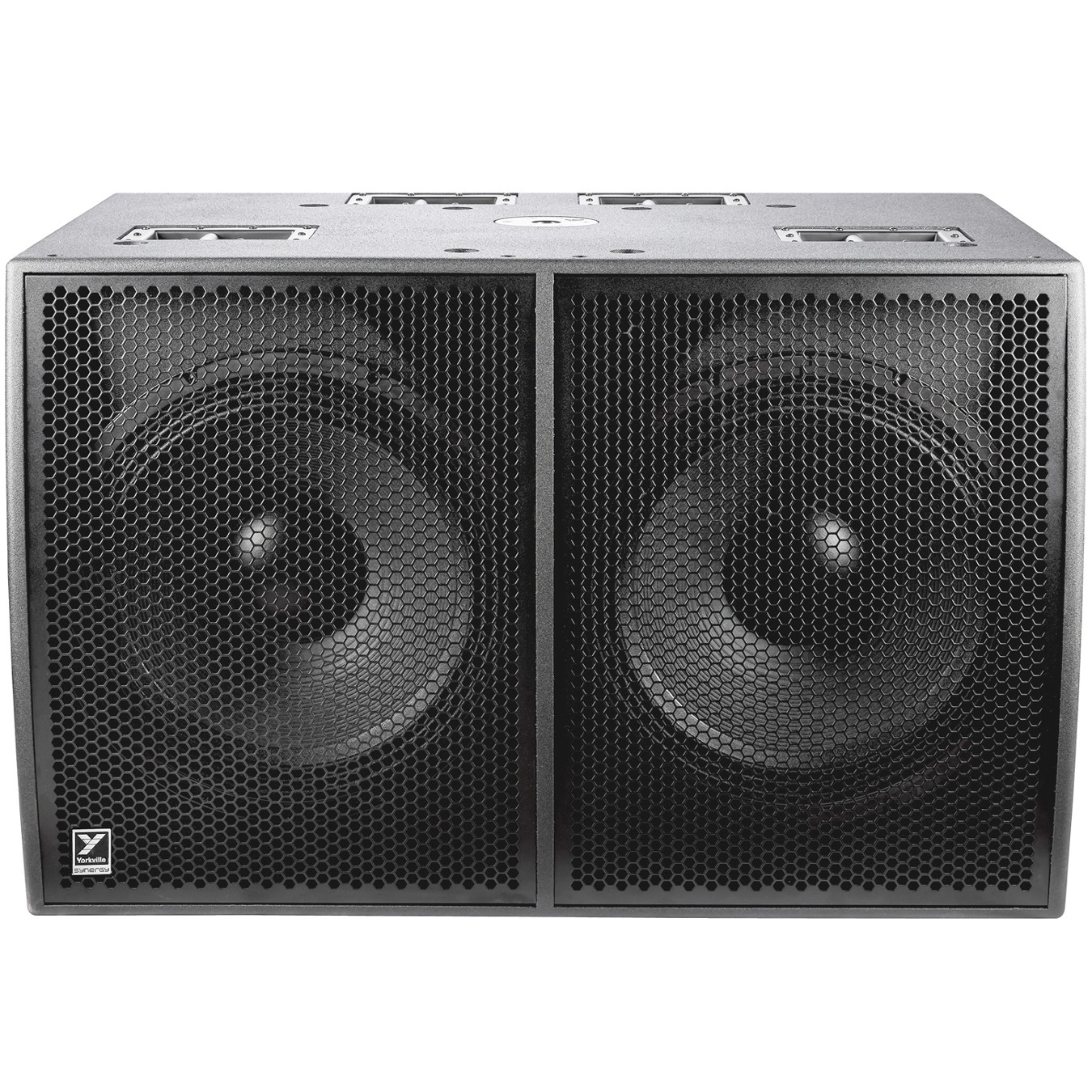

Yorkville SA221S Dual 21" Synergy Array Active Powered Subwoofer

The powerful SA221S dual 21" 6000W (17000W Peak) subwoofer is the perfect low-end companion to the Synergy Array series, Yorkville Sound's largest and most powerful point-source system to date. The SA221S can be combined directly with an SA153 as an independent system or in combination with the SA153 and SA315S setup as a 5-way system.

Features

Features

Bass Reflex powered subwoofer: 6000 Watts (program), 17,000 Watts (peak)
2 x 21" Neodymium woofers with 4.5" voice coil
Exceptionally high output and deep bass
Measured MAX SPL (C-Weighted, Max Hold): 130.6dB continuous, 142.6dB peak
Frequency response (Hz +/- 3dB): 28Hz - 100Hz
Crossover frequency (Hz): 50 and 100 Hz low-pass
Made in Canada

Specification

Program Power	6000 Watts Program (17000 Watts Peak)
Frequency Response (Hz +/- 3dB)	28 - 100Hz
Driver Configuration	2x21" LF woofer
Power Consumption (typ/max)	1440 VA / 1920 VA
Inputs	1 XLR with 2x XLR Parallel out, Impedance 35k ohms
Dimensions (H x W x D)	47.5" (1206.5 mm) x 29.75" (755.65 mm) x 32.75" (831.85 mm)
Weight	338.6 lbs (153.59 kg)
