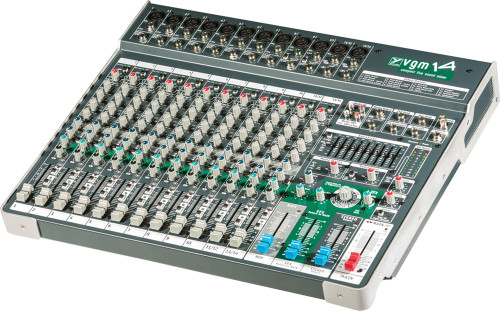

Yorkville VGM14 Passive Series 14-Channel Compact Live Sound Mixer
Write a Review
Yorkville VGM14 Passive Series 14-Channel Compact Live Sound Mixer
Part #:
VGM14
Model #:
VGM14
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Yorkville VGM14 Compact Live Sound Mixer
The VGM14 delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs. An IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.
Features
- Ten Mono Input Channels with XLR and ¼-inch TRS inputs
- Channel 9 and 10 Mono Inputs have a Hi-Z input switch
- Two Additional stereo line input channels (11/12 and 13/14)
- Additional XLR mono input per stereo channel for maximum 12 Mic inputs
- Input gain level control with Non-defeatable soft multi-slope compressor on every input
- 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
- 60mm Faders Throughout
- Global 48 volt Phantom Power
- Stereo 9-band graphic EQ Assignable Main/Monitor
- Stereo RCA Media Outputs with Level Control
- BREAK Switch (mutes all input channels)
- Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch)
- USB Audio I/O
- Zone/Sub Output with Level Control
- Main stereo TRS phone and XLR outputs
- Sixteen 24-bit digital audio effects
- Effects TRS output jack
- Effects defeat footswitch jack
- Effects return to Main and Monitor
- Stereo Return TRS jacks with fader
- Headphone Level Control
- Dual 10-segment LED Output Meter
- IEC removable line cord receptacle (No Adaptors)
- Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz
Specifications
| Number of Channels | 14 |
|---|---|
| Channel Inserts | 10 |
| Mono Channel EQ | 3-Band w/mid Sweep |
| Stereo Channel EQ | 4-Band |
| Balance Controls | 11/12, 13/14 |
| Pan Controls | 1 to 10 |
| Channel Overload Protection | Yes |
| Inputs - XLR (bal) | 12 |
| Inputs - 1/4-inch | 14 |
| Inputs - RCA (unbal) | 1 Stereo Pair |
| Solo Switches | Yes - All Channels |
| Mute Switches | Yes - All Channels |
| Hi Pass Switches | Yes - All Channels |
| Activity / Solo LED | Yes - All Channels |
| Clip / Mute LED | Yes - All Channels |
| Phantom Power | 48 volt + LED indicator |
| Internal Effects | 24 Bit Stereo / 16 Effects w/Modify Control |
| Auxiliary Sends | Yes |
| Effects Send | Yes |
| Effects Return | Yes |
| Effects Return to Main | Yes |
| Effects Return to Monitor | Yes |
| Reverb / Effects Footswitch | Yes |
| Record Outputs | Yes (RCA and USB) |
| Max Gain to Line Out -Mic Input (dB) | 80dB |
| Max Gain to Line Out -Line Input (dB) | 65dB |
| Mixer - Signal to Noise Ratio (dB) | Greater than 100dB |
| Mixer - Freq Response | 20Hz - 20kHz (Tone and EQ Flat,±2dB) |
| Mixer - Input Ref Noise to Line Out | -118dBv (@ 150 ohms) |
| Mixer THD (Main out w/ -10dB input) | Less Than 0.05% |
| Typical crosstalk -1 kHz | Less Than -60dB |
| CMRR @ 60Hz (min/typ) | 55dB/65dB |
| Power Consumption (typ/max) | 26VA (typical) |
| Cooling | Fan |
| Transformer Type | SMPS |
| Chassis Construction | Steel |
| Console Lamp Connector 12V DC (BNC) | Yes - 12V DC (BNC) |
| Other Features | Zone Output, Hi-Z Inputs (Ch 9 & 10) USB I/O |
| Dimensions (H x W x D) | 2.8" (71.12 mm) x 19" (483 mm) x 16" (406.4 mm) |
| Weight | 13 lbs (5.9 kg) |
