Yorkville YXL Tower12 12-Inch Column PA System with Bluetooth

The YXL Tower12 is a compact, powerful column PA system designed for portable sound reinforcement. Featuring a 12" subwoofer, four 3" midrange drivers, and a 3/4" high-frequency compression driver, it delivers 1550 watts of peak power and a full 45 Hz - 20 kHz frequency range, ensuring clear vocals and balanced music playback for small to medium venues.

Equipped with an onboard 3-channel mixer, Bluetooth connectivity, and three voicing modes, Concert, Club, and Speech, the YXL Tower12 adapts seamlessly to different performance environments. Up to 16 towers can be linked together, with three onboard mixers active simultaneously, providing scalable coverage for larger events.

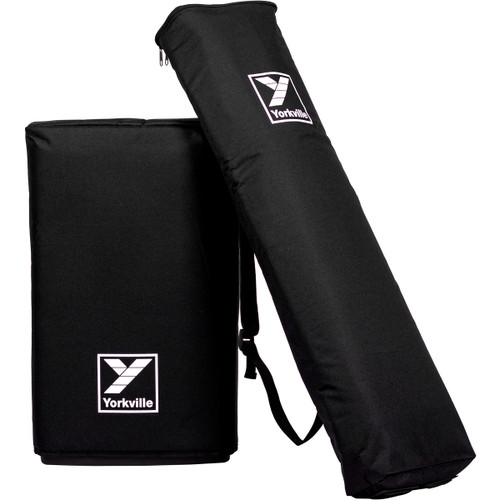

Designed for portability and flexibility, the speaker column mounts directly into the subwoofer or on the included extension column. A gig bag and subwoofer cover are included for easy transport, making the YXL Tower12 ideal for musicians, presenters, and mobile DJs who need professional sound on the go.

Features

Features

1,550 Watts peak power (1,250W subwoofer, 300W mid/high)
126 dB peak SPL (119 dB continuous)
Neodymium drivers: 12" subwoofer, 4 x 3" midrange, 3/4" high-frequency
Bluetooth receiver with wireless stereo playback support
Onboard 3-channel mixer
Three voicing modes: Concert, Club, and Speech
Includes gig bag for easy transport

Specification

Power Rating	1550W Peak (1250 Subwoofer, 300 Mid / High) 775W Program (625 Subwoofer, 150 Mid / High)
Max SPL	126 dB Peak (119 Continous)
Frequency Response	45 Hz - 20 kHz
HF Driver	3/4" Exit Neodymium Compression Driver
MF Drivers	4 x 3" Neodymium
LF Driver	12" Neodymium
Channel 1 Input	Mic (XLR) / Instrument (1/4")
Channel 2 Input	Mic (XLR) / Line (1/4")
Channel 3 Input	Aux (1/8" Stereo) / Bluetooth
Master Volume Control	Master Level, Sub Level
Link In/Out (Type/Configuration)	XLR
LED Indicators	Ch. 1 Clip, Ch 2. Clip, Ch. 3 Clip, Master Activity, Mode (Concert, Club, Speech), Bluetooth Status
Subwoofer (H x W x D)	23.9" (607 mm) x 12.6" (320 mm) x 16" (406 mm)
Speaker Column (H x W x D)	32.8" (833 mm) x 3.6" (91 mm) x 3.6" (91 mm)
Extension Column (H x W x D)	32.5" (826 mm) x 3.6" (91 mm) x 3.6" (91 mm)
Assembled Height	81.9" (2080 mm)
Weight	41.1 lbs (18.6 kg)
Shipping Weight	51.1 lbs (23.18 kg)
