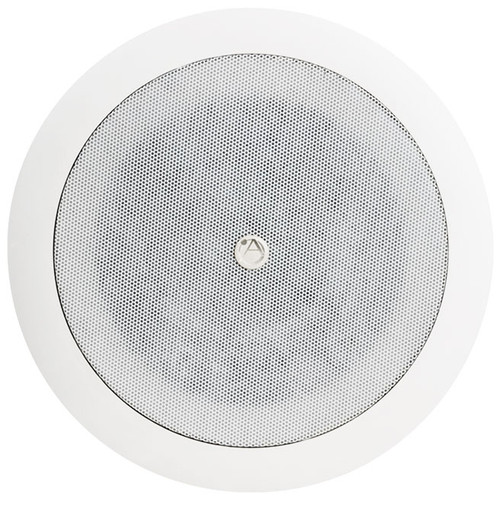

Atlas Sound FAP42T 4" In-Ceiling Loudspeakers
The Atlas Sound FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation. Its low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. This in-ceiling speaker will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. It is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
- Features
Features
- 4 pole detachable "Phoenix" style connector allows easy pre-wiring and is convenient for daisy-chaining additional strategy full range speakers or subwoofers
- Easy installation in drop tile or sheetrock ceilings via C-Ring/V-Rail tile bridge and "Dog Leg" mounting system (included)
- Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low-frequency response while providing increased output for higher SPL applications
- Extended low-frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8-ohm direct coupled operation
- Perfect companion with the FAPSUB subwoofer system when sub bass is required
- Press-fit grille blends perfectly into contemporary architecture
- Also available in black (FAP42T-B)
- Specification
Frequency Response 75Hz - 20kHz Power Taps 1W, 2W, 4W, 8W, 16W & 8Ω Speaker Type Coaxial Dispersion 130° Sensitivity 88dB average UL Listed/Standard 1480 Woofer Size 4" (102 mm) Power Handling 25 watts Transformer Taps at 70.7V 1, 2, 4, 8, & 16 watts & 8Ω bypass Woofer 4" poly cone with butyl rubber surround HF Driver Coaxially mounted PEI dome tweeter Magnet Weight 0.8 lbs (0.36 kg) Cut-Out Diameter 9" (229 mm) Dimensions (Dia x H) 10.5" (267 mm) x 8.88" (225 mm) Shipping Weight (Pair) 24 lbs (10.89 kg) - Documents
