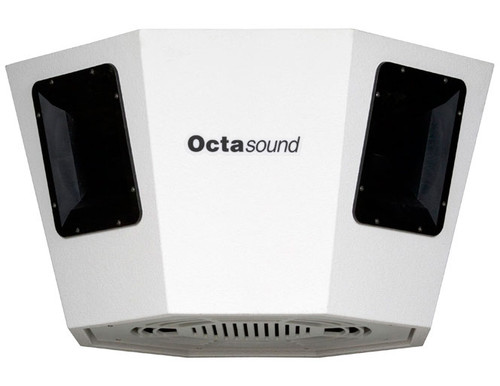

Octasound SP840A 15" 360° x 180° Central Speaker System

By Octasound

Octasound SP840A 15" 360° x 180° Central Speaker System

Write a Review
Part #:
SP840A
Model #:
SP840A
Availability: 90 Day Lead Time Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Octasound SP840A 15" central speaker system can withstand an input power of 300 watts RMS. The KDM SP840A also contains a built-in, self-resetting thermal protective circuit. This protects the high frequency drivers from excessive and distorted (10% T.H.D.) input levels.

Description

Octasound SP840A 15-inch Omnidirectional Central Speaker System

The SP840A 15" central speaker system has a tuned port enclosure that contains a highly efficient 15" woofer matched to four compression horns and drivers. The frequency spectrum of the woofer and horns is determined by an internal crossover network that is optimized to maximize performance. This combination ensures full fidelity reproduction from an extremely compact central speaker system.

The KDM SP840A can withstand input power of 300 watts RMS. The KDM SP840A also contains a built-in, self-resetting thermal protective circuit. This protects the high frequency drivers from excessive and distorted (10% T.H.D.) input levels.

The KDM SP840A is extremely sensitive with a Sound Pressure Level (S.P.L.) of 104 dB per watt at 1 meter, hence very little amplifier power is required to obtain the required sound pressure levels. At maximum RMS input power the KDM SP840A can produce 128 dB S.P.L. at one meter.

Features
  • Up to 35,000 Square Feet sound coverage
  • Impact Resistant Rugged Polyurethane Elastomer Finish
  • Pucks, Basketballs, Lacrosse Balls, Projectiles - No Problem!
  • 4 Suspension Points - Ready to Hang right out of the box
  • High Humidty Moisture Resistant Low Temperature Design
  • Long Lasting Performance and extremely durable components
  • 4 High Compression Horn Drivers, 1 Sub-Woofer 15"
  • Manufactured in North America using Eminence components

Specifications
Frequency Response 30 Hz to 20 kHz ± 10 dB (on axis)
Optimum Power 50 to 250 watts RMS total
Power Handling 300 watts RMS total, 600 watts peak
Impedance 8 ohms nominal
Dispersion 360º Horizontal, 180º Vertical
Sensitivity 104 dB/watt/meter on axis
Temperature Range 20ºC to 55ºC (-4ºF to 131ºF)
Humidity Range 0% to 100% Non Condensing
Weight 105 lbs
Material Exterior Treated Wood Composite Panel
Mounting Hardware Four 11⁄2” Eye Nuts, 3⁄4” I.D. Eye 1⁄4 x 20 Thread
Shipping Weight 145 lbs
Shipping Dimension 32” (81.3cm) Square, by 24” (61cm) high
Coverage 360° x 180°— 35,000 sq ft (140 x 250 ft.)
Woofer / Midrange 15", 120 oz. Magnets, 3" Voice Coil
Horns (4) 9 x 9 Glass Filled ABS
Drivers (4) Exponential Compression, 24 Oz Magnets, 3" Voice Coils
Shipping Dimensions (H x W x D) 24” (610 mm) x 32” (813 mm) x 32” (813 mm)
Weight 105 lbs (47.2 kg)
Shipping Weight 145 lbs (65.8 kg)

DOCUMENTS

Related Products

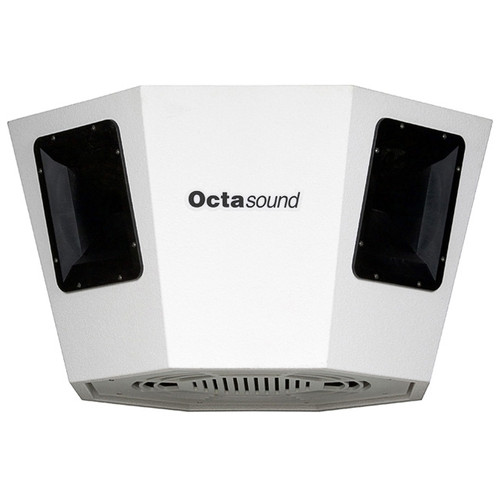

Gym Sound System with Octasound SP840A 360° x 180° Ceiling Mount Speaker Cluster and Alesis MultiMix 10 Bluetooth Mixer Gym Sound System with Octasound SP840A 360° x 180° Ceiling Mount Speaker Cluster and Alesis MultiMix 10 Bluetooth Mixer

Gym Sound System with Octasound SP840A 360° x 180° Ceiling Mount Speaker Cluster and Alesis MultiMix 10 Bluetooth Mixer

Gymnasium Sound System with Octasound SP840A Central Speaker and Alesis MultiMix 10 Bluetooth Mixer This gym sound system has been engineered for performance, versatility, and durability. The rugged...
MSRP: $8,358.52
$7,437.60

Usually arrives in 5-9 business days.

MSRP: $8,358.52
$7,437.60
Add to Cart The item has been added

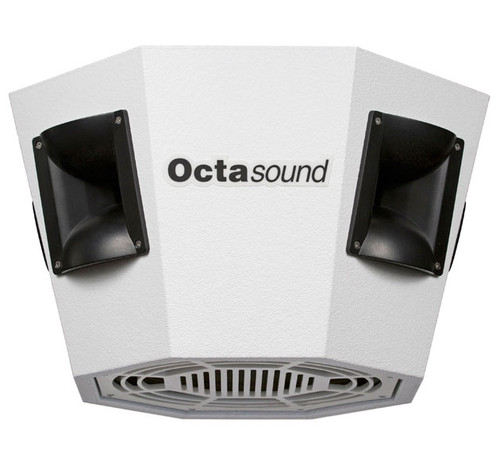

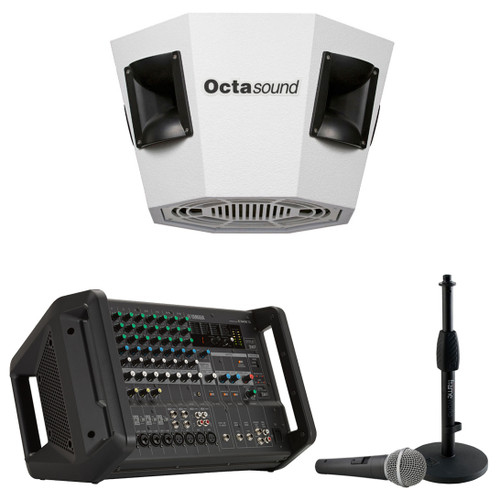

Gymnasium Sound System with Octasound SP820A Loudspeaker and Yamaha Powered Mixer Gymnasium Sound System with Octasound SP820A Loudspeaker and Yamaha Powered Mixer
