The CS3 System is a modular and flexible conference system for small and medium size applications. Its reliable components can be easily set up, wired and expanded. One CS3 base unit can support 60 microphones. The base unit connects to all relevant devices like PA, recording, external audio sources and camera control systems. Different operating modes enable automatic or controlled conferences, even without PC remote.

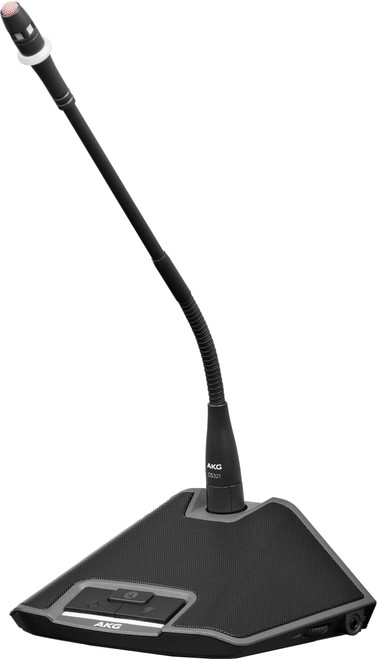

The CS3 microphone station comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30cm (12in) long gooseneck and the 50cm (20in) long CS521.
The CS3 combines easiness in setup and use with professional AKG audio quality. The rugged and elegant design fits in any venue.
| CS3 BU (Base Unit) | |
|---|---|
| Power Supply | SMPS 100-240V (50Hz/60Hz） |
| Static Consumption | 13W |
| Nominal Power Consumption | 350W |
| Output Power | ≤110W / 24V each way |
| Mode | Unbalanced |
| Frequency Response | 50Hz-20kHz |
| SNR | >80dB |
| Harmonic Distortion | |
| Harmonic Distortion at Overload | |
| Crosstalk Attenuation (1kHz) | >50dB |
| Dimensions (H x W x D) | 3.48" (88.4 mm) x 18.98" (482 mm) x 11.06" (281 mm) |
| Weight | About 11.46 lbs (5.2 kg) |
| CS3 CU (Chairman Unit) / CS3 DU (Delegate Unit) | |
| Power Supply | DC24V Supplied by the Base Unit |
| Power Consumption | 3W |
| Loudspeaker Power | 2W |
| SNR | >80dB |
| Frequency Response | 50Hz-20kHz |
| Intercommunication | DIN 8-pole |
| Headphone Output | 9dBu, 8-32 ohm, 3.5 mm |
| Crosstalk Attenuation | >80dB |
| Harmonic Distortion | |
| Dimensions (H x W x D) | 2.48" (63 mm) x 6.69" (170 mm) x 5.63" (143 mm) |
| Weight | About 2.2 lbs (1 kg) |
