AKG P820 Tube High-Performance Dual-Capsule Tube Microphone

Description

AKG P820 Tube High-Performance Dual-Capsule Tube Microphone

The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.

Features

• Cardioid, omnidirectional and figure-8
• Dual 1" capsule
• Switchable 20 dB pad
• Switchable low-cut filter at 80 Hz
• 155 dB maximum SPL
• Remote-control unit
• 9 selectable polar patterns
• Audio/Control 7-Pin XLR cable
• Spider shockmount
• Metal carrying case

Specifications

General
Audio Frequency Bandwidth	20 to 20000 Hz
Equivalent Noise Level	16 dB-A
Sensitivity	20 mV/Pa
Signal To Noise	78 dB-A
Preattenuation Pad	-20 dB
Bass Cut Filter	80 - 12 dB/octave (Selectable on Remote Control Unit) Hz
Electrical Impedance
Recommended Load Impedance	>= 1000 Ohms
Polar Patterns	Cardioid Omnidirectional Figure of Eight
Audio Output
Type	Balanced XLR
Gender	Male
Contacts	3-Pin
Power Supply
Primary Fuse	125 mA / 250 V Slow-Blow
Powering	210-240 VAC or 110-120 VAC (Selectable)
Dimensions (Dia x L)	2.18" (54 mm) x 8.34" (212 mm)
Net Weight	1.686 lbs (0.765 kg)

DOCUMENTS

In The Box

• (1) P820 Tube Microphone

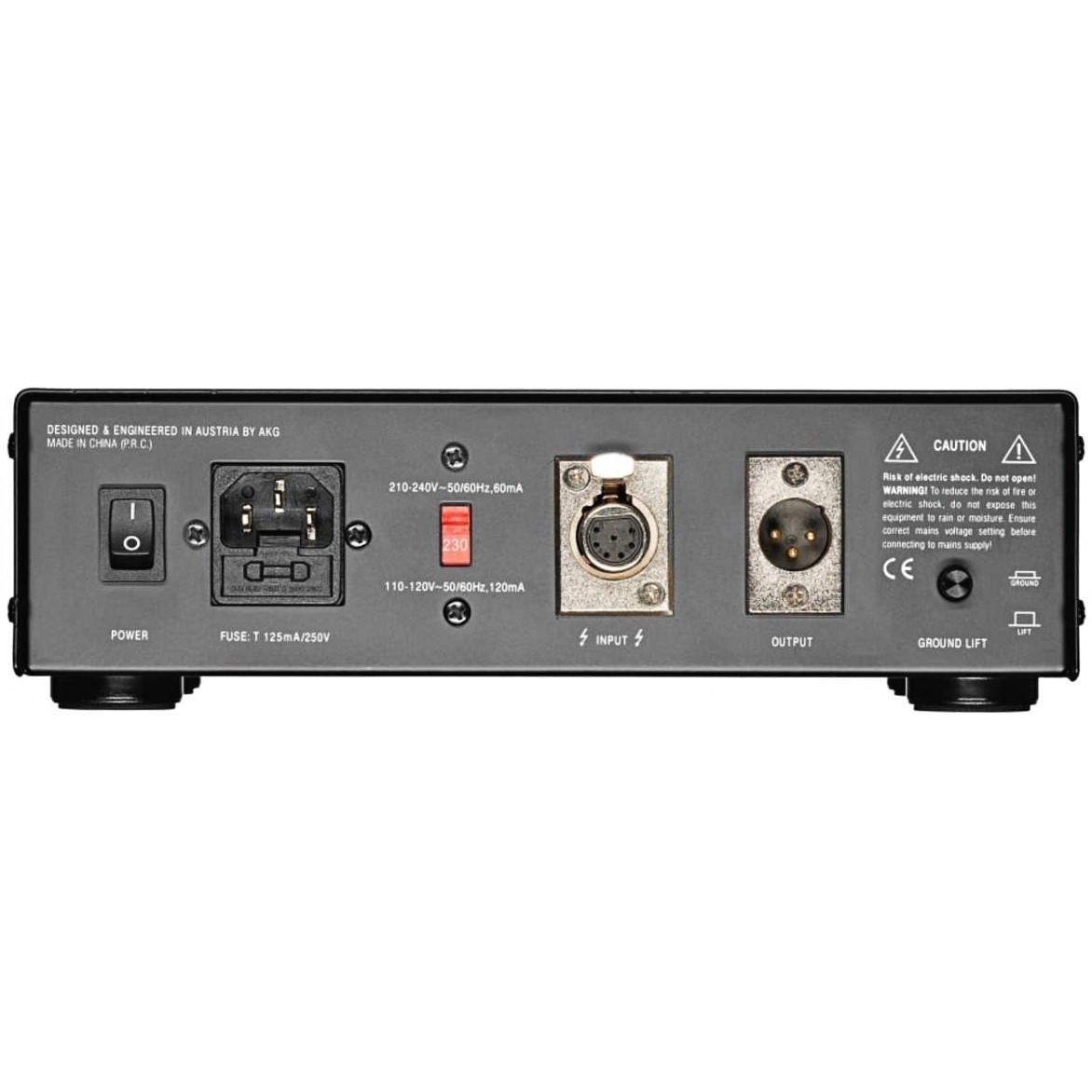

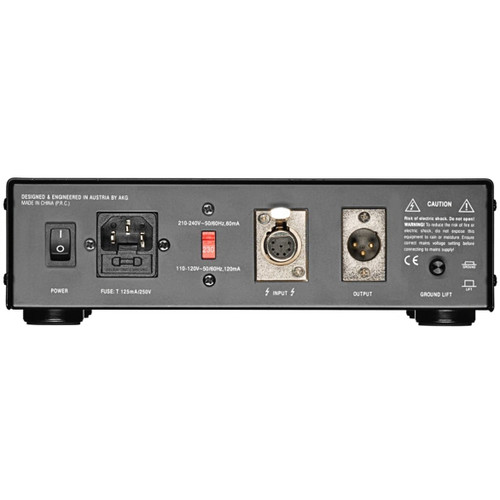

• (1) Remote Control Unit

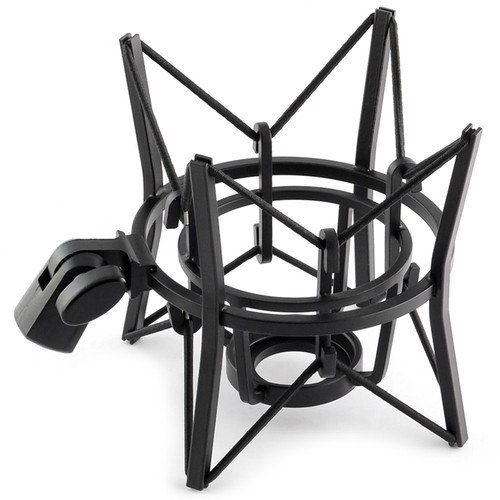

• (1) Spider Shock Mount
• (1) Metal Carrying Case
• (1) Audio/Control Cable
• (1) US Type Power Cord
• (1) UK Type Power Cord
• (1) European Type Power Cord
