The ALF-12X-SDIC is a full HD 1080p PTZ camera featuring a 12x optical zoom lens and a black finish, making it a professional solution for medium to large meeting rooms, boardrooms, conference venues, and houses of worship. Compatible with video conferencing software such as Microsoft Teams and Zoom, this camera delivers high-quality video at frame rates up to 60fps for clear, smooth visuals and real-time synchronization.
Its PTZ functionality supports flexible camera positioning, while its connectivity options make it suitable for professional video conferencing, presentations, and live streaming applications.
Most Alfatron products come with a 7-year limited warranty. Register your product with Alfatron to receive an additional 3-year extended warranty on eligible products, for 10 years of total coverage.
| Camera Parameter: | |
|---|---|
| Optical Zoom | 12X f = 3.9～46.8 mm |
| Sensor | 1/2.8-inch-high quality HD CMOS sensor |
| Effective Pixels | 16: 9, 2.07 megapixels |
| Video Format | HDMI/SDI video format 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97 USB 3.0 interface video format: 1920x1080 @ 60 fps Max |
| View Angle | 6.3° (Tele） 72.5° (Wide） |
| AV | F1.8 - F2.4 |
| Digital Zoom | 10x |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus/Aperture/Electronic Shutter | Auto/Manual/One Push Focus |
| Iris | Auto/Manual |
| Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55 dB |
| Input/output Interface: | |

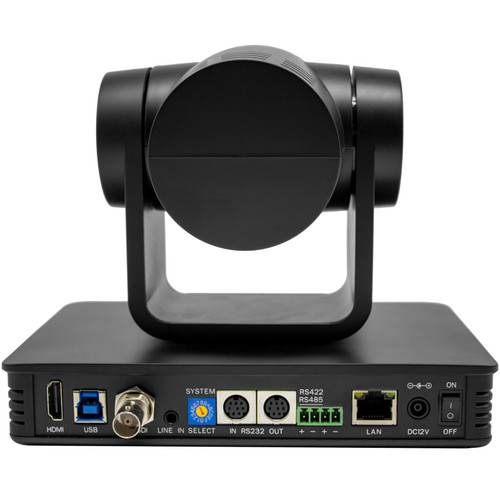

| Video Interfaces | Interfaces: USB 3.0 (compatible with USB 2.0), HDMI, SDI, LAN (POE), RS232-IN/OUT, RS422(compatible with RS485), A-IN, Rotary dial code, on-off switch |
| Video Output | HDMI, SDI, LAN, USB 3.0 |
| Video Stream | Dual-stream output |
| Video Compression Format | LAN Interface: H.265, H.264, Dual stream output USB 2.0 Interface: H.265, H.264, MJPEG USB 3.0 Interface: YUV |
| Audio Input Interface | Double-track 3.5 mm linear input |
| Audio Output Interface | HDMI, SDI, LAN |
| Audio Compression Format | AAC/MP3/G.711A |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, supports network VISCA control protocol Supports remote upgrade, remote restart, remote reset |
| Control Interface | RS232, RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400 bps |
| Power Interface | HEC3800 outlet (DC12V), POE |
| Input Voltage | DC12V±10% |
| Input Electric Current | Maximum: 1A |
| Power Consumption | Maximum: 12W |
| PTZ Parameter: | |
| Pan/Tilt Rotation | ±170°, -30°～+90° |
| Pan Control Speed | 0.1 -60°/sec |
| Tilt Control Speed | 0.1-30°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by the remote controller) |
| Stored Temperature | -10°C～+60°C |
| Storage Humidity | 20%～95% |
| Working Temperature | -10°C～+50°C |
| Working Humidity | 20%～80% |
| Dimensions (H x W x D) | 5.94" (150.9 mm) x 7.01" (178 mm) x 4.55" (115.5 mm) |
| Weight | 3.04 lbs (1.38 kg) |
