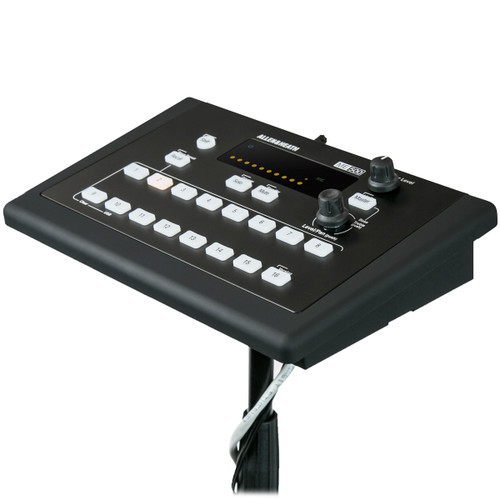

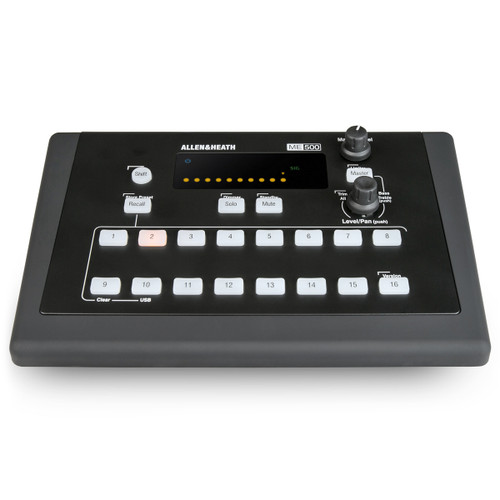

Allen & Heath ME-500 16-Channel Personal Mixer
The ME-500 is a powerful walk-up-and-mix solution that's quick to set up and easy for just about anyone to learn in moments. The ME-500 personal mixer's intuitive hands-on controls and crisp visual display make it easy for musicians to quickly build and control their own monitor mixes. With plug 'n' play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.
With ME-500 there’s no time-consuming configuration of individual units. The first 16 mono / stereo channels and / or mixes assigned from the mixer will be automatically mapped to ME-500’s 16 select keys, so it’s fast and simple to deploy personal mixers in pressured situations such as festivals. Levels, pan and mutes can all be stored and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-500s.
- Features
Features
- 16 Mono / 16 stereo inputs with level and pan control
- Master 2 band EQ and Limiter
- Automatic key assignment
- 8 User presets
- 3.5 mm and 1/4" headphone outputs
- Solo and Mute keys
- Mains or PoE powered
- Daisy chain or use standard PoE Ethernet hubs
- Mic stand bracket + headphone hanger sold separately
- Specification
Frequency Response 10Hz to 20kHz (+0/-1dB) AD/DA Conversion 24-bit Delta/Sigma, 48kHz Residual Output Noise -95dBu PoE Requirements 802.3af (15.4W at source) or 802.at (25.5W at source) Headphone Out 300mW + 300mW into 100Ω load Max: +21dBu External PSU IN: 100-240V AC , 50/60Hz / OUT: 12V DC , 1.25A PoE Requirement 10W (requires 15W from PoE hub) Dimensions (H x W x D) 2.7" (70 mm) x 9" (230 mm) x 6.3" (160 mm) Weight 2.4 lbs (1.1 kg) - Documents
