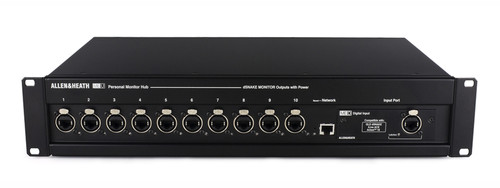

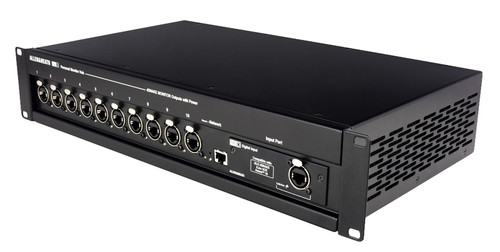

The Allen & Heath ME-U is a touring grade, 10 port PoE hub for use with Allen & Heath ME-1 personal mixers. It provides power and up to 40 channels of audio to connect to multiple ME-1 mixers. ME-U comes with a standard input card to interface with Allen & Heath digital mixers or Aviom® A-Net® sources. This card can be replaced with an option card to interface the ME with third party mixing systems via Dante, MADI, Waves SoundGrid or EtherSound.
If you’re using Allen & Heath digital consoles, ME-U gives you the option to take your ME system to the next level of professionalism, eliminating the clutter of separate power supplies for each directly connected ME-1 or ME-500 unit and providing a high quality, road-proven alternative to standard PoE hubs. If you’re using other console brands, ME-U is your gateway to the ME system, with MADI, Dante and Waves SG option cards allowing a digital feed of up to 40 sources from third party systems.
| Input | Card option slot – 40 channels 48kHz digital audio ME-D (dSNAKE, ACE, Aviom®) card provided Aviom® A-Net16 compatible -16 channels M-Dante network card option available M-MADI card option available M-ES EtherSound card option available |
|---|---|
| Outputs | 10 ports Compatible with ME mixers Locking EtherCon connectors PoE available on all output ports |
| Network Port | Ethernet TCP/IPSystem setup + receiving iLive channel data |
| Setup | Uses PC or Mac web browser Received or manual channel names Received or manual odd/even links iLive mode for receiving iLive names/linksChange TCP/IP address |
| Default IP Address | 192.168.1.40 |
| Subnet Mask | 255.255.255.0 |
| Default Gateway | 192.168.1.254 |
| Mains Input | 100-240V AC 47-63Hz 250W |
| PoE Capability | 15W at each ME-U output |
| Dimensions (H x W x D) | 3.6" (92 mm) x 19" (483 mm) x 10" (253 mm) |
| Weight | 10.1 lbs (4.6 kg) |
