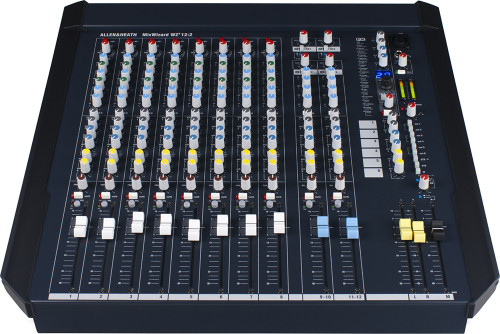

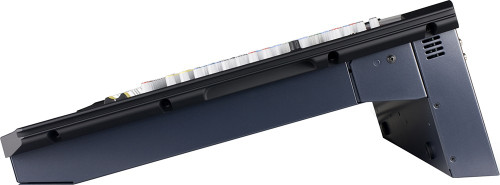

The Allen & Heath WZ4 12:2 is your ideal companion for those scenarios where you don't need masses of channels, but you still need to deliver superb audio quality. The 2 dual stereo channels are perfect for stereo playback or for hooking up keyboards and other stereo instruments. WZ4 12:2 features our acclaimed 4 band EQ with 2 sweepable mids, high-quality 100mm faders, 6 aux sends, 12 segment bar graph metering and our unique QCC connector system for easy desktop, rack or flight case mounting. New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback. If you’re looking for professional grade, all-purpose analog mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
| Performance | |
|---|---|
| Maximum Output Level | XLR +26dBu into 600 ohms max load, Jack +21dBu into 2k ohm max load |
| Internal Headroom | Channels +21dB, Mix +23dB |
| Meters | 3 colour LED, quasi peak response |
| Sensitivity | 0VU = +4dBu at XLR output |
| Master Meters | 12 segment, -30 to +16dB |
| Channel Meters | 2 segment, -12, +16dB (5dB before clip) |
| Frequency Response | 10Hz to 30kHz +/-0.5dB |
| THD+n at +10dBu 1kHz | Channel to mix out < 0.004% |
| Crosstalk at 1kHz | |
| Fader Shutoff | >90dB |
| Channel Mute | >90dB |
| Inter Channel | >90dB |
| Noise | |
| rms | 22Hz to 22kHz |
| Mic EIN | -127dB |
| Residual Output Noise | < -95dBu (-99dB S/N) |
| LR Unity Fader Mix Noise | < -83dBu (-87dB S/N) |
| Channel HPF | 12dB/octave below 80Hz |
| Mono EQ | |
| HF | Shelving, +/-15dB, 12kHz |
| HM | Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8 |
| LM | Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8 |
| LF | Shelving, +/-15dB, 80Hz |
| Stereo EQ | |
| HF | Shelving, +/-15dB, 12kHz |
| HM | Peak/dip, +/-15dB, 2.5kHz, Q=1.8 |
| LM | Peak/dip, +/-15dB, 250Hz, Q=1.8 |
| LF | Shelving, +/-15dB, 80Hz |
| Power supply | |
| IEC Input | 100-240V, 50/60Hz auto sensing |
| Power Consumption | 45W max |
| Mains Fuse | T630mA L 20mm |
| Mechanical | |
| Free Standing Dimensions (H x W x D) | 7.7" (194 mm) x 20" (507 mm) x 20.9" (530 mm) |
| Rack Mounted Underside Connectors (H x W x D) | 17.5" (444 mm) x 19" (483 mm) x 4.8" (122 mm) |
| Rack Mounted Rear Connectors (H x W x D) | 19.6" (497 mm) x 19" (483 mm) x 7.6" (193) |
| Unpacked Weight | 24 lbs (11 kg) |
| Packed Weight | 31 lbs (14 kg) |
