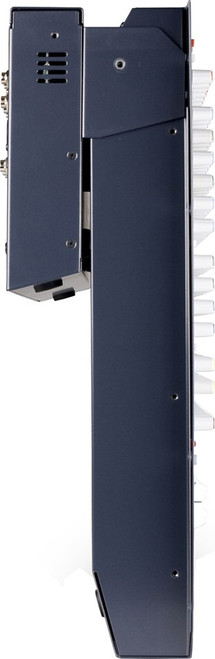

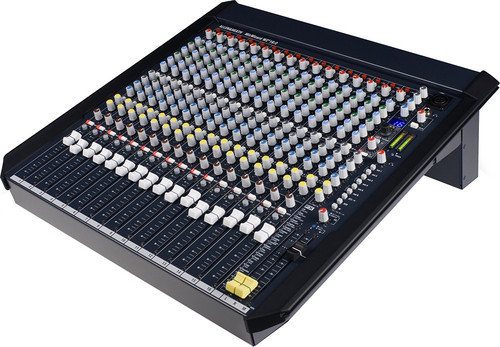

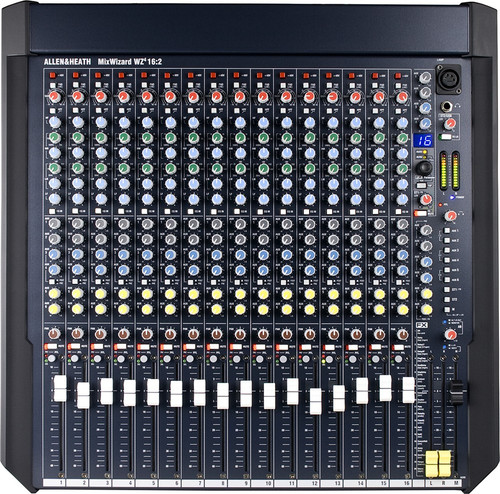

With its simplicity, quality and plentiful inputs, the Allen & Heath MixWizard WZ4 16:2 Rackmountable Mixer will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.
WZ4 16:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting. New features for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets, EQ in/out switching and the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback. If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
| Maximum output level | XLR +26dBu into 600 ohms max load,Jack +21dBu into 2k ohm max load |
|---|---|
| Internal headroom | Channels : +21dB,Mix : +23dB |
| Meters | 3 colour LED, quasi peak response |
| Sensitivity | 0VU = +4dBu at XLR output |
| Master meters | 12 segment, -30 to +16dB |
| Channel meters | 2 segment, -12, +16dB (5dB before clip) |
| Frequency response | 10Hz to 30kHz +/-0.5dB |
| THD+n at +10dBu 1kHz | Channel to mix out < 0.004% |
| Fader shutoff | >90dB |
| Channel mute | >90dB |
| Inter channel | >90dB |
| rms | 22Hz to 22kHz |
| Mic EIN | -127dB |
| Residual output noise | < -95dBu (-99dB S/N) |
| LR unity fader mix noise | < -83dBu (-87dB S/N) |
| Channel HPF | 12dB/octave below 80Hz |
| HF | Shelving, +/-15dB, 12kHz |
| HM | Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8 |
| LM | Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8 |
| LF | Shelving, +/-15dB, 80Hz |
| HF | Shelving, +/-15dB, 12kHz |
| HM | Peak/dip, +/-15dB, 2.5kHz, Q=1.8 |
| LM | Peak/dip, +/-15dB, 250Hz, Q=1.8 |
| LF | Shelving, +/-15dB, 80Hz |
| IEC input | 100-240V, 50/60Hz auto sensing |
| Power consumption | 45W max |
| Mains fuse | T630mA L 20mm |
| Free Standing Dimensions (H x W x D) | 7.7” (194 mm) x 20" (507 mm) x 20.9" (530 mm) |
| Rack mounted Underside Connectors Dimensions (H x W x D) | 17.5” (444 mm) x 19" (483 mm) x 4.8" (122 mm) |
| Rack mounted Rear Connectors Dimensions (H x W x D) | 19.6" (497 mm) x 19" (483 mm) x 4.8" (122 mm) |
| Unpacked Weight | 28lbs (13 kg) |
| Packed Weight | 35lbs (16 kg) |
