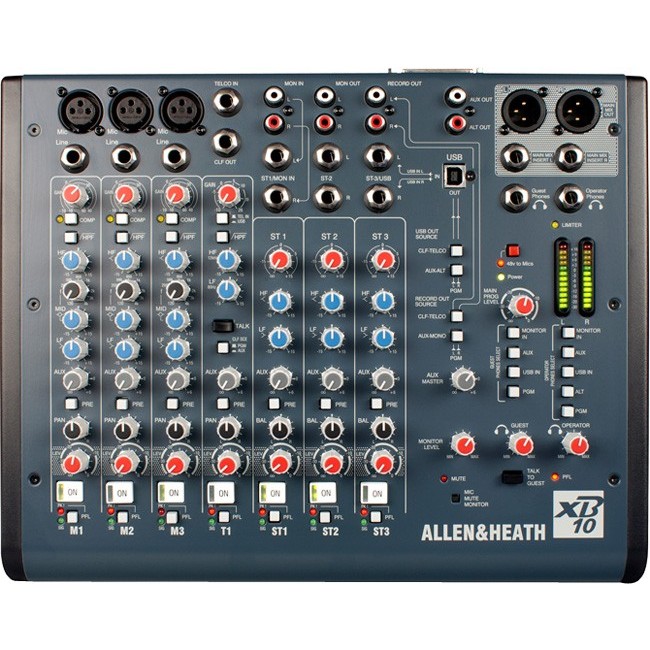

The ultra-compact Allen & Heath XB-10 Compact Broadcast Mixer is perfect for small radio or internet broadcast studios, college and university radio stations, podcasting, content creation and more. Despite its tiny footprint, XB-10 is packed with the kinds of specialised broadcast features that normally come at a much higher price. Radio-friendly tools include a telephone communication (telco) channel, mic channel ON switch sensing, stereo channel start/cue outputs for CD deck transport control and automatic muting of speaker outputs. A separate monitor mix can be created for operator and guest or presenter, and the operator can speak off-air to the studio or telephone callers using the ‘Talk’ feature.
XB-10’s preamps use low noise discrete transistor circuitry to achieve high gain and excellent linearity. Each mic channel comes equipped with our innovative CompACT compressor to keep the dynamic range of a presenter microphone under control. A variable limiter on the main output ensures that the final mix to air does not saturate expensive broadcast equipment. The plug-n-play USB connection can be used for VoIP telephone calls, recording program material, playing jingles and more.
| Mono channel Mic input (XLR) | -10 to -60dBu for nominal (+11dBu in max) |
|---|---|
| Mono channel Line input (TRS Jack socket) | +10 to -40dBu (+30dBu maximum) |
| Stereo input (TRS Jack sockets) | 0dBu nominal (control = Off to +15dB) |
| Stereo input (RCA phono sockets) | 0dBu nominal (control = Off to +15dB) |
| Telco channel input (TRS) | +10 to -26dBu (+30dBu maximum) |
| External monitor input (RCA phono sockets) | 0dBu Nominal |
| PGM L & R outputs (XLR) | +4dBu nominal. +25dBu maximum |
| PGM L & R inserts (TRS jack sockets) | -2dBu nominal. +21dBu maximum |
| Aux output (RCA phono socket) | 0dBu nominal. +21dBu maximum |
| Rec outputs (RCA phono sockets) | 0dBu nominal. +21dBu maximum |
| Telco cleanfeed output (TRS Jack socket) | 0dBu nominal. +21dBu maximum |
| CRM Speaker outputs (RCA phono sockets) | 0dBu nominal. +21dBu maximum |
| Mic in to PGM L/R Out, 15dB gain, 1kHz, +10dBu out | 0.002% |
| Mic in to PGM L/R Out, 30dB gain, 1kHz, 0dBu out | 0.006% |
| Line in to PGM L/R out, 0dB gain, 1kHz, 0dBu out | 0.005% |
| Telco in to PGM L/R out, 0dB gain, 1kHz, 0dBu out | 0.004% |
| Stereo in to PGM out, 0dB gain, 1kHz, +10dBu out | 0.002% |
| USB Audio In/Out | USB 1.1 compliant 16bit |
| Sample Rate | 32, 44.1, or 48kHz |
| Mic Pre EIN @ max gain 150R input Z 22-22kHz | -126dBu |
| PGM out, PGM fader = 0, 22-22kHz | -103dBu |
| Aux out, Alt out, Rec out = 0, 22-22kHz | < -93dBu |
| Analogue Headroom from nominal (0Vu) Outputs | 21dB |
| Analogue Headroom from nominal (0Vu) Mix point | 24dB |
| USB in & out headroom from nominal (0Vu) | 14dB |
| Mic in to PGM L/R Out, 30dB gain | +0.5/-1dB 10Hz to 30kHz |
| Line in to PGM L/R out 0dB gain | +0.5/-1dB 10Hz to 20kHz |
| Stereo in to PGM L/R out | +0.5/-1dB 10Hz to 30kHz |
| Dimensions (H x W x D) | 3.7" (95 mm) x 13.2" (336 mm) x 10.8" (275 mm) |
| Weight Unpacked | 7.5 lbs (3.4 kg) |
| Weight Packed | 10.1 lbs (4.6 kg) |
