Details

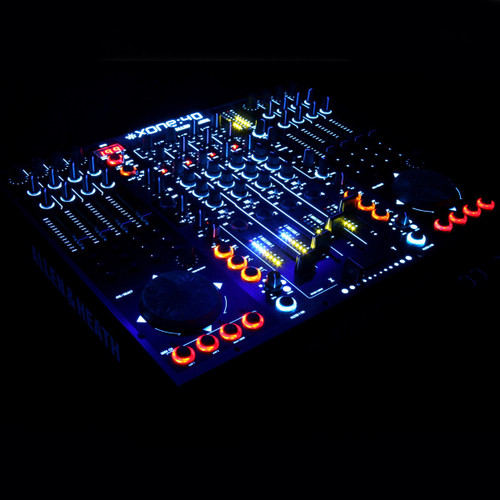

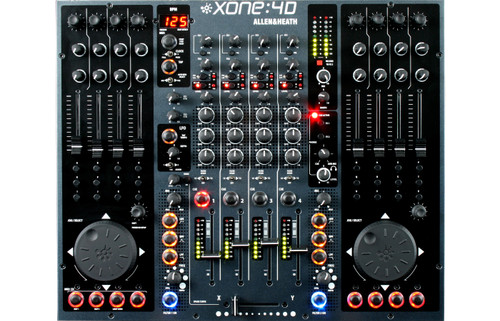

The Xone:4D continues the seamless integration of computer-based digital media into the traditional DJ workspace, but with a further enhanced feature set. Combining a fully featured, high specification professional analogue DJ mixer with 105 MIDI controllers and 227 MIDI messages, a completely new, high-end, 96 kHz / 24-bit 20 channel Allen & Heath-designed USB 2.0 soundcard, the progressive XONE:4D has been developed in conjunction with some of the world’s most cutting-edge DJ/producers.
It is a unique DJ workstation combining a high quality analogue DJ mixer with extended software controller functionality. The 20-channel USB2 soundcard provides multiple routing options, enabling vast capabilities for live recording, sampling and playback. For the DJ who requires extended MIDI control of up to 4 software decks simultaneously, 4D is a luxurious hybrid controller to elevate your performance.
New features for the 4D include the new 20-channel USB 2.0 soundcard, a completely new BPM counter, assignable LFO with step VCF-filter and fresh new paint.- Features
Features
Mixer
- 4 multi-input stereo channels
- Switchable phono or line input stages, RIAA preamps on 3 channels
- Soundcard output routing switches for each channel
- 3-band total kill EQ +6dB to off
- 2 FX sends, FX1 with pre/post selection
- 2 analogue VCF filters – low, band & high-pass, resonance, frequency and ‘on’ switch
- 2 stereo returns
- BPM LED display
- Headphone monitor (3.5mm and 1/4″ sockets) with mix/cue control
- Assignable LFO editable waveform
- Mic input on XLR with level control and 2-band EQ, routable directly to soundcard
USB 2.0 Soundcard
- 20 channel 96 kHz/24-bit USB 2.0
- PC and Mac drivers
- 10 in/10 out (4 analogue + 1 digital stereo inputs and outputs)
- Soundcard inputs fed from mic, FX1, FX2, main mix or stereo channels 1-4 pre or post fade
MIDI Control
- Total of 227 mappable MIDI messages can be sent from select mixer controls
- Shift mode function for double layer
- Compatible with any software that has MIDI assignable functions
- 105 MIDI controls, including dedicated MIDI sections containing:
- 8x60mm linear faders
- 16 detented rotary pots
- 50 switches
- 2 jog wheels
- 8 illuminated push switches
- Specification
Model Xone:4D Product Type DJ Mixer Main outputs +4dBu XLR Monitor 0dBu RCA FX sends -2dBu RCA Maximum output level +26dBu Mic Sensitivity -45 to -15dBu RIAA input sensitivity 7-100mV 47K/330pF Frequency response Line in to Mix out 20 Hz to 30KHz +0/-2dB Distortion at 1kHz Line in at +0Vu out <0.02% Main Mix noise 22Hz— 22KHz unweighted <-80dBu (84dB S/N) Residual Mix noise22Hz— 22KHz unweighted <-97dBu Equalization 3-band +6dB/off (kill), 120Hz, 1.2kHz, 10kHz Fader Shutoff <-90dB Desktop Weight 5kg (11 lbs) Packed Weight 6 kg (13.2 lbs) Desktop Dimensions (W x H x D) 432 mm (17") x 88 mm (3.5") x 358 mm (14") Rack ears fitted Dimensions (W x H x D) 483 mm (19") x 88 mm (3.5") x 358 mm (14") Packed Dimensions (W x H x D) 575 mm (22.6") x 195 mm (7.7") x 490 mm (15.7") - Documents
