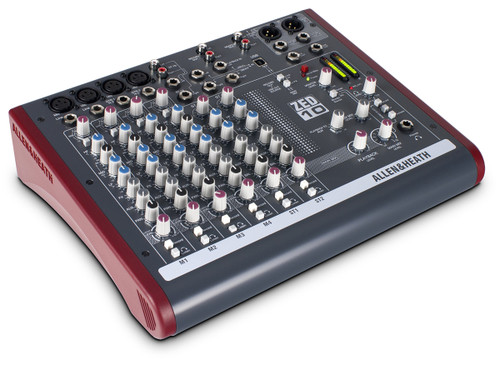

The ZED-10 is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings.
Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards.

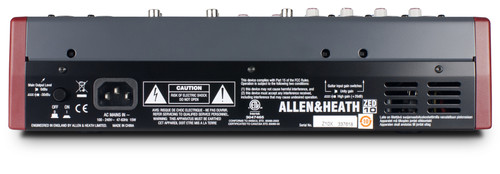

Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs.
| Use for: | Live performance, recording and production |
|---|---|
| High impedance | Two innovative ultra |
| Inputs | Discrete Class A FET (Field Effect Transistor) inputs |
| Input circuitry | Valve/tube |
| Boost switch | 26dB gain |
| Compatibility | Up to four microphones and two stereo sources with MP3 player |
| Record outputs | 2-track |
| Microphone phantom power | 48V |
| Level switching | DI for sub mixing |
| Send and return | USB for PC or Mac recording, playback and effects |
| Mono inputs | 3-band swept-mid EQ |
| Stereo channels | 2-band EQ |
| Pre-amps | High gain low noise |
| Aux sends | 2 |
| Conversion rate | 24 bit/48kHz |
