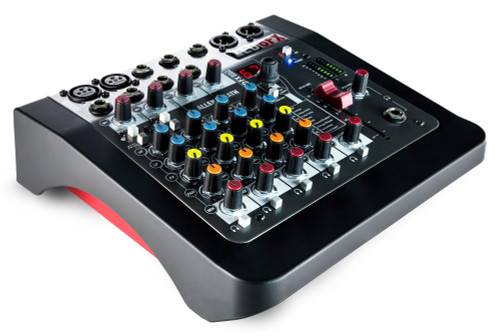

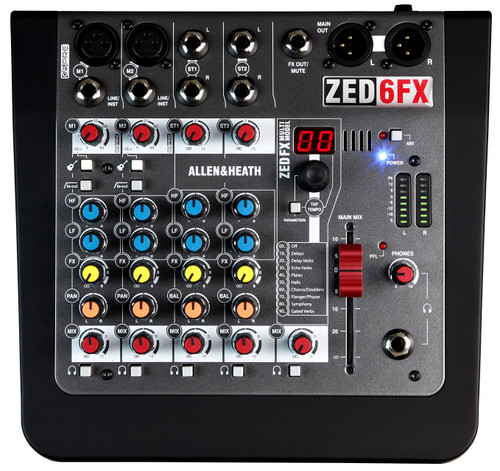

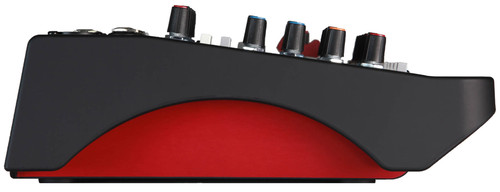

The Allen & Heath ZED-6FX Compact Analog Mixer with FX delivers renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analog warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio-quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.
| Operating Levels Input | |
|---|---|
| Mono channel (XLR) Input | -5dBu to –60dBu (+13dBu in max) |
| Mono channel Instrument/Line Input (Jack socket) | +14dBu to -40dBu (+17dBu maximum) |
| Stereo Input (Jack sockets) | 0dBu nominal (control = Off to +15dB Gain) |
| Operating Levels Output | |
| FX Output (Jack socket) | 0dBu (+18dBu maximum) |
| L/R Outputs (XLR) | 0dBu (+18dBu maximum. |
| Frequency Response | |
| Mic in to Mix L/R Out, 30dB gain | 10Hz to 20kHz +0.5/-1dB |
| Instrument/Line in to Mix L/R out 0dB gain | 10Hz to 20kHz +0.5/-1dB |
| Stereo in to Mix L/R out | 10Hz to 20kHz +0.5/-1dB |
| THD+n | |
| Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22 Hz-22kHz Filter) | 0.0025% |
| Mic in to Mix L/R Out, 30dB gain 1kHz (22 Hz-22kHz Filter) | 0.006% |
| Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22 Hz-22kHz Filter) | 0.03% 2nd Harmonic |
| Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22 Hz-22kHz Filter) | 0.0025% |
| Headroom | |
| Analogue Headroom from nominal (0Vu) | 18dB |
| Noise | |
| Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) | -127dBu |
| Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) | -94dBu |
| Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz -22kHz Filter) | -91dBu |
| Mixer Specification | |
| Inputs - Mic Preamps | 2 x XLR |
| Inputs - Line | 2 x TRS (CH 1-2) 4 x TRS (CH 3-4 ST) |
| Outputs - Main | 2 x XLR (Main) |
| Headphones | 1 x 1/4" |
| Send/Return I/O | 1 x 1/4" (FX) |
| Phantom Power | 2 |
| EQ Bands | 2-band, (CH 1-2) 2-band (CH 3-4 ST) |
| Aux / FX Sends | 1 x Post (Per Channel) |
| Busses/Groups | Stereo Bus |
| Dimensions (H x W x D) | 3.5" (88.9 mm) x 9.8" (249 mm) x 9.3" (236.4 mm) |
| Weight (Unpacked) | 3 lbs (1.36 kg) |
| Weight (Packed) | 4.4 lbs (2 kg) |
