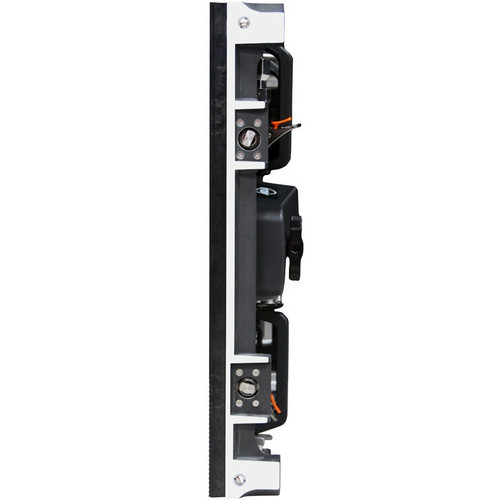

American DJ AV4IP 4.8 mm Outdoor IP-Rated LED Video Panel (Discontinued)
American DJ AV4IP 4.8 mm Outdoor IP-Rated LED Video Panel (Discontinued)
American DJ AV4IP 4.8 mm Outdoor IP-Rated LED Video Panel (Discontinued)
American DJ AV4IP 4.8 mm Outdoor IP-Rated LED Video Panel (Discontinued)
By American DJ

American DJ AV4IP 4.8 mm Outdoor IP-Rated LED Video Panel (Discontinued)

Write a Review
Part #:
AV4127
Model #:
AV4IP
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The American DJ AV4IP is a high resolution, outdoor rated video panel for indoor or temporary outdoor use for stages, installation or events.

Description

The ADJ AV4IP is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LED's. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4000 NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV4IP includes True 1 powerCon In/Out and etherCON In/Out waterproof connections. This panel also features a Novastar receiving card.

The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars, and flight cases so that you have everything you need to get up and running.

Features
  • 4.81mm pixel pitch high-resolution video panel
  • IP65 Front, IP54 Back (Temporary outdoor use)
  • SMD1921 3-IN-1 RGB LEDs
  • NITS: 4,000
  • Pixel Count: 104x104
  • Quick release power supply / receiving card module
  • True1 powerCON In & Out
  • EtherCON In & Out
  • Novastar receiving card
  • Flight Case: AV3FC (AV3095): Flight Case - fits 8 AV4IP Panels
  • Rigging Bar: AV3RB1

Specifications
Dimensions (H x W x D) 19.75" (500 mm) x 19.75" (500 mm) x 4" (100 mm)
Weight 20 lbs (9 kg)
