American DJ SC-8 II System 8-Channel Relay Pack (Discontinued)

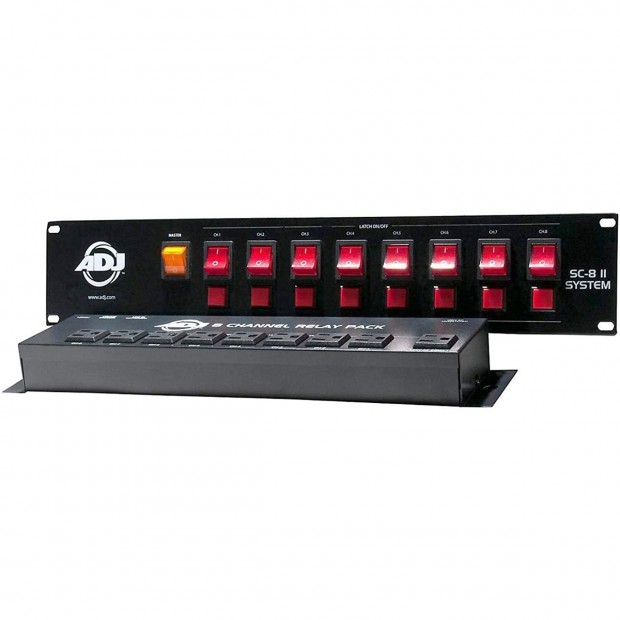

ADJ SC-8 II System 8-Channel Relay Pack

The American DJ SC-8 Analog Lighting Controller System is an 8-channel light control system for non-DMX lighting. The SC-8 controller connects to the SRP8 power pack via the 9-pin com cable. It has 8 channels with on and off with a Flash On button for output, and 1 uninterrupted power plug. The controller also features a Pattern and Stand-by connector for an optional foot control chaser.

• 19" rack mount switch center with built-in power supply
• Individual channel switches and flash on buttons
• Master on/off
• 8 channels with on/off control
• Flash on button for each channel
• Eight 3-prong switching plugs
• On/off toggle switch
• Includes 25' cable to connect control to relay pack
• Lighted switches
• System includes: 1 - SC-8 II, 1 - SC-8 Relay Pack, 1 - SC-EX25
• May link up to 2 RP-8 relay packs on 1 SC-8FC
• Includes remote operation for cc-2016 (cc-2016 chase controller sold separately)
• 12v signal output from switch center
• Maximum load: 15 amps or 1800 watts per relay pack (using separate circuit for each)
• Size: SC-8 II - 19" x 2" x 2"

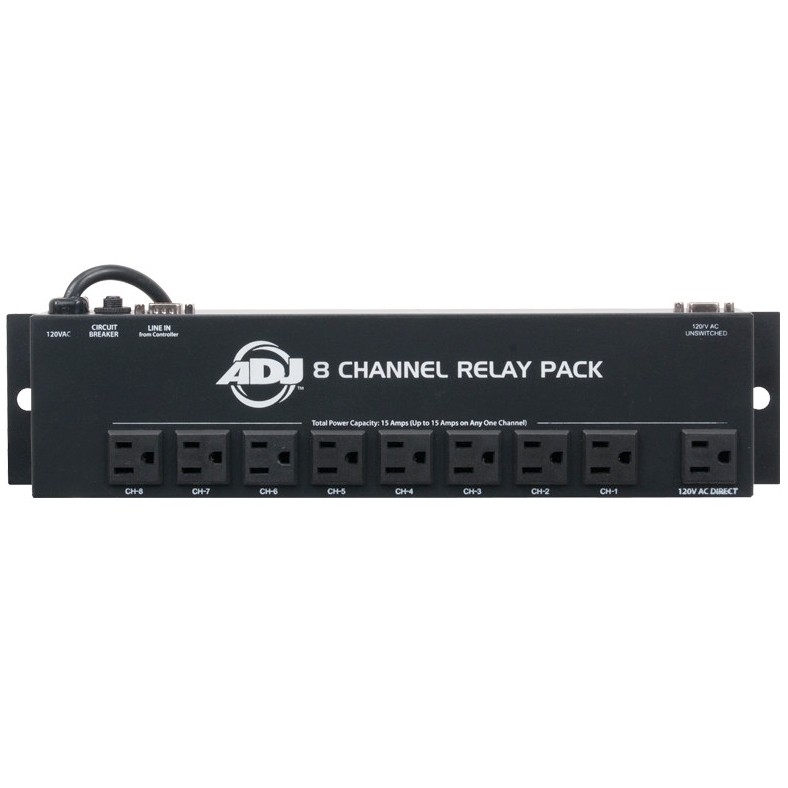

• SC-8 Relay Pack - 19" x 5" x 2"
• System weight: 13 lbs

User Instructions

• (1) SC-8 II
• (1) SC-8 Relay Pack
• (1) SC-EX25
