The American DJ UB 9H is a professional grade indoor 1-meter linear fixture powered by nine 6-Watt HEX LEDs. Includes UC IR wireless remote and magnetic interlocking end caps to attach fixtures together.

Description

ADJ UB 9H 9x 6W RGBWA+UV LED Linear Fixture

The ADJ UB 9H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by nine 6-Watt HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

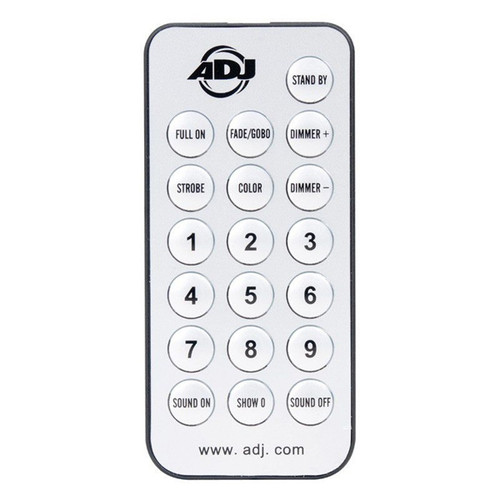

UB 9H features built-in Color Macros (built-in colors), 6 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote that is included inside the box.

Features
  • 41.75-inch (1 meter) indoor Linear Bar with 9 x 6W Ultra bright HEX LEDs
  • Variable RGBWA+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  • 6 DMX Channel Modes: 2, 3, 4, 6, 7 or 11 channels
  • 5 operational modes: Auto (Program Run), Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
  • 3-Section Pixel control
  • Patent Pending Quick Align (Magnetic)
  • Beam Angle: 40 degrees
  • Flicker Free
  • 4-Button DMX LED Display
  • 35 built-in Color Macros
  • LED pulse & strobe effect
  • Electronic Dimming: 0-100%
  • Includes mounting brackets to mount on a wall or set on the ground
  • Compatible with the remote with UC IR (Included) and the Airstream IR APP
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Power Draw: 65W @ 120V
  • Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 10 UB 9H fixtures max., @ 120V can be power linked)
  • With Wired Digital Communication Network
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Dimensions (LxWxH): 41.75" x 2.5" x 3.5"/ 1060 x 63 x 90 mm
  • Weight: 6 lbs / 2.6 kg
  • ETL Approved

Specifications
Dimensions (H x W x D) 3.5" (90 mm) x 41.75" (1060 mm) x 2.5" (63 mm)
Weight 6 lbs (2.6 kg)
