Anchor Audio AN-1000X System ECO 1 Portable Powered Speaker Monitor System with Built-In Dual Wireless Receiver and 1 Wired Handheld Microphone

Part #:
491090
Model #:
AN-1000X System ECO 1
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Anchor Audio AN-1000X System ECO 1 portable powered speaker monitor system delivers reliable portable sound reinforcement with a built-in dual wireless receiver and one MIC-90P wired handheld microphone for clear voice projection in presentations, events, education, and live applications.

Description

Anchor Audio AN-1000X System ECO 1 Portable Powered Speaker Monitor System with MIC-90P Wired Handheld Microphone

The Anchor Audio AN-1000X System ECO 1 is a portable powered speaker monitor system designed to deliver clear, reliable sound reinforcement for presentations, classrooms, assemblies, corporate meetings, houses of worship, and live events. Built on the AN-1000XU2+ powered platform, this system provides high-output audio performance in a compact and easy-to-transport design, making it ideal for both indoor and outdoor applications where dependable voice amplification is essential.

Highlights:

  • Portable powered speaker monitor system for voice and music amplification
  • Built-in dual wireless microphone receiver for optional wireless expansion
  • Includes MIC-90P wired handheld microphone for reliable plug-and-play operation
  • Simple and dependable wired audio solution with consistent performance
  • Reach crowds of 250+
  • Stand and bracket mountable
  • Clear voice projection for presentations and public speaking
  • User-friendly controls for simple setup and operation
  • Built-in bracket mount screws for easy installation (bracket with Allen wrench sold separately)

The AN-1000X System ECO 1 includes the MIC-90P wired handheld microphone, providing a straightforward and reliable audio solution that requires no wireless setup or batteries. This ensures consistent, interference-free performance for speech and announcement applications. The system’s built-in dual wireless receiver also allows optional expansion if wireless microphones are added in the future.

Engineered for portability and durability, the AN-1000X System ECO 1 features a rugged, travel-ready design that enables quick setup and dependable operation in demanding environments. Trusted by educators, presenters, event coordinators, and production professionals, this portable powered speaker monitor system delivers professional-grade sound quality and flexible functionality wherever clear communication is essential.

Features

  • 107 dB of clear sound
  • 50W AC
  • 1.9 GHz wireless mic frequency
  • 150'+ wireless microphone range
  • 1/4" line input
  • Balanced XLR input
  • 1/4" line output to daisy chain multiple units
  • Mic/line level dip switch
  • One 4.5" woofer
  • One 10 mm dome tweeter

Specifications

AN-1000XU2+
Max SPL @ Rated Power 107 dB @ 1 meter
Frequency Response 65 Hz - 20 kHz ± 3 dB
AC Power Reqs. 110 - 125 VAC, 47/63 Hz, 50W max
Export: 208 - 240 VAC, 50/60 Hz 50W max
Fuse Rating T 1.0A / 250V (internally mounted)
Export: T 0.5A / 250V (internally mounted)
Power Inlet PC-2
Line Inputs Hi-Z, unbalanced 1/4” phone & RCA
Line Output Lo-Z, RCA, buffer isolated line level
Dimensions (H x W x D) 9" (228.6 mm) x 8.5" (215.9 mm) x 5.5" (139.7 mm)
Weight 6.5 lbs (2.9 kg)

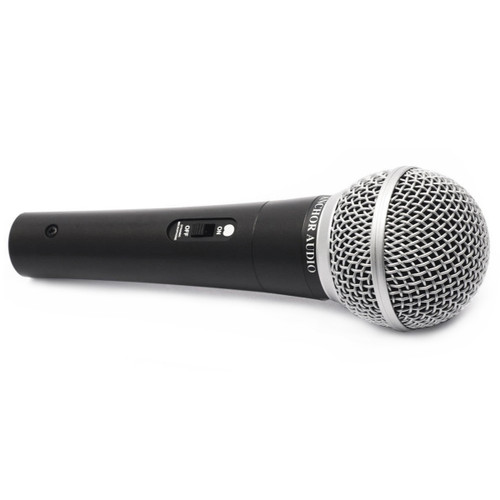

MIC-90P
Output Impedance 500 ohm (+/- 20%)
Connector 1/4-Inch
Frequency Response 50 Hz to 1500 Hz
Weight 0.58 lbs (0.26 kg)

DOCUMENTS

System Includes

  • (1) AN-1000XU2+ 50W Powered Speaker Monitor with Built-in Dual Wireless Microphone Receiver

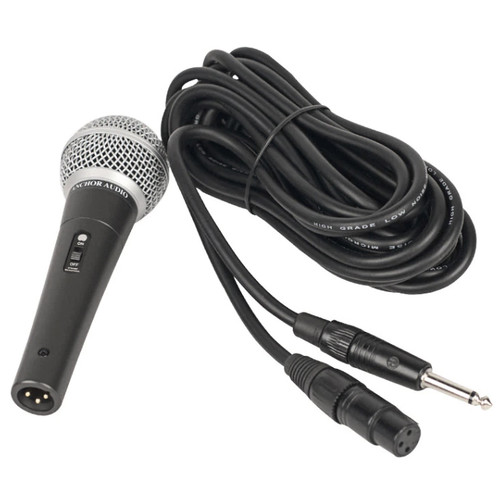

  • (1) MIC-90P Wired Handheld Microphone with XLR to 1/4" Cable - 20ft
