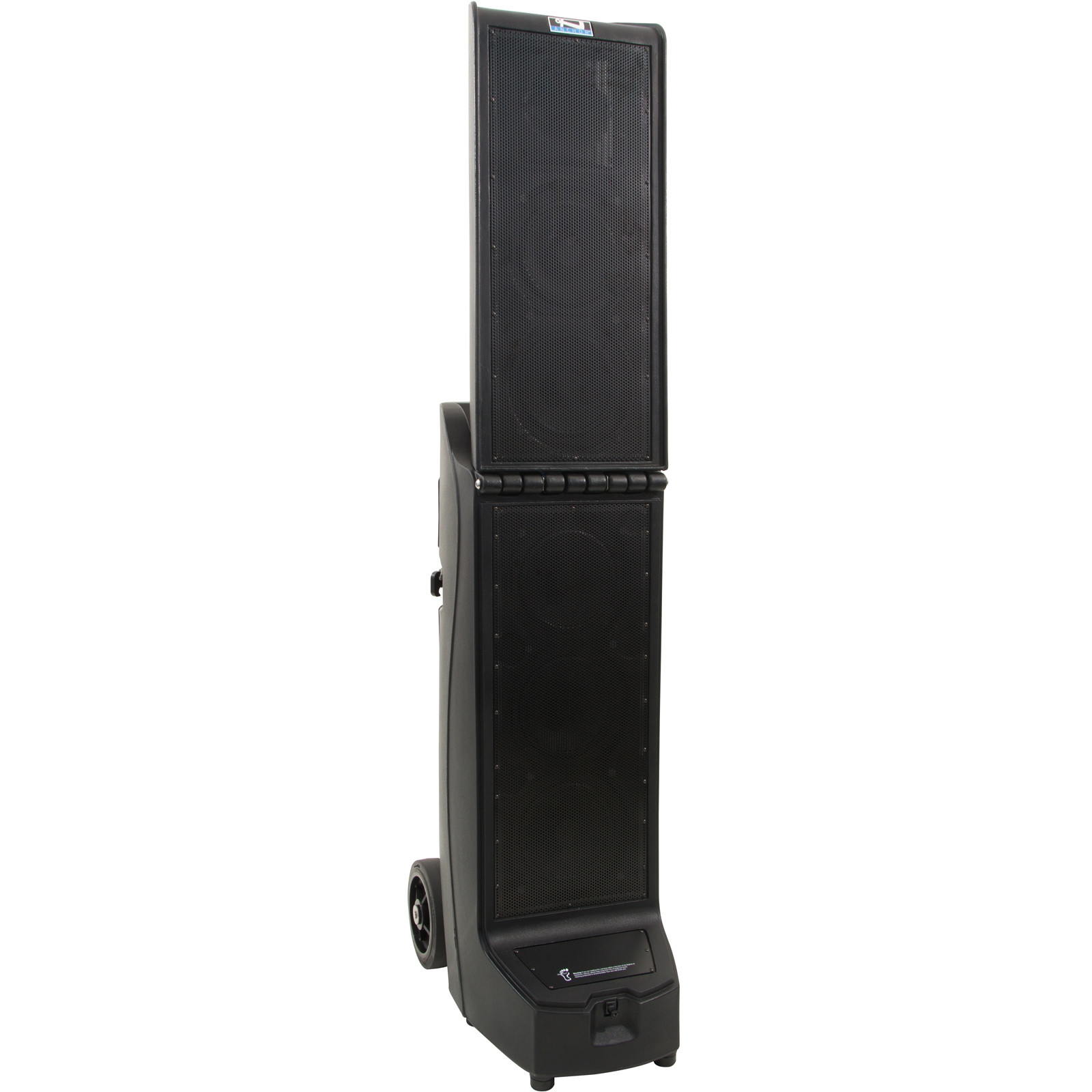

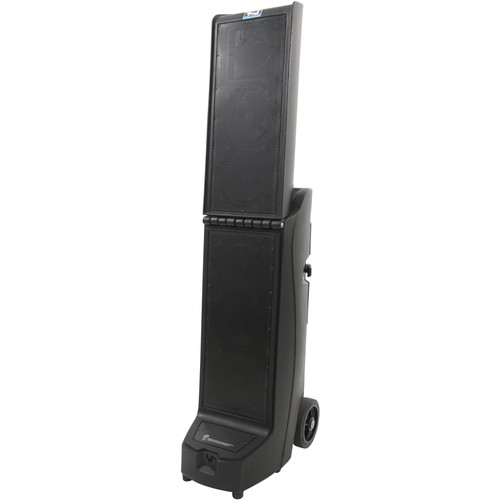

Anchor Audio BIG3-U2 Bigfoot 3 Line Array Portable PA System with Bluetooth and Dual Wireless Mic Receiver (Discontinued)

Anchor Audio BIG3-U2 Bigfoot 3 Line Array PA System with Dual AnchorLink Wireless Mic Receivers

The BIG3-U2 Bigfoot 3 is a powerful, all-in-one portable PA system designed for large-scale voice and music reinforcement. It delivers 300W of high-output Class-D amplification through a vertical line array of five 8" neodymium woofers and a high-efficiency compression driver, producing peak output levels up to 126 dB. With a coverage area of approximately 150 x 150 ft, it's ideal for crowds of up to 2,500 people, depending on the environment.

This model includes a built-in dual AnchorLink wireless mic receiver, allowing you to pair up to two AnchorLink handheld or bodypack microphones (sold separately). It also features Bluetooth streaming, making it ideal for both spoken word and background music applications.

Powered by three internal 12V LiFePO₄ rechargeable batteries, the BIG3-U2 provides over 7 hours of operation on a full charge, and recharges in about 5 hours using standard AC power (100–240V).

Connectivity includes:

• Integrated dual AnchorLink wireless mic receiver (2.4 GHz digital)
• Class 1 Bluetooth with up to 150 ft range for wireless audio streaming
• Two balanced XLR/¼" combo mic inputs with 48V phantom power (wired microphones only)
• One ¼" line input (Hi-Z compatible)
• One 3.5 mm stereo aux input
• One ¼" line output (pre-fader, isolated, 600Ω) for daisy-chaining to additional systems
• USB charging port (5V/500mA) for mobile devices

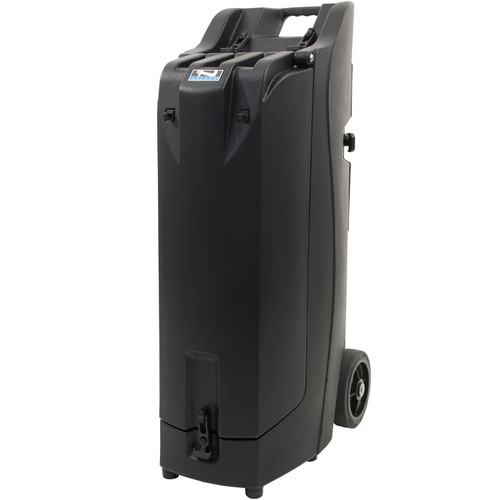

The folding tower array extends to 72" when open and collapses to 42.5" for transport. The unit features a rugged, weather-resistant enclosure with built-in wheels and handles for easy portability.

Ideal for large events, assemblies, sports, or outdoor gatherings where wireless mic capability and portable power are essential.

Made in the USA and backed by Anchor Audio's 6-4-2 warranty: 6 years on speakers, 4 years on batteries, and 2 years on mics and accessories.

Note: Wireless microphones are not included and must be purchased separately. Compatible only with AnchorLink wireless mics.

• 300W RMS Class-D amplifier with peak sound output up to 126 dB
• Five 8" neodymium woofers and one high-efficiency compression driver in a vertical line array
• One built-in dual AnchorLink wireless mic receiver (supports up to 2 wireless mics – sold separately)
• Class 1 Bluetooth with up to 150 ft wireless streaming range
• Two XLR/¼" combo mic inputs with 48V phantom power (wired mics only)
• One ¼" line input (Hi-Z compatible)
• One 3.5 mm stereo line input
• One ¼" line output (post-fader) for daisy-chaining
• USB charging port for mobile devices (5V/500mA)
• Three 12V rechargeable LiFePO₄ batteries provide over 7 hours of runtime
• Rapid AC charging (100–240V, 50/60Hz); full recharge in approximately 5 hours
• Foldable line array tower design: 72" (1829 mm) open, 42.5" (1080 mm) closed
• Durable, weather-resistant enclosure with built-in heavy-duty wheels
• Coverage area: approximately 150 x 150 ft; ideal for up to 2,500 people
• Made in the USA
• Backed by Anchor Audio's 6-year speaker, 4-year battery warranty
