Anchor Audio COM-40FC 4-Person PortaCom Wired Intercom System
This PortaCom wired intercom package (COM-40FC) is for 4 users and does not include cables. It comes with the world's easiest, most durable wired intercom which is flexible and high performance. It includes the power console, four belt packs, and four lightweight single-muff headsets. It provides two channels without sacrificing power or quality, and it is expandable, portable, and rack mountable. The package comes in a sturdy cardboard carrying case. It is AC operable, and up to 20 headsets can be used at once with the system. It is ideal for theater, local cable studios, churches, or high school football coaches.
Optional: Add four EX-50M cables to create the COM-40FC/C package.- Features
Features
- AC operable
- Easy to set up and operate
- Two-channel wired full-duplex intercom
- Supports up to 20 headsets
- Includes comfortable single-muff headsets
- Compatible with standard double-shielded microphone cable
- Can use standard 3-pin XLR microphone cables
- Portable or rackmountable
- Durable lightweight metal belt packs
- High performance, cost-effective design
- Specification
COM-40FC System Operating Distance Up to 2,500 ft (total cable length) Normal Line Level -15 dBV Signal-to-Noise Ratio -65 dB Distortion < 0.5% Connecting Cables Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft) Compatibility Generally compatible with industry standard system (call for info) BP-2000 Belt Pack Input Line Connector 3-pin XLR – female Headset Connector 4-pin XLR – male Bridging Impedance 10 k Ohm min DC Current Requirements 20mA max Dimensions (H x W x D) 3.8" (96.5 mm) x 2.75" (69.85 mm) x 1.25" (31.75 mm) Weight 0.40 oz (0.0113 kg) PC-2000 2-Channel Power Console Output Connectors 3-pin XLR – 4 male Voltage Output 22 VDC to belt packs Max. Current Capacity 400mA Max. Belt Packs 20 BP-2000 belt packs Input Power Requirements 24VAC, 50/60Hz, 750mA; 30 – 40VDC, 500mA AC Power Adapter Anchor model AC-20 Input Voltage 120VAC, 60Hz Output Voltage/Current 24VAC @ 750mA Dimensions (H x W x D) 1.75" (45 mm) x 8.5" (216 mm) x 4.5" (114 mm) Weight 57.6 oz (1.63 kg) - Documents
- System Includes
System Includes
- (4) H-2000S Single Earpiece Headsets

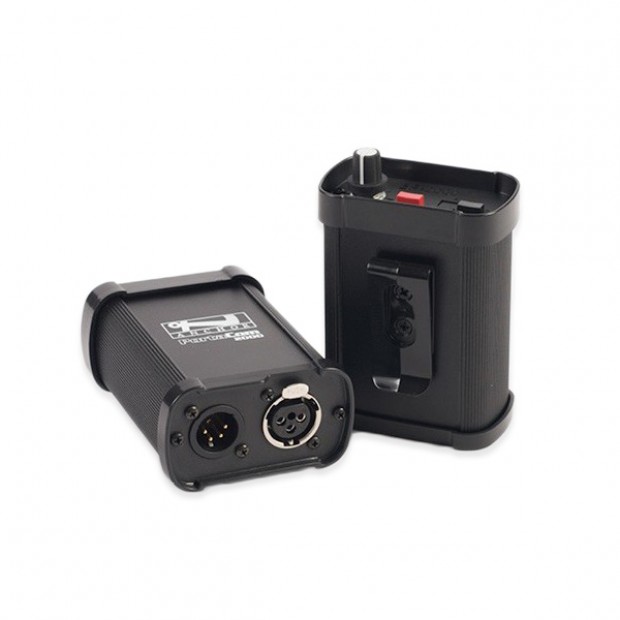

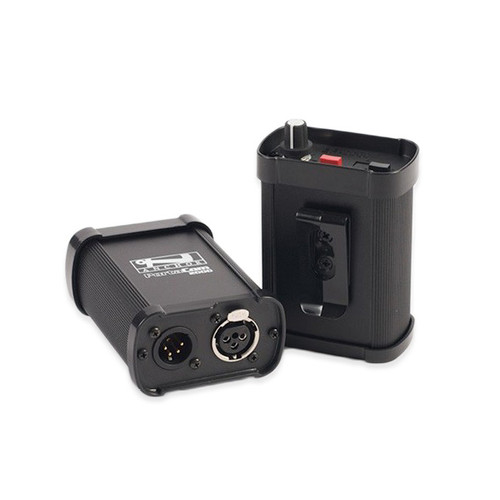

- (4) BP-2000 Belt Packs
- (1) PC-2000 Power Console
- (1) Sturdy Cardboard Carrying Case
Optional: Add (4) EX-50M 50 ft. cables to equip all four headsets for wired use.
