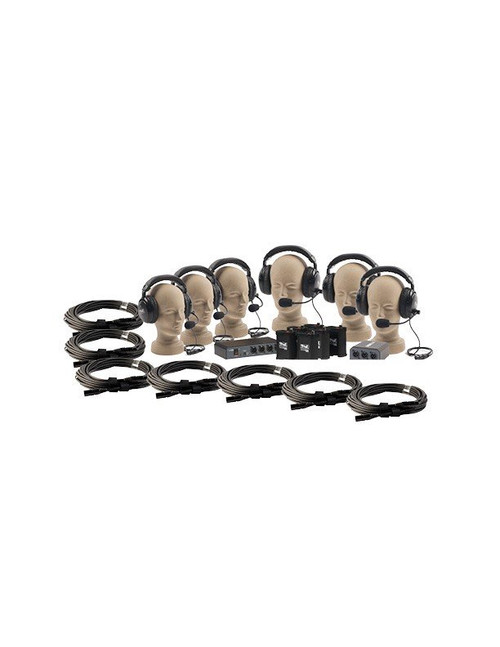

Anchor Audio COM-60FC 6-Person PortaCom Wired Intercom System

This PortaCom wired intercom package (COM-60FC) is for 6 users and does not include cables. It comes with the world's easiest, most durable wired intercom which is flexible and high performance. It includes the power console, six belt packs, and six lightweight single-muff headsets. It provides two channels without sacrificing power or quality, and it is expandable, portable, and rack mountable. The package comes in a sturdy cardboard carrying case. It is AC operable, and up to 20 headsets can be used at once with the system. It is ideal for theater, local cable studios, churches, or high school football coaches.

Optional: Add seven EX-50M cables to create the COM-60FC/C package.

Features

Features

AC operable
Easy to set up and operate
Two-channel wired full-duplex intercom
Supports up to 20 headsets
Includes comfortable single-muff headsets
Compatible with standard double-shielded microphone cable
Can use standard 3-pin XLR microphone cables
Portable or rackmountable
Durable lightweight metal belt packs
High performance, cost-effective design

Specification

COM-60FC System
Operating Distance	Up to 2,500 ft (total cable length)
Normal Line Level	-15 dBV
Signal-to-Noise Ratio	-65 dB
Distortion	< 0.5%
Connecting Cables	Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft)
Compatibility	Generally compatible with industry standard system (call for info)

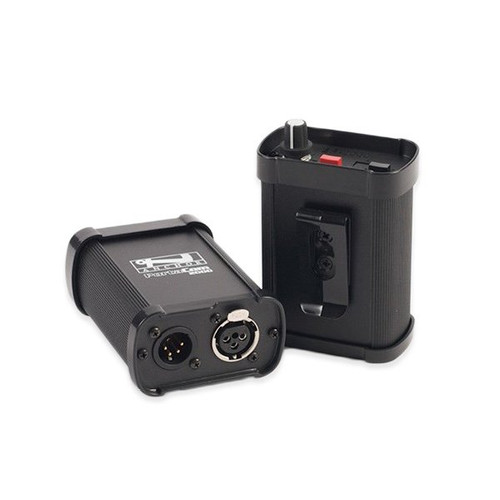

BP-2000 Belt Pack
Input Line Connector	3-pin XLR – female
Headset Connector	4-pin XLR – male
Bridging Impedance	10 k Ohm min
DC Current Reqs.	20mA max
Dimensions (H x W x D)	3.8" (96.5 mm) x 2.75" (69.85 mm) x 1.25" (31.75 mm)
Weight	0.40 oz (0.0113 kg)
PC-2000 2-Channel Power Console
Output Connectors	3-pin XLR – 4 male
Voltage Output	22 VDC to belt packs
Max. Current Capacity	400mA
Max. Belt Packs	20 BP-2000 belt packs
Input Power Reqs.	24VAC, 50/60Hz, 750mA; 30 – 40VDC, 500mA
AC Power Adapter	Anchor model AC-20
Input Voltage	120VAC, 60Hz
Output Voltage/Current	24VAC @ 750mA
Dimensions (H x W x D)	1.75" (45 mm) x 8.5" (216 mm) x 4.5" (114 mm)
Weight	57.6 oz (1.63 kg)
B3-2000 - Branch Box
Connectors (3-pin XLR)	Input – 1 female / Output – 3 male
Dimensions (H x W x D)	1.9" (48 mm) x 4.1" (105 mm) x 4.25" (108 mm)
Weight	19.2 oz (0.5 kg)
