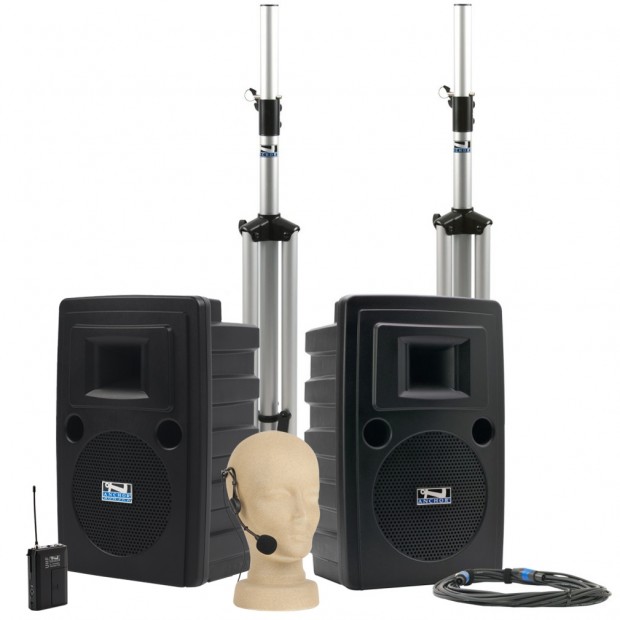

The Liberty Platinum Deluxe Package from Anchor Audio includes a LIB-8000CU1 speaker with built-in CD/MP3 combo, wireless receiver and Bluetooth capabilities, a LIB-8001 unpowered companion speaker and cable, a wireless headband microphone, 2 SS-550 heavy duty speaker stand and aux cable. This portable sound system is designed with intelligibility, reliability, and simplicity in mind. This PA full-featured system covers a crowd of 3000 or more, providing clear voice amplification for any application. Use the Liberty indoors or outdoors for school functions, lecture halls, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

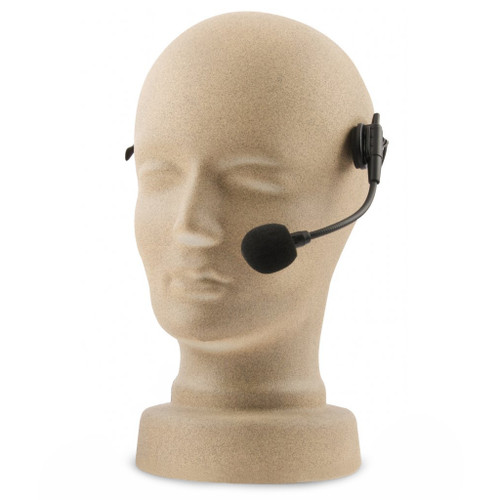

The HBM-TA4F is one of Anchor Audio's most popular microphone element because it follows your head when turned and flawlessly tracks your voice. Wear it around the back of your head and over your ears, so the microphone is resting right in front of your mouth. The headband microphone has a TA4F connector plug.

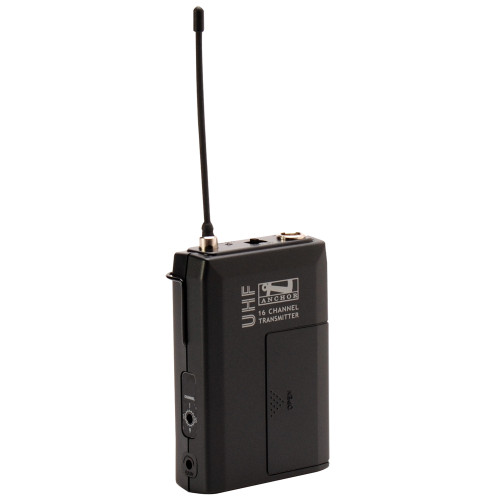

The WB-8000 is a wireless beltpack transmitter with a TA4F connector plug. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WB-8000 is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the Anchor Audio 8000 and F1+ series.
- Features
Features
- Reaches crowds up to 3,000+
- 117 dB of clear sound
- 125W AC mode / 100W DC mode
- One built-in wireless receiver
- Standard built-in Bluetooth with a line of sight range of 100'
- Built-in CD/MP3 combo player with remote control
- Two universal mic input jacks
- 3.5 mm AUX line input
- Built-in rechargeable batteries operate 6 - 8 hours on a single charge
- One 10" woofer and one ceramic compression driver
- External speaker output powers optional Liberty Platinum unpowered companion speaker
- Specification
Rated Power Output 125 watts AC / 100 watts DC Max SPL @ Rated Power 117 dB Battery (2) 12V, lead acid rechargeable, 9.0 AH Full Recharge Approx 7 hrs Frequency Response 60 Hz – 15 kHz ± 3dB Line Output (Post Fader) Isolated, 600 Ohm, 1/4" phone AC Power Requirements 100 – 240 VAC~47-63 Hz, (250W max) USB 5V 500mA Microphone Inputs (2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power
(2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalancedLine Inputs (1) Stereo RCA, unbalanced
(1) 3.5 mm stereo aux, unbalanced
(1) 1/4", unbalancedOutputs Line / Post Fader: Lo-Z, 1/4" phone
Speaker Output: 4-pole Neutrik Speakon connectorSensitivity For Rated Output Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
Phantom Power 36VSpeaker Out 4-pole Neutrik Speakon jack Speaker Dimensions (H x W x D) 22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm) LIB-8000CU1 Speaker Weight 38 lbs (17 kg) LIB-8001 Speaker Weight 20.5 lbs (9.30 kg) - Documents
- System Includes
System Includes
- (1) Speaker with Built-in CD/MP3 Combo Player, Wireless Receiver and Built-in Bluetooth (LIB-8000CU1)

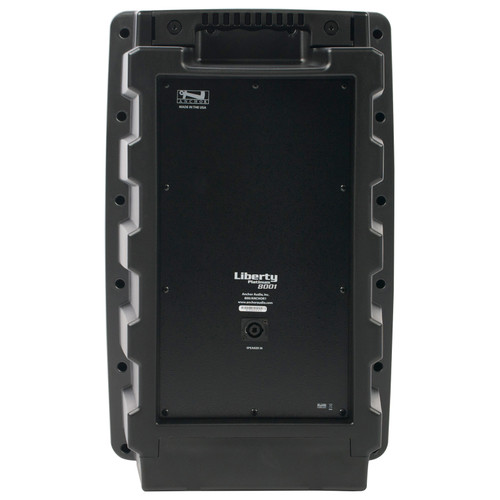

- (1) Unpowered Companion Speaker (LIB-8001)
- (1) Wireless Headband Microphone (HBM-TA4F)
- (1) Wireless Belt Pack Transmitter (WB-8000)

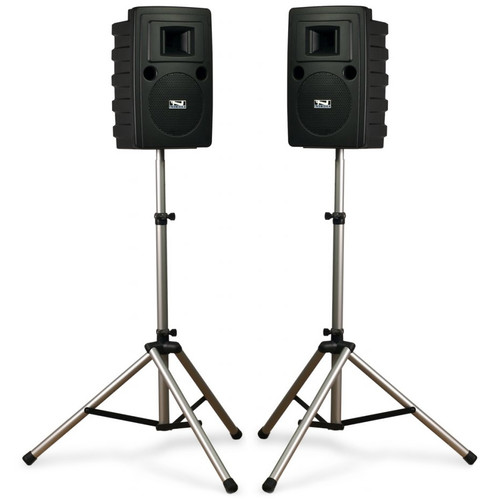

- (2) Heavy Duty Speaker Stands (SS-550)
- (1) Companion Speaker Cable - 50 ft (SC-50NL)
- (1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
