Biamp Desono CM30DTD 4.25" 2-Way 70V Ceiling Speakers - Pair

Description

Details

Biamp Desono CM30DTD 4.25" 2-Way Ceiling Speakers

The Desono CM30DTD two-way 4.25-inch ceiling loudspeaker delivers crystal clear audio for all your public address and background music needs. Its 4.25-inch polypropylene woofer and 1-inch tweeter results in a high SPL and extremely low distortion, ensuring exceptional clarity over the entire frequency spectrum.

The CM30DTD utilizes a 5-position switchable transformer ranging from 1.75W to 30W with low-impedance bypass for constant-voltage operation, making it an excellent choice for large areas of BGM.

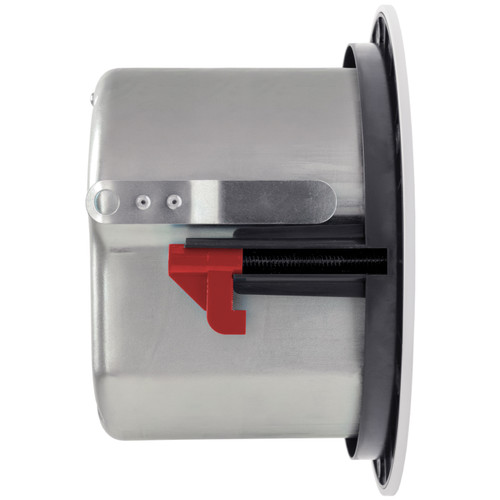

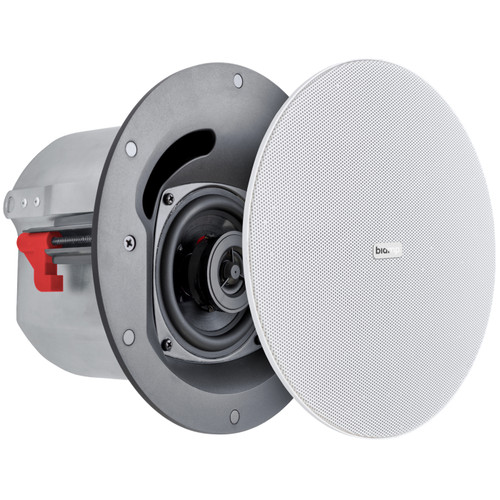

Designed with the installer in mind, they can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal that can also be painted to match the room decor. Additionally, the tap switch is located on the face of the loudspeaker, so adjustments can be made without requiring ceiling access.

Certified for use with Zoom software.

Features

Features

Zoom Rooms Certified
Requires only 5.2-inch (131 mm) mounting depth
High speech intelligibility coupled with full-range music reproduction

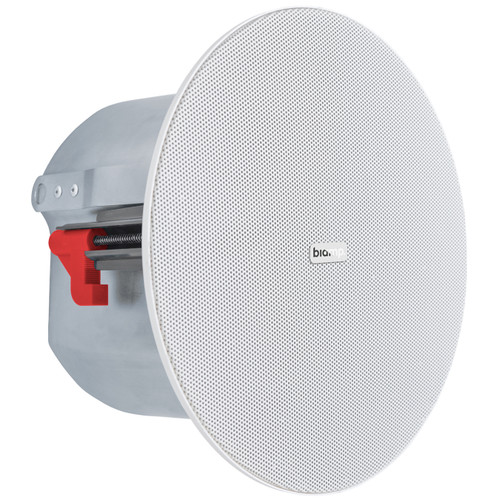

Thin-edge, magnetically attached grille
Tap switch allows for 70V/100V or 16Ω low impedance operation
Tuned bass reflex port for optimized low-frequency performance
Loudspeaker overload protection for 24/7 failsafe operation
Suitable for use in air handling spaces per NFPA 70, NFPA 90
Conforms with City of Chicago codes
ETL listed to conform with UL Std 1480A and UL 2043; Certified to CSA C22.2#62368-1
5-year warranty

Specification

Loudspeaker System	Protection: 3-step self-resetting protectionTransducers: LF: 1 x 4.25" (108 mm) treated paper cone, HF: 1 x 1" (25 mm) soft dome
Power	Continuous Power Handling @ Nominal Impedance: 28V 50W @ 16Ω (200W peak)
Operating Range	90 Hz to 22 kHz
Beamwidth	Nominal Beamwidth (H x V): 120° conical
70V Transformer Power Taps	30W, 15W, 7.5W, 3.75W, 1.75W
100V Transformer Power Taps	30W, 15W, 7.5W, 3.75W
Sensitivity	Nominal Sensitivity @ 1m: @ 1W 87 dB @ 2.83V 83 dB

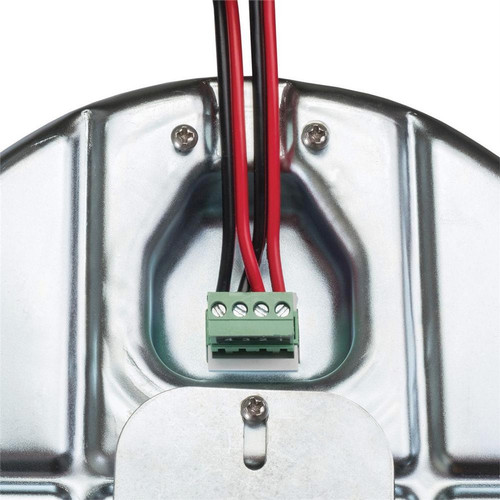

Input Type	Input Connection: (1) 4-way Euroblock connector with permanent pass-through
SPL	Nominal Maximum SPL @ 1m: Peak 110 dB Continuous 104 dB
Zoom	Zoom Certified
Certifications	ETL listed to comply with UL 1480A and UL 2043; Certified to CSA C22.2#62368-1; Suitable for use in air handling spaces per NFPA 70, NFPA 90 Conforms with City of Chicago Codes
Mounting	Mounting Provisions: 2 mounting clamps with grip range of 0.2-inches - 2.6-inches (3 - 65 mm); Cover plate with 0.75-inches (22 mm) NPT knockout for conduit connectors
Included Accessories	Included Accessories: Tile rails; tile rail spacers; cutout template Optional Accessories: SQGR square grille
Cutout Diameter	7.598" (193 mm)
Dimensions (Dia x D)	8.78" (223 mm) x 5.16" (131 mm)
Net Weight	5.5" (2.5 kg)
