Apart Audio CM60DTD 6.5" 2-Way Thin Edge Ceiling Speakers (Pair)

More Views

Apart Audio CM60DTD 6.5" 2-Way Thin Edge Ceiling Speakers (Pair)

Part # CM60DTD

Model # CM60DTD

The Apart Audio CM60DTD 6.5 inch two-way versatile built-in loudspeaker is suitable for the distribution of speech and music at a higher volume level. It provides a powerful high-end, dynamic, warm sound due to the tuned bass reflex port and controlled performance.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

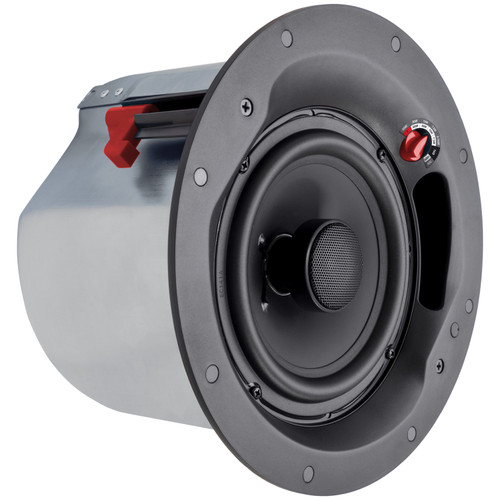

Apart Audio CM60DTD 6.5" 2-Way In-Ceiling Speakers

The CM60DTD 6.5" two-way versatile built-in loudspeaker is suitable for the distribution of speech and music at a higher volume level. It provides a powerful high-end, dynamic, warm sound due to the tuned bass reflex port and controlled performance. The loudspeaker can be installed by two loudspeaker clamps only, which speeds-up installation and reduces labor time. The 70/100-volt power tapping can be selected on the front and also offers 16 ohms connectivity. The CM60DTD comes with thin edge grill and integrated neodymium grill fixing magnets which allows an inconspicuous integration matching the surroundings of your venue.

Features

Features

Design ceiling loudspeaker with back can for controlled sound performance in any kind of ceiling structure
Matching Apart sound image allows you to combine various models in the same room or area
Tuned bass reflex port for optimized low frequency performance
High intelligibility while remaining perfect music reproduction quality
6.5" LF driver with 1" tweeter
120W dynamic power handling
Thin-edge loudspeaker grille for elegant integration
User-friendly grille mounting due to integrated strong neodymium magnets
Easily paintable in any RAL color
Installer-friendly grille safety wire speeds up installation and avoids the grille from falling down during and after installation
Included tile bridge support rails prevent ceiling tile sagging

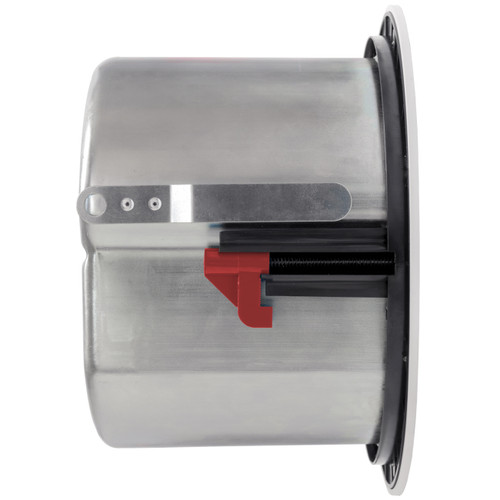

Quick installation with two fast screwing loudspeaker clamps
Minimal built-in depth with uncompromised acoustical performance
Loudspeaker overload protection for a 24/7 failsafe operation
Front panel selection of 16 ohm or 100V/70V operation, this allows easy and fast adjustment of the loudspeaker power without the need to remove it from the ceiling or move connection wires
Enhanced cable management with incorporated strain relief and cable guidance along with provision for a cable gland

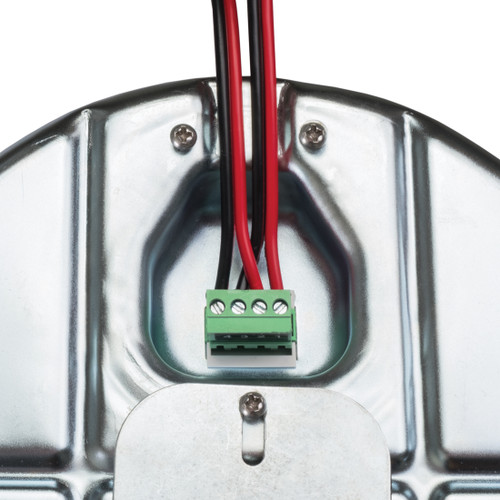

In & Link connection with permanent pass through on the euroblock connector allows easy daisy chaining of multiple loudspeakers
Two integrated

Specification

LF Driver	6.5"
Tweeter	1"
Low Impedance Dynamic Power	120W
Low Impedance RMS Power	60W
70V Transformer Power Taps	60 - 30 - 15 - 7.5 - 3.75
100V Transformer Power Taps	60 - 30 - 15 - 7.5
SPL 1W/1m	91 dB
Max SPL 1m	110 dB
Frequency Response	65 - 20K
Dispersion	180° x 180°
Grille	Steel
Cutout Diameter	9.13" (232 mm)
Dimensions (Dia x D)	10.16" (258 mm) x 6.18" (157 mm)
Net Weight	8.84" (4.01 kg)
