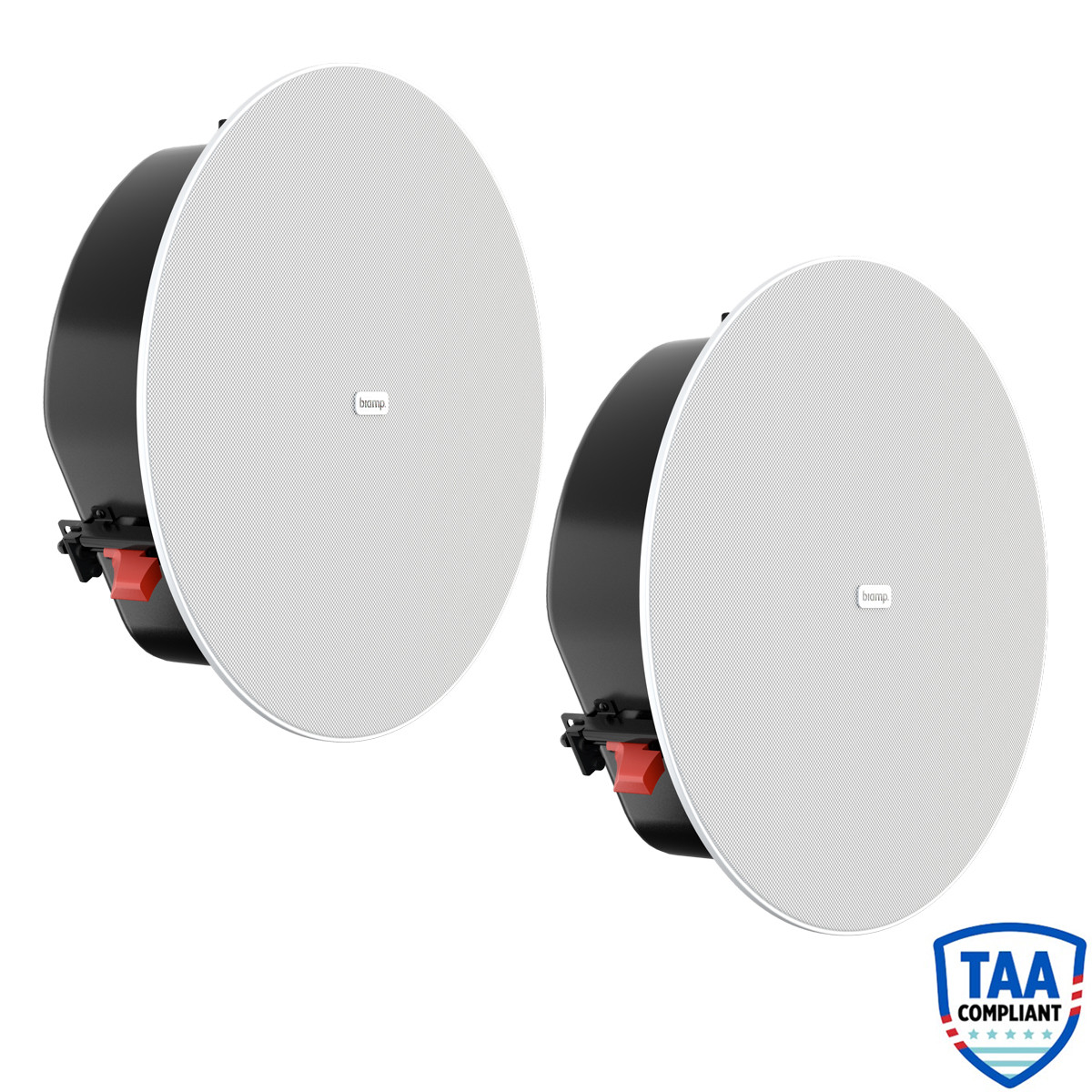

Biamp Desono DX-IC6LP-TAA 6.5" 2-Way Low Profile Ceiling Mount Loudspeaker - White Pair

Part # 920-10300-20100
Model # Desono DX-IC6LP-TAA White
The Biamp Desono DX-IC6LP-TAA is a low-profile 6.5" ceiling speaker with 60W power, 8 Ω/70V/100V operation, Zoom certification, SpringLock™ clamps, edgeless grille, and TAA compliance. Sold in pairs.

Availability: Special Order (Return Conditions Apply)

Description

Details

Biamp Desono DX-IC6LP-TAA 6.5" 2-Way Low-Profile Ceiling Mount Loudspeakers

The TAA-compliant Desono DX-IC6LP-TAA is a low profile, shallow design - only 3.91 inches (100 mm) deep. It provides high quality paging and musical performance suitable for numerous applications where the importance of sonic quality is paired with the need for a low profile installation. The DX-IC6LP-TAA system is capable of meeting demanding needs at a cost usually associated with much smaller loudspeakers. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC6LP-TAA apart from other products in its size and price range. Featuring a genuine coaxial, acoustically-aligned driver set with separate magnets for the LF and HF drivers that minimize distortion. Additionally, the integrated HF waveguide provides the widest and most consistent coverage in its class, ensuring all listeners are in the "sweet spot"

The DX-IC6LP-TAA complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Features

Features

  • Certified for use with Zoom software
  • Low profile, shallow design - only 3.91 inches (100 mm) deep
  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet Chicago plenum air space requirements
  • Available in standard white
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
Specification
Rated Maximum SPLPeak 115 dB Continuous 103 dB (Processed)
Nominal Maximum SPLPeak 109 dB Continuous 103 dB
Nominal Continuous Power Handling22 V (60 W @ 8 Ω)
Operating ModePassive with DSP
Operating EnvironmentIndoor
Operating Range (-10 dB)63 Hz to 20 kHz
Nominal Beamwidth (H x V)145°, conical
DriversLF 1 x 6.5" (165 mm) treated paper cone
HF 1 x 1.0" (25 mm) treated soft dome driver with waveguide
Sensitivity87 dB
Autoformer70V: 60W, 30W, 15W, 7.5W, 3.75W
100V: 60W, 30W, 15W, 7.5W
Recommended AmplifiersPassive - 60W - 120W into 8 Ω, (22 V - 31 V)
Input Connection4-position Euroblock connector
ControlsFront-face wattage / low impedance selector switch
Mounting Provisions3 SpringLock mounting clamps with 3-inch grip range
CertificationsETL listed to comply with UL1480A, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Included AccessoriesC-Ring supporting plate, tile support bridge rails, grilles, paint masks, cut-out template, wire strain-relief fittings
Dimensions (Dia x D)13.41" (341 mm) x 3.91" (99 mm)
Net Weight10.8 lbs (4.9 kg)
