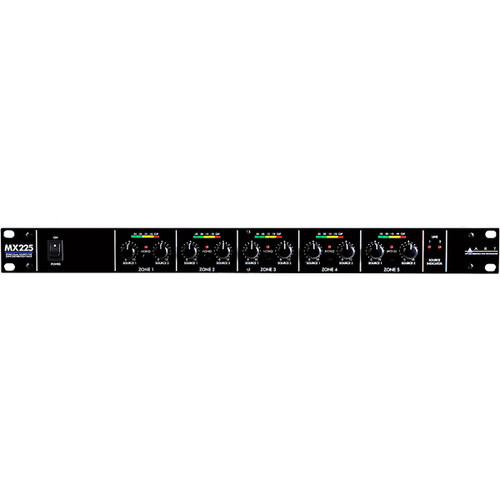

The MX225U is designed for remote volume control of multiple amplifiers or powered speakers in a distributed audio system. Two stereo sources are available to each of five output zones. Each source input pair handles separate left and right balanced line level signals. Each output zone features independent level control from inputs 1 and 2, stereo/mono selector with mono indicator, LED level metering, and left and right balanced line level zone outputs. All audio connections are balanced XLR. The built-in power supply and single high 19" rack mount format allow for easy installation and reliable operation.
| Input Connections | XLR-F balanced (x4) |
|---|---|
| Output Connections | XLR-M balanced (x10) |
| Input Impedance | 47k Ohms |
| Output Impedance | 200 Ohms |
| Maximum Input Level | +20dBu balanced |
| Maximum Output Level | +24dBu balanced |
| Maximum Gain | +6dB |
| Signal to Noise Ratio | >90dB typical |
| THD | .05% Typical |
| Power Requirements | 105 to 125 VAC / 50-60Hz, 15 Watts typical |
| Dimensions (H x W x D) | 1.75" (44.5 mm) x 19" (483 mm) x 7.25" (184 mm) |
| Weight | 5.34 lbs (2.42 kg) |
