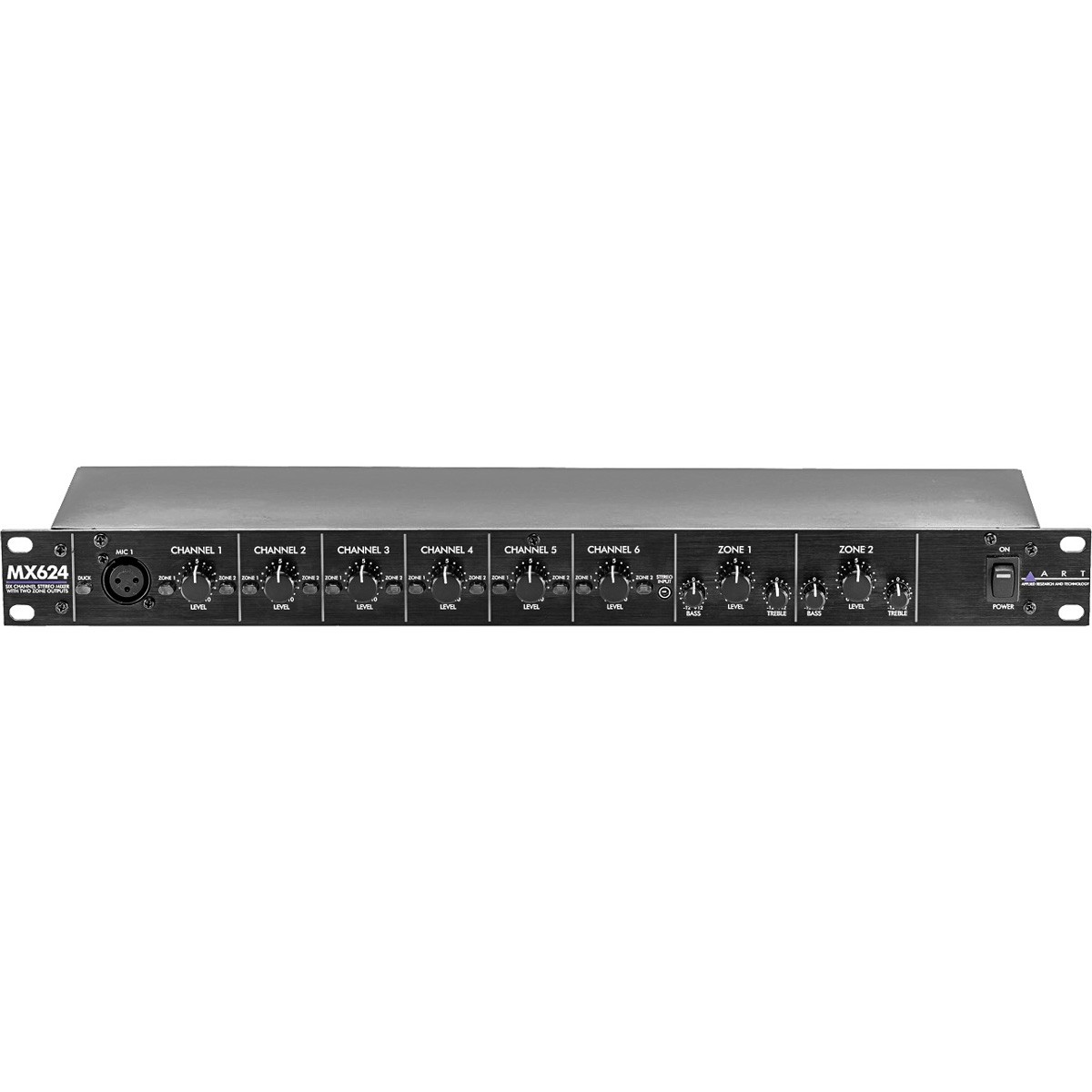

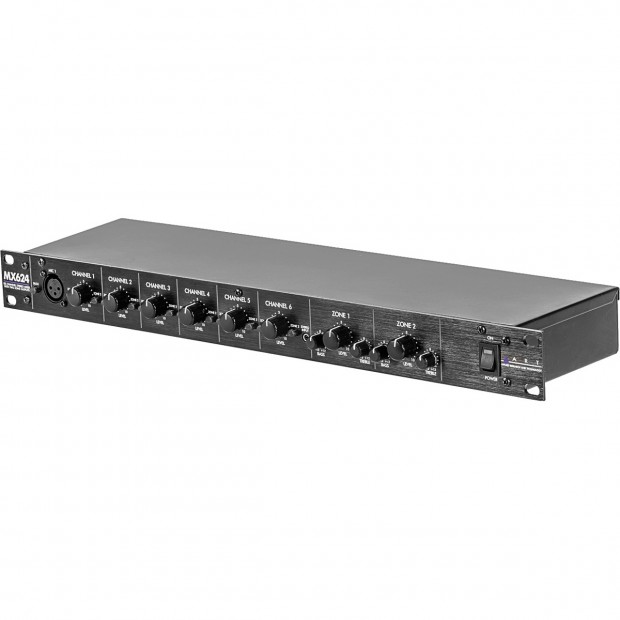

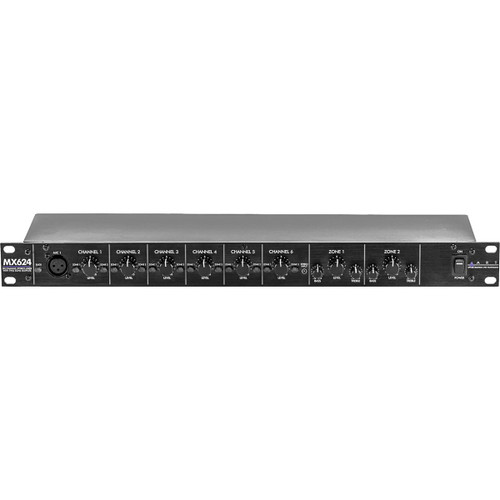

The ART MX624 six-channel stereo mixer with two zone outputs is a versatile rack mount mixer that combines six independent input channels and routes them to two stereo zone outputs.
The first channel can be used to control, via a front-panel switch, a ducking feature for all other channels making it an ideal solution for paging systems. All six channels can accept unbalanced stereo line-level signals. 48v phantom power can be independently assigned for each mic channel. Each channel has independent level controls and can be independently routed to either zone output, both or neither. Separate level, bass and treble controls adjust the sound of each zone output. Two bus inputs allow patching of multiple units when more input channels are needed.
The ART MX624 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.
| Input Connections | XLR female balanced (mic, channels 1-3) RCA unbalanced (line inputs 1-6, left and right) 1/4" TRS unbalanced stereo (bus inputs, zone 1 and 2) |
|---|---|
| Output Connections | 1/4" TS unbalanced (zone 1 and 2 out, left and right) |
| Input Impedance | 4k Ω (mic), 10k Ω (Line), 10k Ω (Bus) |
| Output Impedance | 200 Ω (zone 1 & 2) |
| Frequency Response | 20 Hz - 20 kHz (+0, -1 dB) (channels 1-6 in, zone out) |
| Total Harmonic Distortion | |
| Phase Response | All connections are phase coherent |
| Signal to Noise Ratio | >90 dB typical (Ref 0dBu) |
| CMRR | >43 dB typical |
| Maximum Input Level | -4 dBu, +16 dBu with 20 dB pad (mic), >25 dBu (line) |
| Maximum Output Level | +20 dBu (unbalanced) |
| Maximum Gain | 57 dB (mic), 31 dB (line) |
| Ducking Threshold | -49.5 dBv (adjustable via rear-panel dipswitches) |
| Ducking Depth | 15 dB |
| Tone Controls | +/-12 dB @ 100 Hz & 10 kHz |
| Phantom Power | Switch selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg |
| Power Requirements | 85-125 VAC, 50-60 Hz, |
| Dimensions (H x W x D) | 1.75" (44.5 mm) x 19" (483 mm) x 6" (152 mm) |
| Weight | 4.9 lbs (2.2 kg) |
