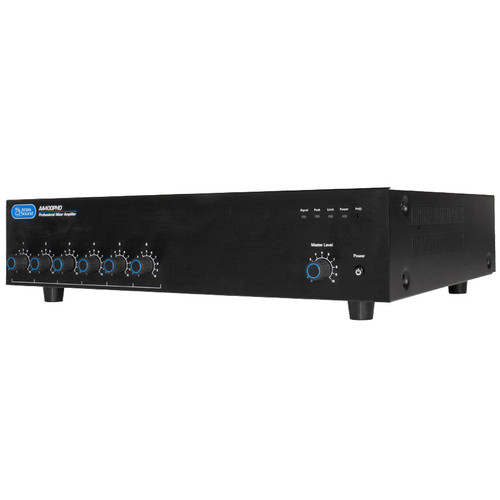

AtlasIED AA400PHD 6-Input 400W Mixer Amplifier
AtlasIED AA400PHD 6-Input 400W Mixer Amplifier
AtlasIED AA400PHD 6-Input 400W Mixer Amplifier
By AtlasIED

AtlasIED AA400PHD 6-Input 400W Mixer Amplifier

Write a Review
Part #:
AA400PHD
Model #:
AA400PHD
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The AtlasIED AA400PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

Description

AtlasIED AA400PHD 6-Input 400W Mixer Amplifier

The AA400PHD is a six-input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With four microphone/line inputs and two stereo line inputs, the AA400PHD will accommodate a variety of input sources, including paging microphones, media players, and digital music receivers.

What Sets the AAPHD Series Apart?

The AA400PHD includes a patent-pending automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected, and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.

Features
  • 400W into 25V/70.7V and 4Ω Loads
  • Automated Diagnostic System Test (Push Here Diagnostic®)
  • Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
  • Input Assignable Zone 2 Output
  • Remote Level Control
  • Remote Input Select (RIS)
  • Line Output
  • Preamp In for External Processors
  • Variable Mute Sensitivity Control for Input 1
  • Contact Closure Mute Terminals
  • Optional Rack Mount Kit Available - Model AARMK2-0

Specifications
Frequency Response 50Hz - 15kHz
Connector Type 4 Position Phoenix 3.5 mm Pitch
Power Output Max. Average Power @ 50Hz - 15kHz with .5% THD, 4Ω 400W RMS
Voltage Compatibility 110V - 120V
Dimensions (H x W x D) 3.66" (93 mm) x 16.54" (420 mm) x 14.6" (422 mm)
Weight 34 lbs (15.4 kg)
Shipping Weight 37.2 lbs (16.87 kg)
